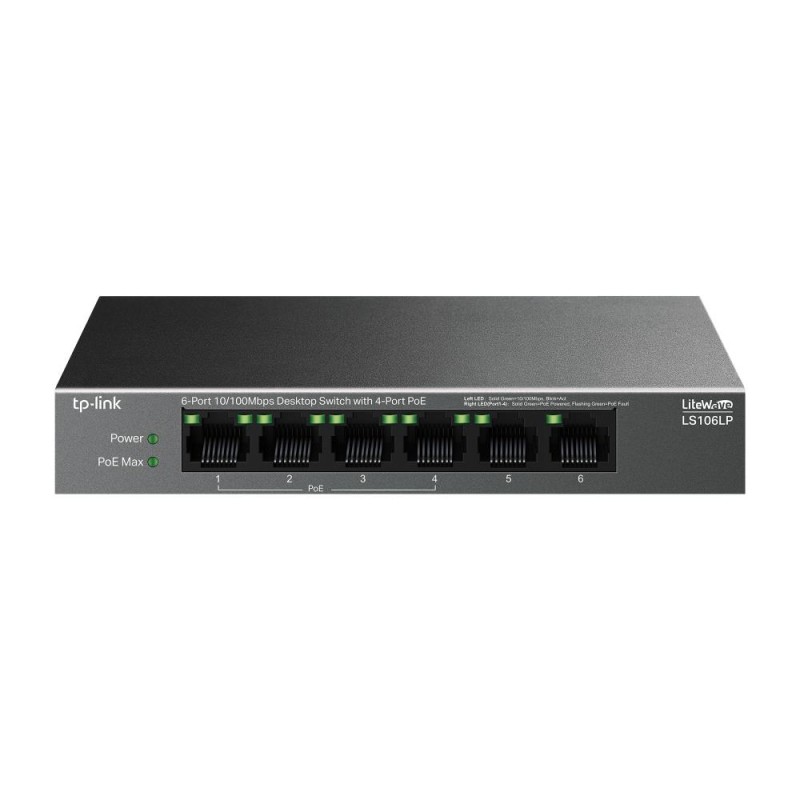

Switch|TP-LINK|LS106LP|PoE ports 4|LS106LP

Lisainfo

Müüja koduleht

https://www.tp-link.com/za/business-networking/soho-switch-poe/ls106lp/ overview

Mudeli nimi

LS106LP

Garantija

60

Category Code

SWI

Unit Box Height

0.135

Unit Box Length

0.095

Unit Box Width

0.19

Units per Shipping Box

1

Unit Calculated Volume

0.002437 cubm

Unit Calculated Weight

0.6 kg

Summary

TP-Link LiteWave LS106LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: I

Weight & dimensions (Width)

158 mm

Weight & dimensions (Depth)

101 mm

Weight & dimensions (Height)

25 mm

Power (Power source)

DC/PoE

Packaging data (Package type)

Box

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (AC input frequency)

50 Hz

Power (AC input voltage)

220 V

Power (Power consumption (max))

47.76 W

Design (Number of fans)

0 fan(s)

Certificates (Certification)

CE, FCC, RoHS

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Power (Input current)

0.81 A

Packaging content (User guide)

Yes

Design (LED indicators)

Yes

Network (Copper ethernet cabling technology)

100BASE-TX/10BASE-T

Network (Networking standards)

IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Management features (Switch type)

Unmanaged

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

6

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Fast Ethernet (10/100)

Network (10G support)

No

Data transmission (Forwarding rate)

0.8928 Mpps

Data transmission (Switching capacity)

1.2 Gbit/s

Power (DC input voltage)

53.5 V

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Flow control support)

Yes

Network (Cable types supported)

Cat3/Cat4/Cat5/Cat5e

Data transmission (MAC address table)

2000 entries

Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity)

4

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames support)

Yes

Design (Wall mountable)

Yes

Network (Auto-negotiation)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

162.38 BTU/h

Performance (Fanless)

Yes

Management features (Quality of Service (QoS) support)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

15.4 W

Eriviited

ean13

4895252504606

MPN

1420726
