Kirjeldus

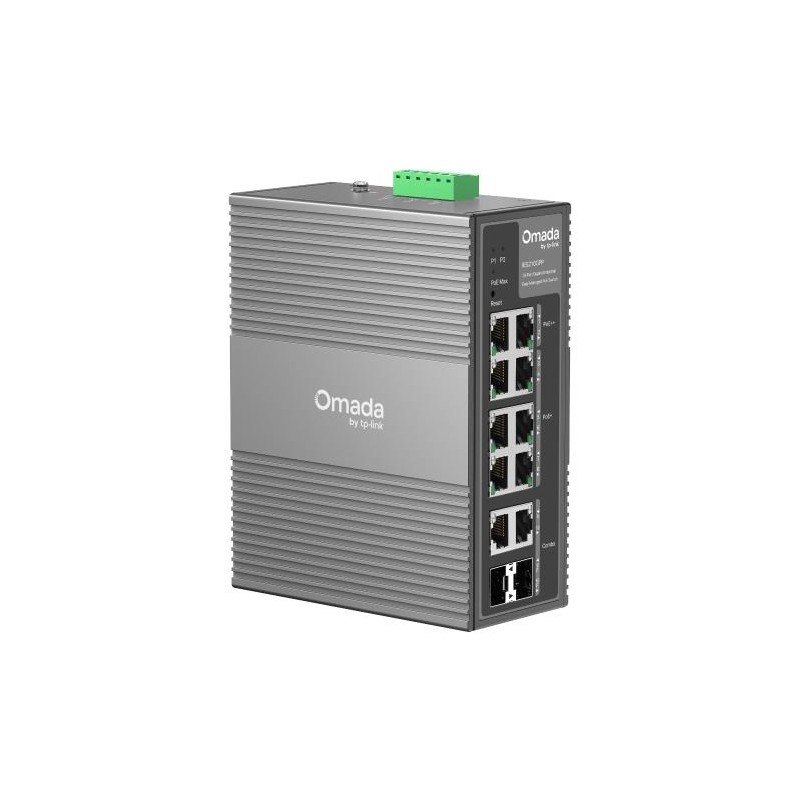

Omada Industrial 10-Port Industrial-Grade Protection Built for Harsh Environments
6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+) 65W Power Budget, with up to 30W for each PoE port Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features Centralised Cloud Management via the web or the Omada app Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking Automatic Loop Prevention, VLAN, and IGMP Snooping Fanless design for silent operation Durable metal casing and desktop/wall mounting design
Üldine informatsioon
Tootekood
IES210GPP
Tarneaeg 2-5 tööpäeva.
1 Ühik
Lisainfo
Müüja koduleht
https://www.omadanetworks.com/au/business-networking/omada-switch-easy-managed/ies210gpp/ highlights
Mudeli nimi
IES210GPP
Garantija
60
Mudel
IES210GPP
Category Code
SWI
Unit Box Height
0.095
Unit Box Length
0.195
Unit Box Width
0.19
Units per Shipping Box
1
Unit Calculated Volume
0.00352 cubm
Unit Calculated Weight
1.44 kg
Summary
TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address
Weight & dimensions (Width)
155 mm
Weight & dimensions (Depth)
120 mm
Weight & dimensions (Height)
60 mm
Power (Power source)
DC
Design (Product colour)
Grey
Design (Form factor)
DIN rail
Design (LED indicators)
Yes
Network (Ethernet LAN data rates)
10,100,1000 Mbit/s
Management features (Web-based management)
Yes
Network (Networking standards)
IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Management features (Cloud-managed)
Yes
Management features (Switch type)
Managed
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
8
Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
Gigabit Ethernet (10/100/1000)
Network (10G support)
No
Data transmission (Forwarding rate)
14.88 Mpps
Data transmission (Switching capacity)
20 Gbit/s
Design (Rack mounting)
Yes
Power (DC input voltage)
12 - 57 V
Power over Ethernet (PoE) (Power over Ethernet (PoE))
Yes
Network (Broadcast storm control)
Yes
Network (Flow control support)
Yes
Network (Link aggregation)
Yes
Network (Port mirroring)
Yes
Network (VLAN support)
Yes
Security (DHCP features)
DHCP client
Data transmission (MAC address table)
8000 entries
Data transmission (Packet buffer memory)
4000 MB
Network (Auto MDI/MDI-X)
Yes
Data transmission (Jumbo frames)
15000
Data transmission (Jumbo frames support)
Yes
Network (Auto-negotiation)
Yes
Data transmission (Store-and-forward)
Yes
Management features (Quality of Service (QoS) support)
Yes
Network (Number of VLANs)
4000
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)
240 W
Security (Loop protection)
Yes
Security (IGMP snooping)
Yes
Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)
6
Multicast features (Multicast support)
Yes
Ports & interfaces (Combo SFP ports quantity)
2
Power over Ethernet (PoE) (Power over Ethernet 4PPoE (PoE++) ports quantity)
2
Eriviited
ean13
1210002602112
MPN
1448645
