Switch|TP-LINK|Desktop/pedestal|16x10Base-T / 100Base-TX|PoE+ ports 16|TL-SL1218P

Tootekood TL-SL1218P

Kaubamärk TP-LINK

130,27 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 2 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

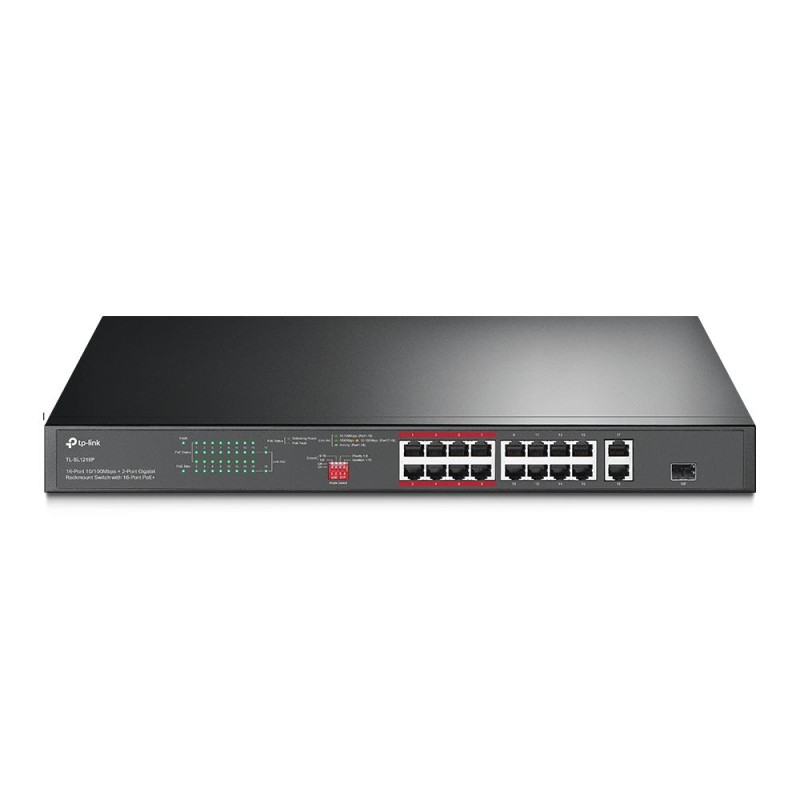

Professional 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Ideal for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

Ideal for IP Surveillance —Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring
2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot
High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports
Up to 250 m data and power transmission under extend mode specially designed for surveillance system
Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor
Isolation Mode allows one-click client traffic separation for higher security and performance
Easy to use, with no configuration and installation needed

Üldine informatsioon

Kaubamärk TP-LINK

Tootekood TL-SL1218P

Tarneaeg 2-5 tööpäeva. 2 Tooted

Lisainfo

Müüja koduleht: https://www.tp-link.com/uk/business-networking/poe-switch/tl-sl1218p/
Garantija: 60
Mudel: TL-SL1218P
Category Code: SWI
Unit Box Height: 0.08
Unit Box Length: 0.53
Unit Box Width: 0.25
Units per Shipping Box: 6
Unit Calculated Volume: 0.01335 cubm
Unit Calculated Weight: 3.06 kg
Summary: TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount PoE Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8
Weight & dimensions (Width): 440 mm
Weight & dimensions (Depth): 180 mm
Weight & dimensions (Height): 44 mm
Packaging data (Package width): 250 mm
Packaging data (Package depth): 528 mm
Packaging data (Package height): 80 mm
Packaging data (Package weight): 2800 g
Packaging content (Quick start guide): Yes
Packaging content (Cables included): AC
Power (Power source): AC
Logistics data (Harmonized System (HS) code): 85176990
Operational conditions (Operating temperature (T-T)): 0 - 50 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Design (Product colour): Black
Power (AC input frequency): 50 - 60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (max)): 172.8 W
Design (Housing material): Metal
Design (Number of fans): 2 fan(s)
Certificates (Certification): CE, FCC, RoHS
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Form factor): 1U
Design (LED indicators): Yes
Network (Networking standards): IEEE 802.3af/IEEE 802.3at/IEEE 802.3x
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 18
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Data transmission (Forwarding rate): 5.36 Mpps
Data transmission (Switching capacity): 7.2 Gbit/s
Design (Rack mounting): Yes
Power (Power supply included): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Ports & interfaces (Fast Ethernet (copper) ports quantity): 16
Network (Cable types supported): Cat3/Cat4/Cat5/Cat5e/Cat6
Data transmission (MAC address table): 8000 entries
Data transmission (Packet buffer memory): 4.1 MB
Network (Auto MDI/MDI-X): Yes
Data transmission (Jumbo frames): 10000
Data transmission (Jumbo frames support): Yes
Network (Auto-negotiation): Yes
Operational conditions (Heat dissipation): 589.25 BTU/h
Ports & interfaces (Gigabit Ethernet (copper) ports quantity): 2
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 150 W
Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port): 30 W
Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity): 16
Management features (Traffic classification): Yes
Ports & interfaces (Combo SFP ports quantity): 1
