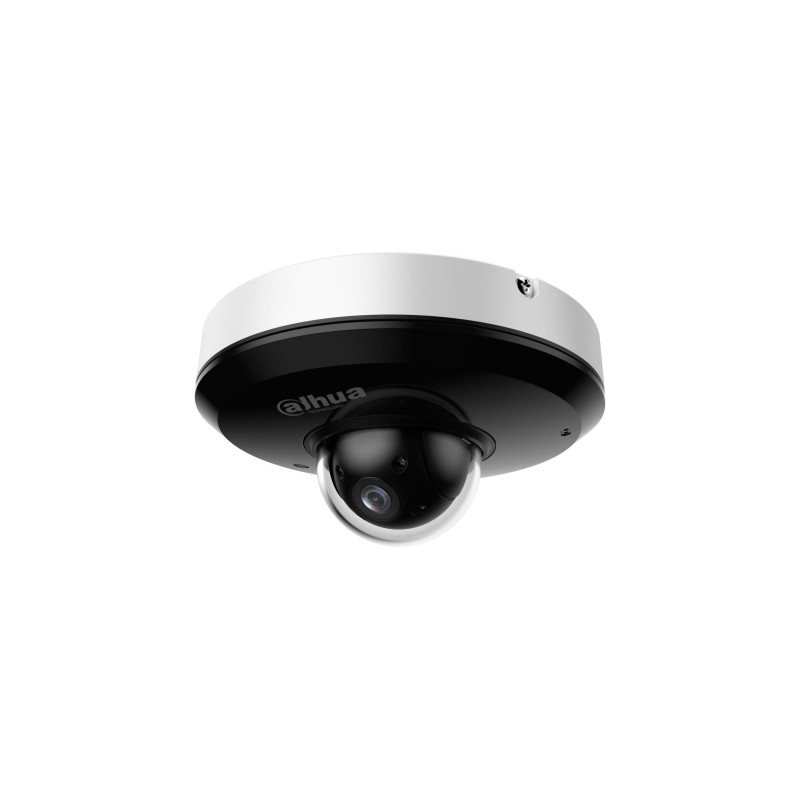

Valvekaamera 4MP PTZ DOME/SD1A404DB-GNY DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD1/SD1A404DB-GNY

Garantija

36

Mudel

SD1A404DB-GNY

Category Code

FNC

Unit Box Height

0.135

Unit Box Length

0.155

Unit Box Width

0.155

Units per Shipping Box

1

Unit Calculated Volume

0.003243 cubm

Unit Calculated Weight

0.74 kg

Summary

Dahua Technology SD1A404DB-GNY. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0005 lx, Tilt angle rang

Weight & dimensions (Height)

65.7 mm

Weight & dimensions (Weight)

500 g

Packaging data (Package weight)

700 g

Performance (Certification)

CE-EMC: EN 55032 EN 61000-3-3 EN 61000-3-2 EN 50130-4 EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4

Operational conditions (Operating temperature (T-T))

-30 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

128 mm

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

Black/White

Power (Power consumption (max))

13 W

Power (Power consumption (typical))

4 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Dome

Camera (Camera shutter speed)

1 - 1/30000 s

Design (LED indicators)

Yes

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Storage (RAM capacity)

512 MB

Design (IK code)

IK08

Design (International Protection (IP) code)

IP66

Design (Mounting type)

Ceiling/wall

Performance (Connectivity technology)

Wired

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Image sensor (Optical sensor size)

1/28 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

20 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

2560 x 1440 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

2D noise reduction,3D noise reduction

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Abandoned object/Crossing line/Face detection/Missing object/Tripwire

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

2.8 - 12 mm

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.0005 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

2.7

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Image stabilizer)

Yes

Video (Video compression formats)

H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG

Camera (Pan range)

0 - 355

Camera (Tilt angle range)

5 - 90

Camera (White balance)

Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576

Video (Video streaming)

Yes

Network (Supported network protocols)

FTP RTMP IPv6 Bonjour IPv4 DNS RTCP PPPoE NTP RTP 802.1x HTTPS SNMP TCP/IP DDNS UPnP NFS ICMP UDP IGMP HTTP SSL DHCP SMTP Qos RTSP ARP

Storage (ROM capacity)

256 MB

Management features (Management software)

DMSS DSS Pro

Lens system (Closest focusing distance)

0.2 m

Network (Number of users)

20 user(s)

Management features (Web-based management)

Yes

Lens system (Detect distance (wide))

240 m

Lens system (Identify distance (wide))

24 m

Lens system (Observe distance (wide))

94.8 m

Lens system (Recognize distance (wide))

48 m

Performance (PTZ control)

Yes

Performance (PTZ modes)

8 Tour/Preset point

Camera (Pan manual speed)

0.1 - 70 /sec

Camera (Pan preset speed)

0.1 /sec

Camera (Tilt manual speed)

0.1 - 30 /sec

Camera (Tilt preset speed)

0.1 /sec

Lens system (Auto focus)

Yes

Panoramic camera (Signal-to-Noise Ratio (SNR) (panoramic camera))

55 dB

Lens system (Minimum aperture number)

1.8

Performance (Preset points)

Yes

Lens system (Focus)

Motorized/Manual

Performance (PTZ protocols)

DH-SD

Lens system (Digital zoom)

16 x

Lens system (Optical zoom)

4 x

Night vision (Infra-red LEDs life)

3 h

Audio (Audio detection)

Yes

Eriviited

ean13

6923172590367

MPN

1425268
