Kirjeldus
4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2688 × 1520) @25/30 fps Built-in multi-core light, the max. IR distance is 80 m and the max. warm light distance is 60 m ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation IP67 and IK10 protection
Üldine informatsioon
Tootekood
IPC-HFW5459T1-ASE-PV-0280B-PRO-BLACK
Tarneaeg 2-5 tööpäeva.
5 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Pro/4MP/IPC-HFW5459T1-ASE-PV-PRO
Garantija
36
Category Code
FNC
Unit Calculated Volume
0.003657 cubm
Unit Calculated Weight
1.2 kg
Summary

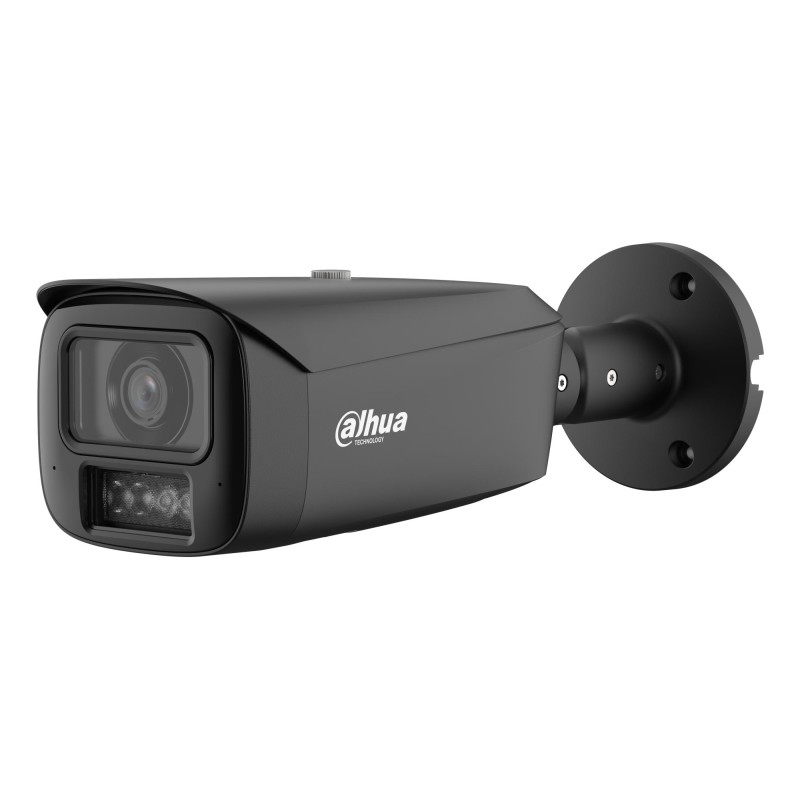

Dahua Technology WizMind IPC-HFW5459T1-ASE-PV-0280B-PRO-Black. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.00
Weight & dimensions (Width)
94.4 mm
Weight & dimensions (Height)
84.7 mm
Weight & dimensions (Weight)
1090 g
Packaging data (Package weight)
1390 g
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
Black
Power (Power consumption (max))
21.6 W
Power (Power consumption (typical))
4.1 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal/Plastic
Packaging content (Manual)
Yes
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Bullet
Weight & dimensions (Length)
288.4 mm
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
1000 GB
Power (Power source type)
DC,PoE
Sustainability (Compliance certificates)
CE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in speaker(s))
Yes
Audio (Built-in microphone)
Yes
Storage (RAM capacity)
2048 MB
Audio (Number of microphones)
2
Network (Ethernet interface type)
Fast Ethernet
Design (IK code)
IK10
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/Wall/Pole
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
135
Camera (Lens viewing angle, horizontal)
111
Camera (Lens viewing angle, vertical)
60
Image sensor (Optical sensor size)
1/1.8 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
80 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2688 x 1520 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Intrusion/People counting/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Lens system (Fixed focal length)
2.8 mm
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0.0001 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1
Video (Gain control type)
Auto/Manual
Ports & interfaces (RS-485 ports)
1
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 90
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711 -law/G.711 A-law/G.723/G.726/PCM
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Storage (ROM capacity)
4096 MB
Video (Smart IR)
Yes
Lens system (Closest focusing distance)
2 m
Night vision (Number of illumination LEDs)
4
Network (Number of users)
20 user(s)
Security (HTTPS encryption)
Yes
Security (Mirror)
Yes
Performance (Dynamic range)
140 dB
Lens system (Detect distance)
56.6 m
Lens system (Identify distance)
5.7 m
Lens system (Observe distance)
22.6 m
Lens system (Recognize distance)
11.3 m
Video (Video recording)
Yes
Network (Networking standards)
IEEE 802.1x/IEEE 802.3at
Security (Network access storage (NAS))
Yes
Security (Human and vehicle targets classification)
Yes
Security (Digital watermark)
Yes
Performance (People counting function)
Yes
