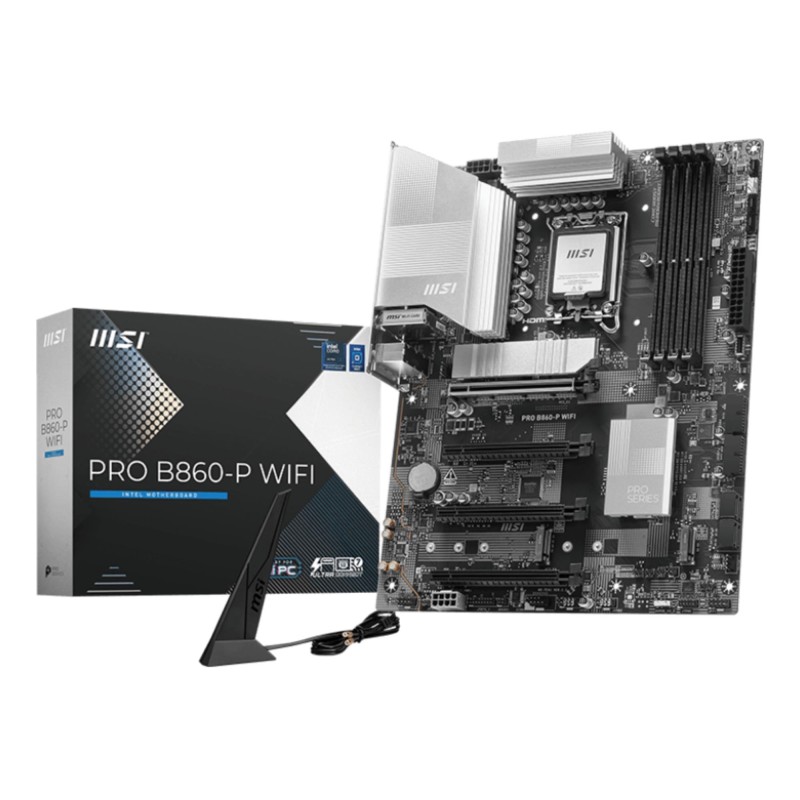

Mainboard MSI Intel B860 Express LGA1851 ATX Memory DDR5 Memory slots 4 2xPCI-Express 4.0 1x 1xPCI-Express 4.0 4x 1xPCI-Express

Lisainfo

Müüja koduleht

https://www.msi.com/Motherboard/PRO-B860-P-WIFI

Garantija

36

Mudel

PRO B860-P WIFI

Category Code

MBI

Unit Box Height

0.07

Unit Box Length

0.34

Unit Box Width

0.27

Units per Shipping Box

10

Unit Calculated Volume

0.008299 cubm

Unit Calculated Weight

1.69 kg

CnCode

84733020

Summary

MSI PRO B860-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported s

Weight & dimensions (Width)

243.84 mm

Weight & dimensions (Depth)

304.8 mm

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.4

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Features (Product colour)

Black

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Features (Component for)

PC

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Supported processor sockets)

LGA 1851

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

8800 MHz

Memory (Supported memory clock speeds)

4800/6400/8800 MHz

Memory (Supported memory types)

DDR5-SDRAM

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

7

Storage controllers (Supported storage drive interfaces)

M.2,Micro SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Internal I/O (CPU fan connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (USB 2.0 connectors)

4

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

4

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

2

Network (Ethernet interface type)

5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B860

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

3

Expansion slots (PCI Express x16 (Gen 4.x) slots)

3

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Features (Audio chip)

Realtek ALC897

Processor (Maximum internal memory supported by processor)

256 GB

Internal I/O (Total number of SATA connectors)

4

BIOS (ACPI version)

6.5

BIOS (System Management BIOS (SMBIOS) version)

3.7

Memory (ECC сompatibility)

Non-ECC

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Number of RGB LED pin headers)

3

Internal I/O (Number of water pump connectors)

1

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

2280

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Expansion slots (3rd M.2 largest key size)

2280

Eriviited

ean13

4711377286572

MPN

1431307
