Kirjeldus

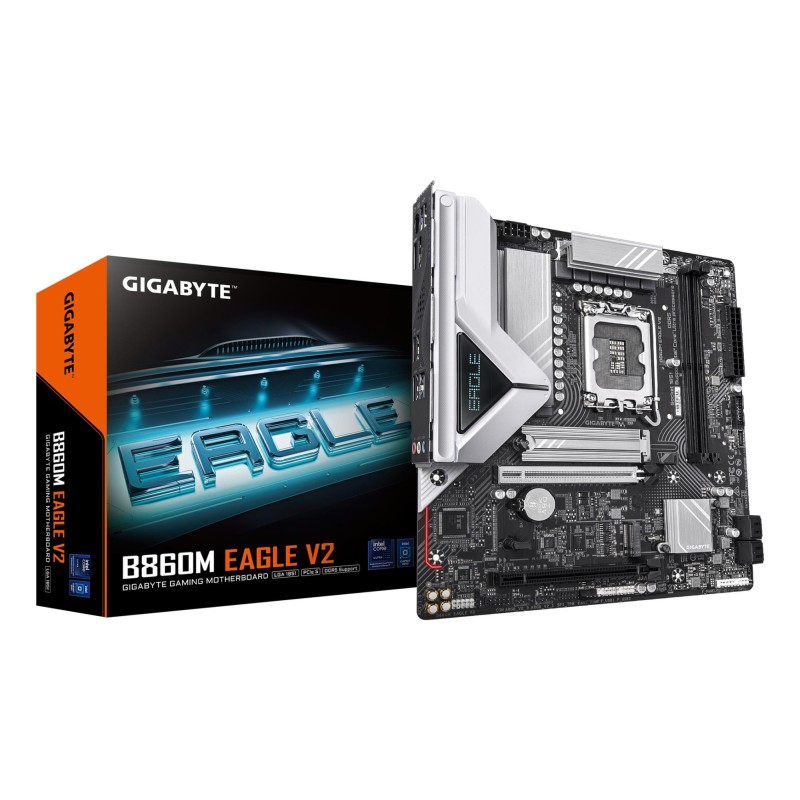

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Supports Intel Core Ultra processors (Series 2) Digital 6+1+2 phases VRM solution Dual Channel DDR5: 2*DIMMs with XMP Memory Module Support D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive: Provides optimal and customized BIOS preset profile for users EZ-Latch: PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click: M.2 heatsinks with screwless design Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking: 2.5GbE LAN
Üldine informatsioon
Tootekood
B860M EAGLE V2
Tarneaeg 2-5 tööpäeva.
20 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com/
Garantija
36
Mudel
B860M EAGLE V2
Category Code
MBI
Unit Box Height
0.07
Unit Box Length
0.271
Unit Box Width
0.267
Units per Shipping Box
10
Unit Calculated Volume
0.006278 cubm
Unit Calculated Weight
1.2 kg
CnCode
84733020
Summary
GIGABYTE B860M EAGLE V2 Motherboard - Intel Core Ultra Series CPUs, 6+1+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor s
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
244 mm
Weight & dimensions (Depth)
225 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
265 mm
Packaging data (Package depth)
265 mm
Packaging data (Package height)
54 mm
Packaging data (Package weight)
1198 g
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Other features (Weight)
1012 g
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Dark brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Packaging content (Screws included)
Yes
Processor (Processor manufacturer)
Intel
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory)
128 GB
Memory (Memory channels)
Dual-channel
Network (LAN controller)
Realtek RTL8125
Expansion slots (PCI Express x16 (Gen 5.x) slots)
1
Features (Cooling type)
Passive
Battery (Battery weight)
3 g
Processor (Compatible processor series)
Intel Core Ultra (Series 2)
Processor (Processor socket)
LGA 1851 (Socket V1)
Processor (Supported processor sockets)
LGA 1851
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
2
Memory (Supported memory clock speed (max))
9066 MHz
Memory (Supported memory clock speeds)
5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
6
Storage controllers (Supported storage drive interfaces)
M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
2
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (S/PDIF out connector)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Line-in)
Yes
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (PS/2 ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
3
Network (Ethernet interface type)
2.5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel B860
Features (Motherboard chipset family)
Intel
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
2
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Rear panel I/O ports (DisplayPort version)
2.1
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Features (Audio chip)
Realtek ALC897
Features (Power source type)
ATX
Graphics (DirectX version)
12.0
Features (PC health monitoring)
Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
ECC & Non-ECC
Memory (Maximum internal memory per slot)
64 GB
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2160 pixels
Internal I/O (Number of CPU fan connectors)
2
Internal I/O (Number of RGB LED pin headers)
3
Internal I/O (Number of water pump connectors)
2
Internal I/O (Serial port headers)
1
Expansion slots (1st M.2 highest PCI Express generation)
5.0
Expansion slots (1st M.2 largest key size)
2280
Expansion slots (2nd M.2 highest PCI Express generation)
4.0
Expansion slots (2nd M.2 largest key size)
2280
Internal I/O (Number of EPS power connectors (8-pin))
1
Eriviited
ean13
4719331869656
MPN
1450929
