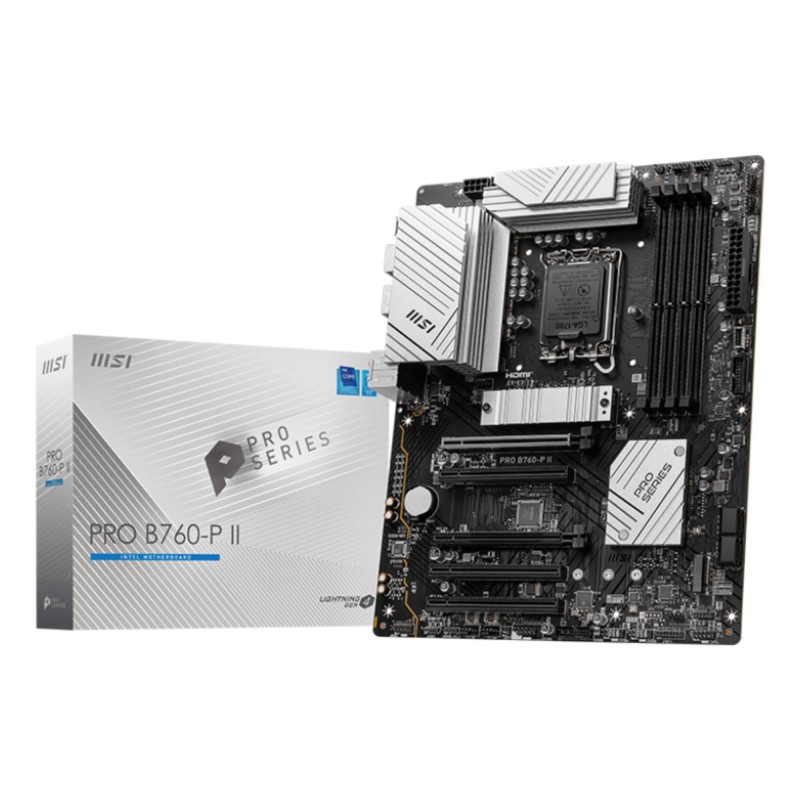

Mainboard|MSI|Intel B760 Express|LGA1700|Memory DDR5|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|2

Tootekood PROB760-PII

Kaubamärk MSI

131,02 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 30 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Intel Turbo USB 10Gbps: Powered by Intel USB 10Gbps controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Üldine informatsioon

Kaubamärk MSI

Tootekood PROB760-PII

Tarneaeg 2-5 tööpäeva. 30 Tooted

Lisainfo

Müüja koduleht: https://www.msi.com/Motherboard/PRO-B760-P-II/Overview
Garantija: 36
Mudel: PRO B760-P II
Category Code: MBI
Unit Box Height: 0.27
Unit Box Length: 0.345
Unit Box Width: 0.07
Units per Shipping Box: 10
Unit Calculated Volume: 0.007252 cubm
Unit Calculated Weight: 1.51 kg
Summary: MSI PRO B760-P II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB
Weight & dimensions (Width): 243.84 mm
Weight & dimensions (Depth): 304.8 mm
Packaging content (Cables included): SATA
Network (Ethernet LAN): Yes
Network (Wi-Fi): No
Packaging content (Drivers included): Yes
Processor (Processor manufacturer): Intel
Features (Component for): PC
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Network (LAN controller): Realtek RTL8125-BG
Expansion slots (PCI Express x4 (Gen 4.x) slots): 1
Processor (Compatible processor series): Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Pentium Gold
Processor (Processor socket): LGA 1700
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 7000 MHz
Memory (Supported memory clock speeds): 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 6
Storage controllers (Supported storage drive interfaces): PCI Express 4.0,SATA III
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (S/PDIF out connector): Yes
Internal I/O (USB 2.0 connectors): 4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 4
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): Intel B760
Features (Motherboard chipset family): Intel
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots): 2
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
BIOS (Clear CMOS button): Yes
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Internal I/O (Chassis intrusion connector): Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (DisplayPort version): 1.4
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Features (Audio chip): Realtek ALC897
Processor (Maximum internal memory supported by processor): 256 GB
BIOS (ACPI version): 6.4
BIOS (Clear CMOS jumper): Yes
BIOS (System Management BIOS (SMBIOS) version): 3.5
Memory (ECC сompatibility): Non-ECC
Expansion slots (PCI Express x1 (Gen 4.x) slots): 2
Expansion slots (PCI Express x1 (Gen 3.x) slots): 1
Internal I/O (Power fan connector): Yes

Eriviited

ean13: 4711377193887
MPN: 1414514
