Kirjeldus

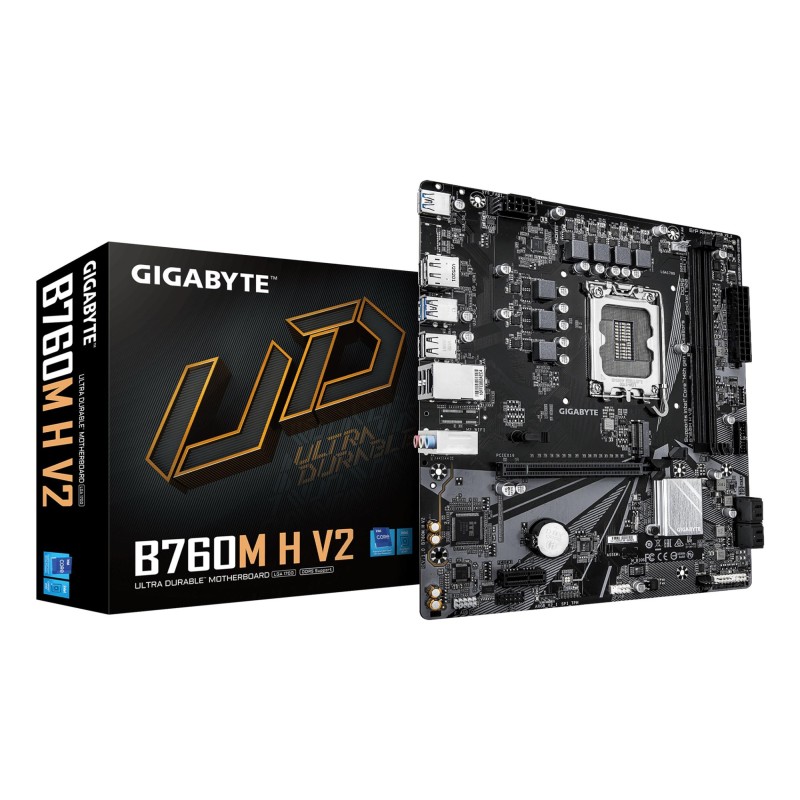

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance: Hybrid 5+1+1 Phases VRM Solution Dual Channel DDR5: 2*DIMMs XMP Memory Module Support Next Generation Storage: PCIe 4.0 M.2 Connectors Fast Networks: GbE LAN EZ-Latch: PCIe x16 Slot with Quick Release Design Extended Connectivity: DP, HDMI Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Üldine informatsioon
Tootekood
B760M H V2 1.0
Tarneaeg 2-5 tööpäeva.
4 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com/
Garantija
36
Mudel
B760M H V2
Category Code
MBI
Unit Box Height
0.26
Unit Box Length
0.265
Unit Box Width
0.055
Units per Shipping Box
10
Unit Calculated Volume
0.004669 cubm
Unit Calculated Weight
0.85 kg
Summary
GIGABYTE B760M H V2 Motherboard - Supports Intel Core 14th Gen CPUs, 5+1+1 Phases Digital VRM, up to 8000MHz DDR5 (O.C.), 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
244 mm
Weight & dimensions (Depth)
220 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
265 mm
Packaging data (Package depth)
265 mm
Packaging data (Package height)
54 mm
Packaging data (Package weight)
850 g
Battery (Battery capacity)
220 mAh
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Other features (Weight)
770 g
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Dark brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Packaging content (Screws included)
Yes
Logistics data (Country of origin)
China
Processor (Processor manufacturer)
Intel
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version)
Memory (Maximum internal memory)
128 GB
Memory (Memory channels)
Dual-channel
Network (LAN controller)
Realtek RTL8111H
Features (Cooling type)
Passive
Battery (Battery weight)
3 g
Processor (Compatible processor series)
Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Celeron
Processor (Processor socket)
LGA 1700
Processor (Supported processor sockets)
LGA 1700
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
2
Memory (Supported memory clock speed (max))
8000 MHz
Memory (Supported memory clock speeds)
4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
5
Storage controllers (Supported storage drive interfaces)
M.2,PCI Express 4.0,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
2
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Line-in)
Yes
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (USB 2.0 ports quantity)
4
Network (Ethernet interface type)
Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel B760 Express
Features (Motherboard chipset family)
Intel
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
1
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
128 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Rear panel I/O ports (DisplayPort version)
1.2
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Features (Audio chip)
Realtek ALC897
Features (Power source type)
ATX
Graphics (DirectX version)
12.0
Features (PC health monitoring)
Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
ECC & Non-ECC
Memory (Maximum internal memory per slot)
64 GB
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2304 pixels
Internal I/O (Number of CPU fan connectors)
1
Internal I/O (Number of RGB LED pin headers)
2
Internal I/O (Serial port headers)
1
Expansion slots (1st M.2 highest PCI Express generation)
4.0
Expansion slots (1st M.2 largest key size)
2280
Internal I/O (Number of EPS power connectors (8-pin))
1
Expansion slots (PCI Express x1 (Gen 3.x) slots)
1
Graphics (HDCP version)
2.3
Eriviited
ean13
4719331878054
MPN
1451396
