Ethernet LAN Yes | 1xNumber of HDDs supported | Maximum HDD capacity 6000 GB | Product colour Black | Channels quantity 4 channels | Power supply type DC | Weight 540 g | Operating temperature (T-T) -10 - 45 °C
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
4-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos

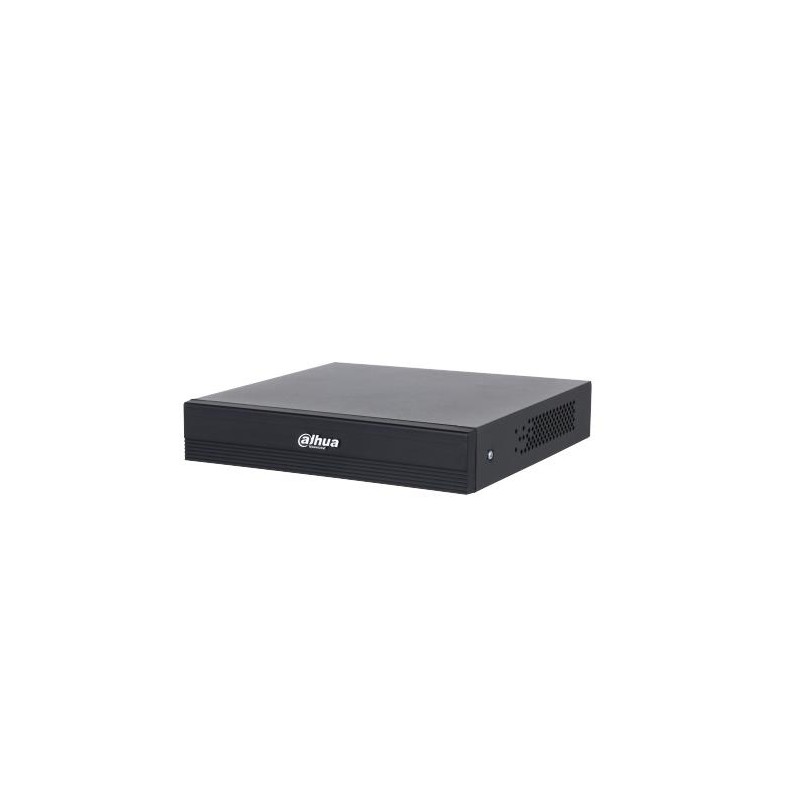

Dahua Technology DH-XVR1B04-I/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP HTTPS TCP/IP IPv4 IPv6
Performance (Product colour)
Black
Weight & dimensions (Width)
197 mm
Weight & dimensions (Depth)
204.3 mm
Weight & dimensions (Height)
41.5 mm
Weight & dimensions (Weight)
540 g
Packaging data (Package width)
332 mm
Packaging data (Package depth)
64 mm
Packaging data (Package height)
240 mm
Packaging data (Package weight)
940 g
Performance (Certification)
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operational conditions (Operating temperature (T-T))
-10 - 45 C
Operational conditions (Storage temperature (T-T))
Video input channels 16 channels | Audio input 1-channel RCA16-channel BNC (Coaxial Audio) | Audio output 1-channel RCA | Ethernet LAN Yes | 1xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Product colour Black | Weight 0.96 kg | Operating temperature (T-T) –10 °C to +45 °C °C
Ethernet LAN Yes | Product colour Black | Channels quantity 16 channels | Power supply type DC | Weight 1.8 kg | Operating temperature (T-T) -10 - 55 °C
Video input channels 32 channels | Ethernet LAN Yes | 2xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Audio system 2-way | Multi-display supported Yes | Product colour Black | Built-in processor Yes | Power supply type DC | Weight 1.9 kg | Operating temperature (T-T) -10 - 55 °C
Wired | Placement Outdoor | Wide Dynamic Range (WDR) Yes | Bullet | White | Sensor type CMOS | Night vision Yes | Total megapixels 5 MP | Built-in microphone Yes | Power source type DC | Weight 760 g
Ethernet LAN Yes | 1xNumber of HDDs supported | Maximum HDD capacity 6000 GB | Product colour Black | Channels quantity 4 channels | Power supply type DC | Weight 540 g | Operating temperature (T-T) -10 - 45 °C
