Video input channels 32 channels | Ethernet LAN Yes | 2xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Audio system 2-way | Multi-display supported Yes | Product colour Black | Built-in processor Yes | Power supply type DC | Weight 1.9 kg | Operating temperature (T-T) -10 - 55 °C
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
The XVR5000-I3/T Series offers powerful recorders that work in conjunction with 1080p HDCVI cameras, delivering smooth and crisp live videos along with an array of advanced security functions. It features two-way talk over coaxial cable, and incorporates AcuPick technology, along with other AI functions, to enhance intelligence and convenience in the surveillance field.
Two-way talk Allows for seamless communication between the camera, client and recorder over coaxial cable, and offers instant voice intercom and timely audio alerts.
Enhanced Encoding Encoding Enhancement mode optimizes videos through real-time encoding to make them smoother and improve scene rendering.
Face Recognition Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database. *Face Recognition takes effect when Face is selected in AI Mode.
Perimeter Protection Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy. *Perimeter Protection takes effect when IVS is selected in AI Mode.
AcuPick This industry-leading search technology effectively utilizes back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision. *AcuPick takes effect when AcuPick is selected in AI Mode.
SMD Plus With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above
32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
2-channel AcuPick for analog channels which improves the efficiency of target retrieval
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
2-channel face recognition for analog channels which supports face comparison
32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
Supports HDCVI, AHD, TVI, CVBS and IP video input
Supports up to 48-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 192 Mbps
Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
Smart H.265+ and H.265 dual-stream video compression

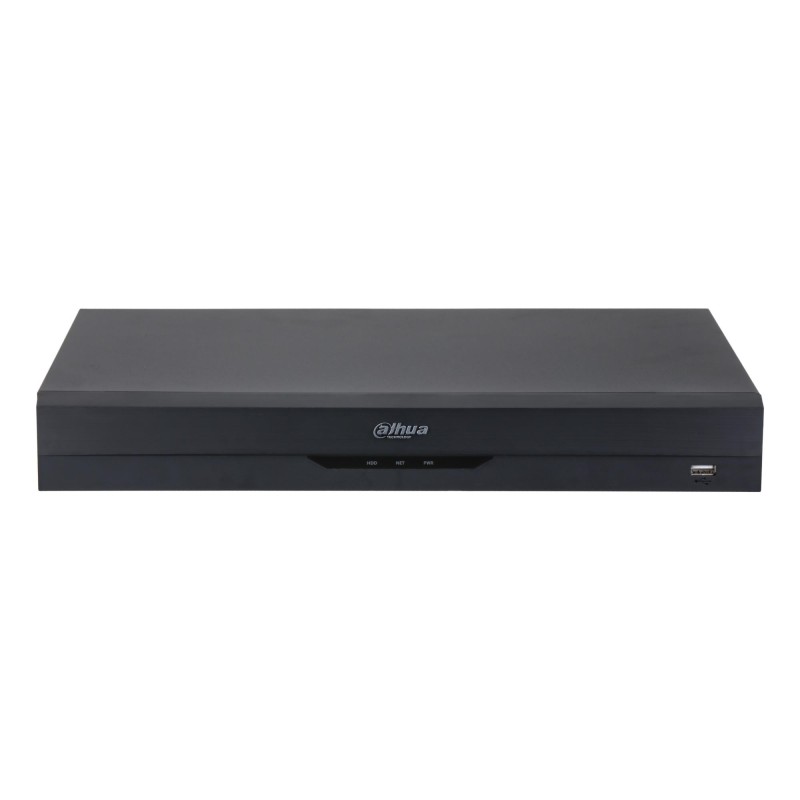

Dahua Technology 32CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 1280 x 1024,1280 x
Performance (Product colour)
Black
Weight & dimensions (Width)
375 mm
Weight & dimensions (Depth)
289.6 mm
Weight & dimensions (Height)
53 mm
Weight & dimensions (Weight)
1900 g
Packaging data (Package width)
427 mm
Packaging data (Package depth)
137 mm
Packaging data (Package height)
356 mm
Packaging data (Package weight)
3240 g
Performance (Certification)
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operational conditions (Operating temperature (T-T))
-10 - 55 C
Operational conditions (Storage temperature (T-T))
-20 - 60 C
Ports & interfaces (HDMI ports quantity)
1
Ports & interfaces (USB 2.0 ports quantity)
1
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Power (Power consumption (typical))
16 W
Power (Power supply type)
DC
Performance (Audio formats supported)
G.711 -law/G.711 A-law/PCM
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
Video input channels 4 channels | Audio output 1 RCA | Audio input 1 | Ethernet LAN Yes | 1xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Backup function Yes | PTZ control Yes | Product colour Black | Channels quantity 4 channels | Power supply type DC | Weight 530 g | Operating temperature (T-T) -10 - 55 °C
Audio input 1 RCA | Audio output 1 RCA | Ethernet LAN Yes | Maximum HDD capacity 16000 GB | Backup function Yes | PTZ control Yes | Product colour Black | Channels quantity 16 channels | Power supply type DC | Weight 1.17 kg | Operating temperature (T-T) -10 - 55 °C
Video input channels 4 channels | Audio output 1-channel RCA | Audio input 1-channel RCA4-channel BNC (Coaxial Audio) | 1xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Weight 0.84 kg | Operating temperature (T-T) –10 °C to +55 °C °C
Video input channels 32 channels | Ethernet LAN Yes | 2xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Audio system 2-way | Multi-display supported Yes | Product colour Black | Built-in processor Yes | Power supply type DC | Weight 1.9 kg | Operating temperature (T-T) -10 - 55 °C
