Docking | Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C | USB Power Delivery (USB PD) Yes | 3xHDMI ports quantity | 2xDisplayPorts quantity | Microphone in Yes | 1xHeadphone outputs | DC-in jack Yes | Ethernet LAN Yes | Colour Black | Weight 399 g

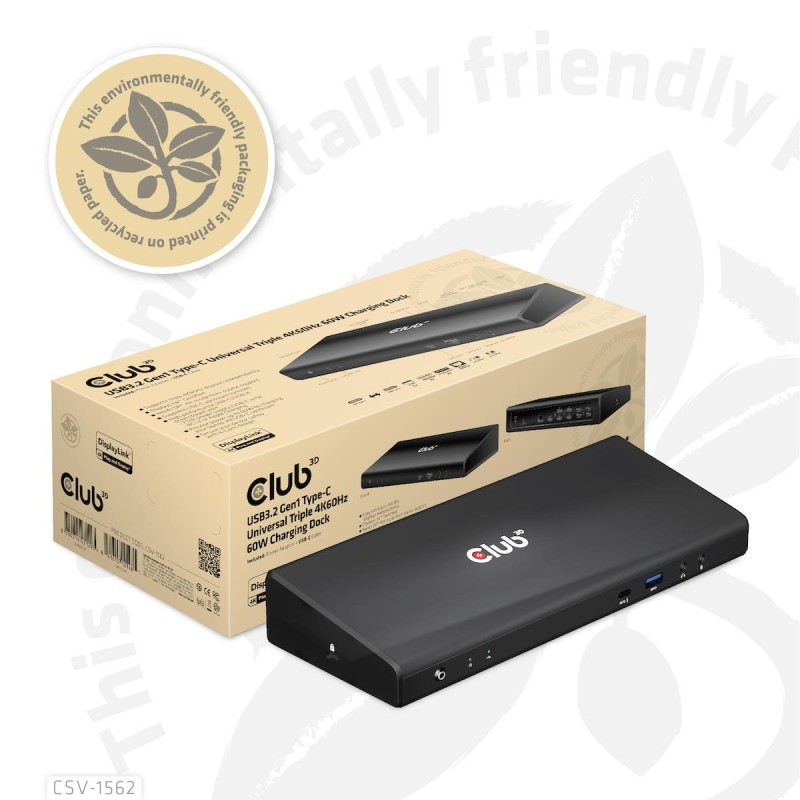

The CSV-1562 is a USB C 3.2 Gen1 Universal Triple 4K Charging Docking Station. The Universal Charging Dock is designed to cater for your most versatile connectivity demands. The USB 3.2 Gen 1 interface supports up to 5 Gbps bandwidth, which enables you to enjoy super speed data transmission between your favourite USB peripherals and allows for up to three external 4K displays simultaneously in addition it offers a wired network connection as well as audio and micro¬pone output. By adopting Power Delivery charging technology, the upstream charging function through USB-C 3.2 Gen1 interface, you can charge a connected cell phone / tablet / laptop. Furthermore, the added Kensington Lock option allows you to secure your dock as well. All it needs is a free USB 3.2 Gen 1 port on your Laptop or Ultrabook to connect to the Universal Triple 4K Charging Docking Station via a single USB cable.
Downstream port
USB3.2 Gen 1 Type-A ports (5V/0.9A) x4
USB3.2 Gen 1 Type-A port (Fast Charging) x1
USB3.2 Gen 1 Type-C port x1
Support audio 2.1 channel
Support Gigabit Ethernet
Support DisplayPort (4096 x 2160@60Hz)
Support 5K (connect to 2 DP displays simultaneously)
Support HDMI (3840x2160@60Hz)
Support PD Charging (for NB)
20/15/12/9/5V@3A, up to 60W
Kensington Lock • Power On/Off Button on the front
CLUB3D The CSV-1562 is an USB3.2 Gen1 Type-C Universal Triple 4K30Hz Charging Docking Station and is DisplayLink Certified. The Universal Charging Dock. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connecti
Performance (Product colour)
Black
Performance (Country of origin)
China
Ports & interfaces (Connectivity technology)
Docking
Weight & dimensions (Width)
250 mm
Weight & dimensions (Depth)
83 mm
Weight & dimensions (Height)
43 mm
Weight & dimensions (Weight)
399 g
Packaging data (Package width)
298 mm
Packaging data (Package depth)
92 mm
Packaging data (Package height)
150 mm
Packaging data (Package weight)
282 g
Packaging content (AC adapter included)
Yes
Packaging content (Cables included)
USB Type-C to USB Type-C
Performance (Certification)
FCC, CE and EMI
Ports & interfaces (Microphone in)
Yes
Logistics data (Harmonized System (HS) code)
8473 3020
Performance (LED indicators)
Power
Ports & interfaces (USB connector type)
USB Type-A/USB Type-C
Ports & interfaces (HDMI ports quantity)
3
Network (Ethernet LAN)
Yes
Ports & interfaces (DisplayPorts quantity)
2
Ports & interfaces (HDMI version)
2.0
Ports & interfaces (Headphone outputs)
1
Ports & interfaces (Headphone connectivity)
3.5 mm
Ports & interfaces (USB Power Delivery (USB PD))
Yes
Technical details (Compliance certificates)
RoHS
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
4
Packaging content (Manual)
Yes
Ports & interfaces (DC-in jack)
Yes
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)
