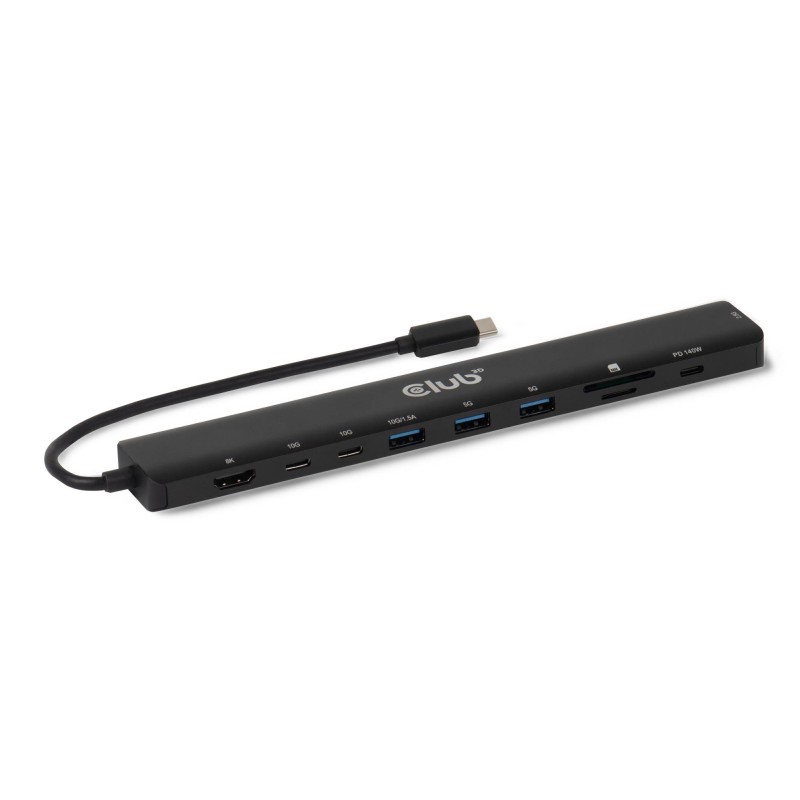

The Club 3D CSV-2550 is a 10-1 Portable Dock USB-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt, providing an ideal solution for extending the port of USB-C® or Thunderbolt™® host (PC/Laptop/Mobile phone, etc.), especially for those host with a single USB-C® port. This hub enables to output HDMI™ with max 8K30Hz or 4K144Hz high refresh rate for more natural and smoother visual experience at the meanwhile transfer USB 10Gbps data. 3x USB Type-A and 2x USB-C® data ports allow you to connect 5 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 port allows the host to get access to 2.5 Gigabit Ethernet. Besides, the USB-C® female supports PD 3.1 with max 140W PD Charging. It can work on all DP Alt mode supported USB-C® hosts.
CLUB3D 10-1 Portable Dock USB Type-C 10Gbps to HDMI 8K30Hz PD3.1 Max.140Watt. Connectivity technology: Wired, Host interface: USB Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible
Performance (Product colour)
Black
Ports & interfaces (Connectivity technology)
Wired
Weight & dimensions (Weight)
109 g
Packaging data (Package width)
70 mm
Packaging data (Package depth)
32 mm
Packaging data (Package height)
35 mm
Packaging data (Package weight)
154 g
Ports & interfaces (Microphone in)
No
Logistics data (Harmonized System (HS) code)
8473 3020
Packaging data (Quantity per pack)
1 pc(s)
Ports & interfaces (HDMI ports quantity)
1
Network (Ethernet LAN)
Yes
Ports & interfaces (HDMI version)
2.1
Ports & interfaces (USB Power Delivery (USB PD))
Yes
Ports & interfaces (USB Power Delivery up to)
140 W
Performance (HD type)
8K Ultra HD
Technical details (Compliance certificates)
CE/Federal Communications Commission (FCC)/RoHS
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
2
Power (Power source type)
USB
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
1
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
