Kirjeldus
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
X3D Turbo Mode to unleash new era gaming performance
AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital 5+2+2 phases VRM solution
Dual Channel DDR5 : 2*DIMMs with AMD EXPO Memory Module Support
EZ-Latch : PCIe x16 Slot with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4
Fast Networking : 2.5GbE LAN
Üldine informatsioon
Tootekood
B840M D2H 1.2
Tarneaeg 2-5 tööpäeva.
5 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com/
Garantija
36
Category Code
MBA
Unit Box Height
0.06
Unit Box Length
0.26
Unit Box Width
0.27
Units per Shipping Box
10
Unit Calculated Volume
0.004669 cubm
Unit Calculated Weight
1.04 kg
CnCode
84733020
Summary

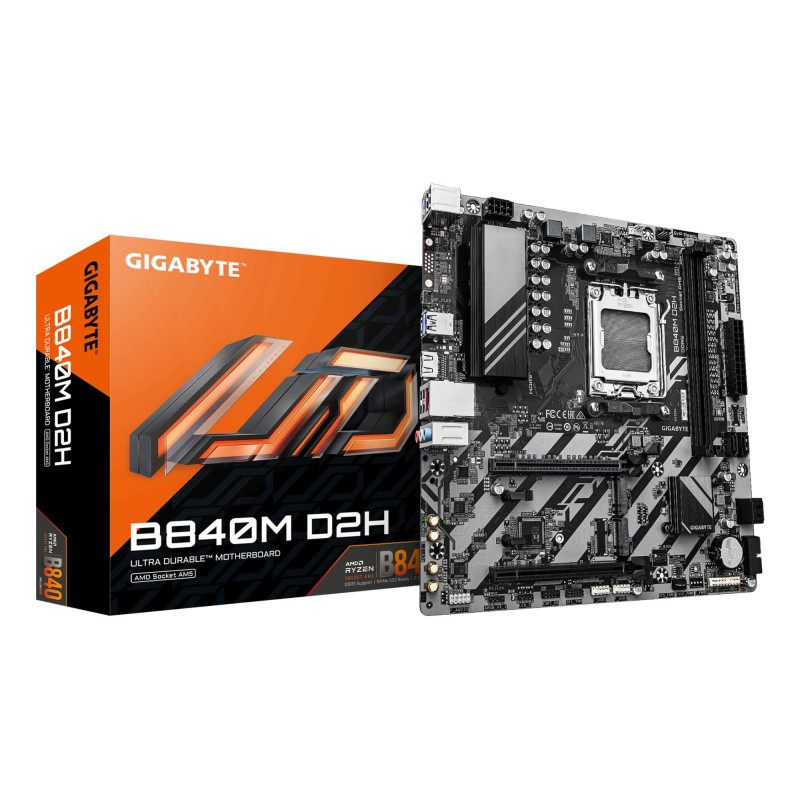

GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Seri
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
244 mm
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
265 mm
Packaging data (Package depth)
265 mm
Packaging data (Package height)
54 mm
Packaging data (Package weight)
1026.4 g
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Other features (Weight)
940 g
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Dark brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Packaging content (Screws included)
Yes
Processor (Processor manufacturer)
AMD
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory)
128 GB
Memory (Memory channels)
Dual-channel
Network (LAN controller)
Realtek RTL8125
Features (Cooling type)
Passive
Battery (Battery weight)
3 g
Processor (Compatible processor series)
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket)
Socket AM5
Processor (Supported processor sockets)
Socket AM5
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
2
Memory (Supported memory clock speed (max))
7600 MHz
Memory (Supported memory clock speeds)
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600 MHz
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
6
Storage controllers (Supported storage drive interfaces)
M.2,PCI Express 4.0,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
1
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Line-in)
Yes
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (PS/2 ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
4
Network (Ethernet interface type)
2.5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
AMD B840
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
2
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10
Storage controllers (RAID support)
Yes
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
2
Features (Audio chip)
Realtek ALC897
Features (Power source type)
ATX
Graphics (DirectX version)
12.0
Features (PC health monitoring)
Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
Non-ECC
Memory (Maximum internal memory per slot)
64 GB
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2160 pixels
Internal I/O (Number of CPU fan connectors)
2
Internal I/O (Number of RGB LED pin headers)
3
Internal I/O (Number of water pump connectors)
1
Expansion slots (1st M.2 highest PCI Express generation)
4.0
Expansion slots (1st M.2 largest key size)
2580
Expansion slots (2nd M.2 highest PCI Express generation)
3.0
Expansion slots (2nd M.2 largest key size)
2280
Expansion slots (PCI Express x16 (Gen 3.x) slots)
1
Internal I/O (Number of EPS power connectors (8-pin))
1
Eriviited
ean13
4719331868116
MPN
1453441
