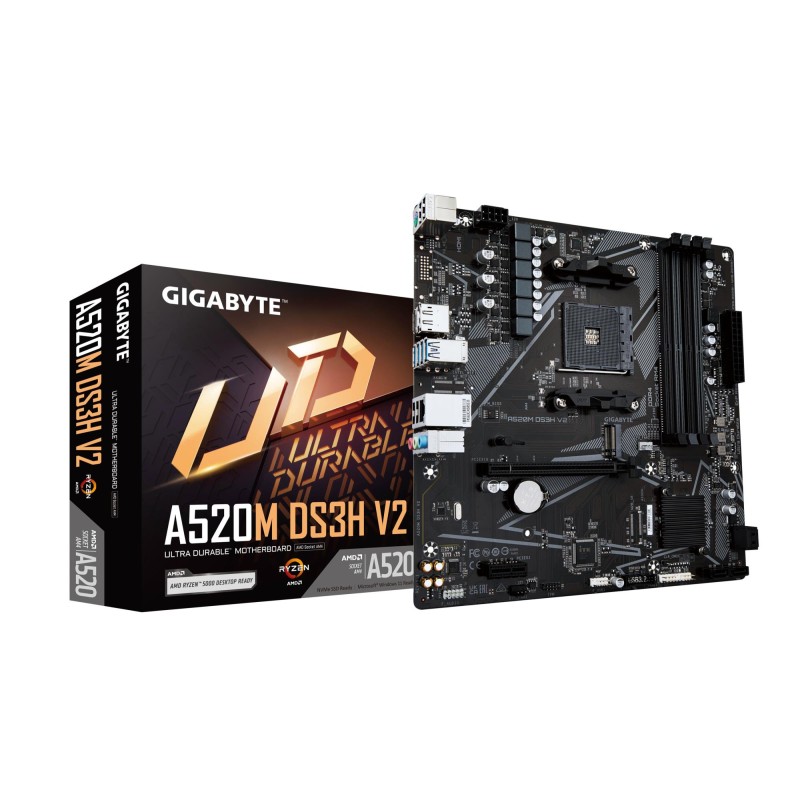

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Ultra Durable™ PCIe 3.0 x16 Slot NVMe PCIe 3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GbE LAN with Bandwidth Management Rear DisplayPort and HDMI for Multi-display Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design
Üldine informatsioon
Tootekood
A520MDS3HV2
Tarneaeg 2-5 tööpäeva.
100 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10 kf
Garantija
36
Mudel
A520M DS3H V2
Category Code
MBA
Unit Box Height
0.055
Unit Box Length
0.27
Unit Box Width
0.265
Units per Shipping Box
10
Unit Calculated Volume
0.004711 cubm
Unit Calculated Weight
0.89 kg
Summary
GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
244 mm
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
265 mm
Packaging data (Package depth)
265 mm
Packaging data (Package height)
54 mm
Packaging data (Package weight)
810 g
Packaging content (Cables included)
SATA
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Black
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Logistics data (Country of origin)
China
Packaging content (Drivers included)
Yes
Processor (Processor manufacturer)
AMD
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Memory (Maximum internal memory)
128 GB
Memory (Memory channels)
Dual-channel
Features (Cooling type)
Active
Battery (Battery weight)
3 g
Processor (Compatible processor series)
AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series
Processor (Processor socket)
Socket AM4
Processor (Supported processor sockets)
Socket AM4
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speeds)
2133/2400/2667/2933/3200/3333/3600/4000/4400/4733 MHz
Memory (Supported memory types)
DDR4-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
5
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of SATA III connectors)
4
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (PS/2 ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
2
Network (Ethernet interface type)
Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10 x64
Expansion slots (Number of M.2 (M) slots)
1
BIOS (BIOS memory size)
128 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (Clear CMOS button)
Yes
Storage controllers (RAID levels)
0/1/10
Storage controllers (RAID support)
Yes
Rear panel I/O ports (DisplayPort version)
2.0
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
4
Features (Audio chip)
Realtek ALC887
Features (Power source type)
ATX
Processor (Maximum internal memory supported by processor)
128 GB
Memory (Supported memory module capacities)
16GB/1GB/2GB/32GB/4GB/8GB
Internal I/O (Total number of SATA connectors)
4
Features (PC health monitoring)
CPU/LED/Power supply/Temperature/Voltage
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
ECC & Non-ECC
Graphics (Discrete graphics support)
Yes
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
5120 x 2880 pixels
Internal I/O (Serial port headers)
1
Expansion slots (PCI Express x16 (Gen 3.x) slots)
1
Rear panel I/O ports (USB connector type)
USB Type-A
Graphics (Number of displays supported)
3
Expansion slots (PCI Express x1 (Gen 3.x) slots)
2
Rear panel I/O ports (Digital audio optical out)
1
Processor (Maximum number of SMP processors)
1
Rear panel I/O ports (DVI-D ports quantity)
1
Internal I/O (Power fan connector)
Yes
Internal I/O (Number of EATX power connectors)
1
