Description

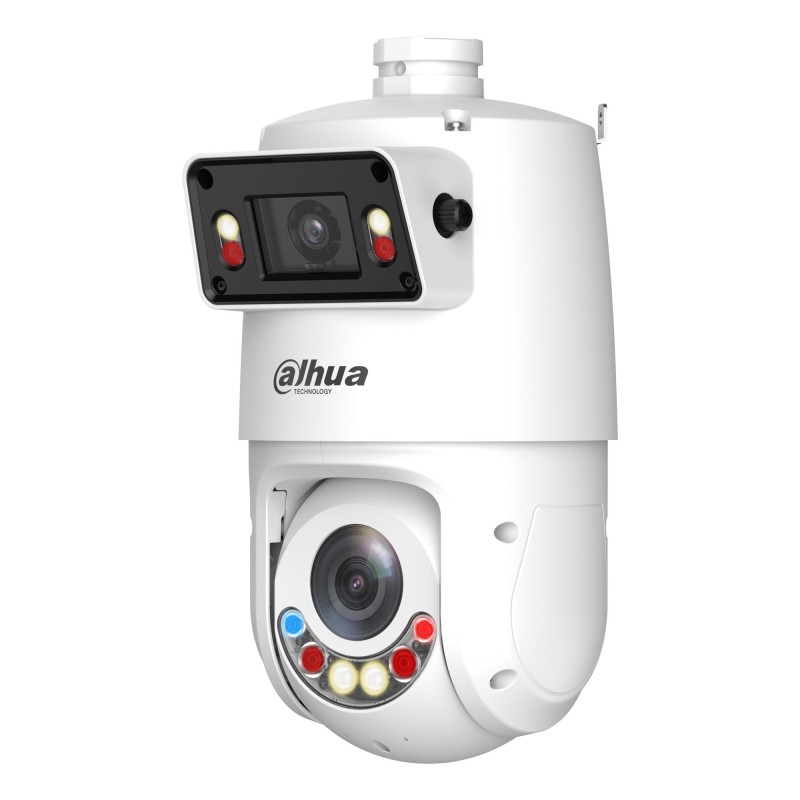

Overview channel: 1/2.8" 4Megapixel F1.0 CMOS Detail channel: 1/2.8"4Megapixel CMOS 25× optical zoom Max. 25/30 fps@4M IR distance up to 100m Xinghan Large-Scale AI Models Auto tracking 3.0 Smart tracking Perimeter protection Active deterrence
Product Details
Reference
SDT4E425-4F-GB-A-PV1-S2
In stock
2 Items
Data sheet
Vendor Homepage
https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/X-Spans-Series/Distribution/SDT4E425-4F-GB-A-PV1-S2 S2
Garantija
36
Category Code
FNC
Unit Box Height
0.497
Unit Box Length
0.257
Unit Box Width
0.243
Units per Shipping Box
2
Unit Calculated Volume
0.03721 cubm
Unit Calculated Weight
5.5 kg
Summary
Dahua Technology SDT4E425-4F-GB-A-PV1-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, International Protection (IP) code: IP66. Minimum illuminat
Weight & dimensions (Width)
184.4 mm
Weight & dimensions (Height)
304.6 mm
Weight & dimensions (Weight)
3410 g
Operational conditions (Operating temperature (T-T))
-40 - 65 C
System requirements (Mobile operating systems supported)
Android/iOS
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
25 W
Power (Power consumption (typical))
14 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Packaging content (Manual)
Yes
Ports & interfaces (DC-in jack)
Yes
Weight & dimensions (Length)
160 mm
Audio (Audio system)
2-way
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
512 GB
Power (Power source type)
DC,PoE
Sustainability (Compliance certificates)
CE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in speaker(s))
Yes
Audio (Built-in microphone)
Yes
Storage (RAM capacity)
2048 MB
Audio (Number of microphones)
2
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP66
Design (Mounting type)
Ceiling/Wall/Pole
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
120
Camera (Lens viewing angle, horizontal)
101
Camera (Lens viewing angle, vertical)
53
Image sensor (Optical sensor size)
1/2.8 "
Lens system (Zoom capability)
Yes
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
100 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2560 x 1440 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
2D noise reduction,3D noise reduction
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Abandoned object/Intrusion/Missing object/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Security (Alarm input channels)
2
Security (Alarm output channels)
1
Audio (Audio input channels)
1.0 channels
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0.001 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Video (Gain control type)
Auto/Manual
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Image stabilizer)
Yes
Performance (Built-in light)
Yes
Video (Video compression formats)
H.264+/H.264B/H.264H/H.264M/H.265/H.265+/M-JPEG
Video (Digital Wide Dynamic Range (DWDR))
Yes
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
-15 - 90
Camera (White balance)
Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711 -law/G.711 A-law/G.722.1/G.726/G.729/MPEG-2/PCM
Audio (Signal-to-Noise Ratio (SNR))
55 dB
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast/Unicast
Network (Supported network protocols)
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB, NFS
Storage (ROM capacity)
4096 MB
Network (Number of users)
20 user(s)
Security (HTTPS encryption)
Yes
Performance (Dynamic range)
120 dB
Lens system (Detect distance)
100 m
Lens system (Identify distance)
10 m
Lens system (Observe distance)
40 m
Lens system (Recognize distance)
20 m
Video (Video recording)
Yes
Network (Networking standards)
IEEE 802.1x/IEEE 802.3at
Performance (PTZ control)
Yes
Performance (PTZ modes)
5 Pattern/5 Scan/8 Tour
Power (DC output current)
3 A
Camera (Number of Privacy masking areas)
24
Security (Network access storage (NAS))
Yes
Security (Human and vehicle targets classification)
Yes
Lens system (Auto focus)
Yes
Performance (Preset points)
Yes
Lens system (Focus)
Manual
Performance (Tour recording)
Yes
Lens system (Optical zoom)
25 x
Camera (Auto flip)
Yes
Performance (Auto-tracking)
Yes
Performance (Auto patrol mode)
Yes
Specific References
ean13
6939554936432
MPN
1458733
