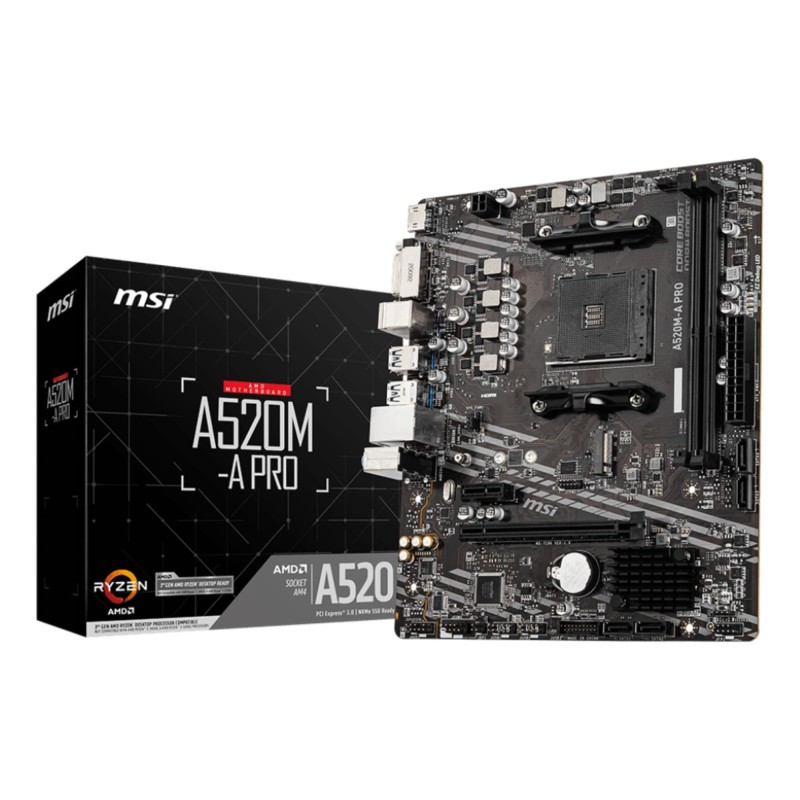

Mainboard|MSI|AMD A520|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1xDVI|1xHDMI|2x

Tootekood A520M-APRO

Kaubamärk MSI

60,47 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 30 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY FAN CONTROL
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

EZ DEBUG LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

DOUBLE ESD PROTECTION
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

USB 3.2 GEN 1
Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.

PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Supports DDR4 Memory, up to 4600(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Core Boost: With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

Üldine informatsioon

Kaubamärk MSI

Tootekood A520M-APRO

Tarneaeg 2-5 tööpäeva. 30 Tooted

Lisainfo

Müüja koduleht: https://www.msi.com/Motherboard/A520M-A-PRO/Overview
Garantija: 36
Category Code: MBA
Unit Box Height: 0.06
Unit Box Length: 0.26
Unit Box Width: 0.26
Units per Shipping Box: 20
Unit Calculated Volume: 0.004491 cubm
Unit Calculated Weight: 0.838 kg
Summary: MSI A520M-A PRO. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces
Weight & dimensions (Width): 236 mm
Weight & dimensions (Depth): 200 mm
Weight & dimensions (Height): 60 mm
Logistics data (Harmonized System (HS) code): 84733020
Other features (Weight): 698 g
Network (Ethernet LAN): Yes
Network (Wi-Fi): No
Features (Product colour): Black
Processor (Processor manufacturer): AMD
Features (Component for): PC
Memory (Maximum internal memory): 64 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Network (LAN controller): Realtek RTL8111H
Processor (Compatible processor series): AMD Ryzen 3000 Series
Processor (Processor socket): Socket AM4
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 2
Memory (Supported memory clock speeds): 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4600 MHz
Memory (Supported memory types): DDR4-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 5
Storage controllers (Supported storage drive interfaces): PCI Express 3.0,SATA
Storage controllers (Supported storage drive types): HDD & SSD
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 2
Internal I/O (Number of SATA III connectors): 4
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (Microphone in): Yes
Rear panel I/O ports (USB 2.0 ports quantity): 2
Network (Ethernet interface type): Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD A520
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): micro ATX
Expansion slots (Number of M.2 (M) slots): 1
Storage controllers (RAID levels): 0/1/10
Storage controllers (RAID support): Yes
Internal I/O (Chassis intrusion connector): Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 4
Features (Audio chip): Realtek ALC892
Memory (ECC сompatibility): ECC & Non-ECC
Graphics (Maximum resolution): 4096 x 2160 pixels
Expansion slots (PCI Express x16 (Gen 3.x) slots): 1
Graphics (Number of displays supported): 2
Expansion slots (PCI Express x1 (Gen 3.x) slots): 1
Processor (Maximum number of SMP processors): 1
Rear panel I/O ports (DVI-D ports quantity): 1
Features (Number of mounting holes): 8
