Type Managed | Web-based management Yes | 10xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) | Full duplex Yes | Product colour Black | Power source AC | Power supply included Yes | Power consumption (typical) 2.96 W | Power over Ethernet (PoE) Yes | 8xPower over Ethernet (PoE) ports quantity | 2xPower over Ethernet plus (PoE+) ports quantity | Power over Ethernet (PoE) power per port 65 W | Width 171 mm | Depth 98 mm | Height 27 mm

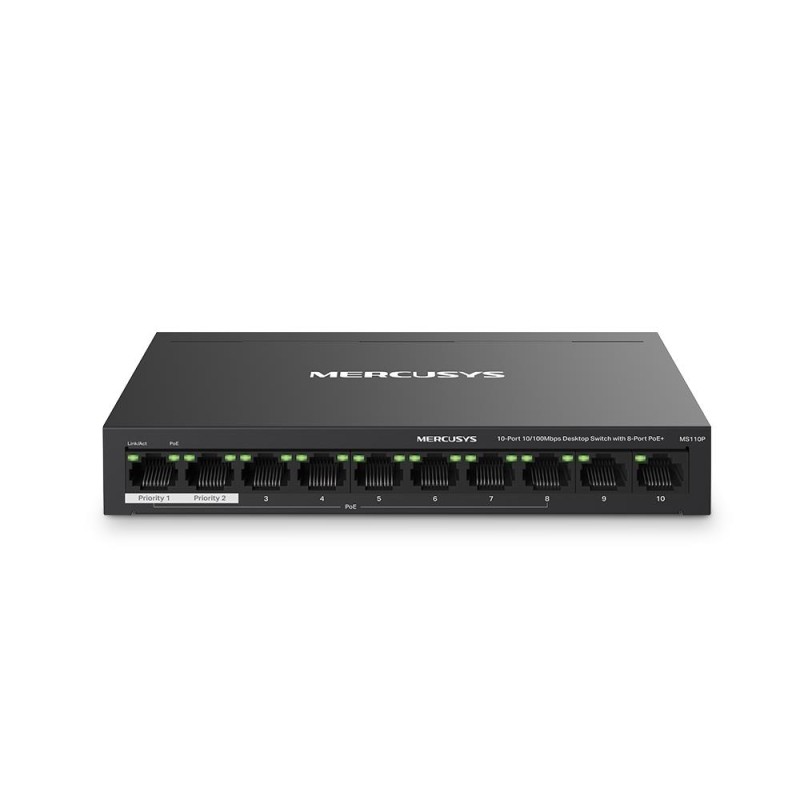

8 PoE+ Ports (65 W Budget) for Network Deployment Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget* for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss No need for electricians; simplify installation and deployment.
Cost-Efficiency Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility Deployment in complex situations is made possible by more placement possibilities.
Power Management Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode** Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.
Port Prioritization Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains. PoE Auto Recovery The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
MS105G | Type Unmanaged | 5xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) | Half duplex Yes | Full duplex Yes | Product colour Black | Power source DC | Power supply included Yes | Width 105 mm | Depth 70 mm | Height 24.9 mm
TSW100000000 | 5xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) | Product colour Blue/Metallic | Power over Ethernet (PoE) Yes | 4xPower over Ethernet (PoE) ports quantity | Power over Ethernet (PoE) power per port 30 W | Total Power over Ethernet (PoE) budget 120 W | Width 115 mm |...
Type Managed | Web-based management Yes | 10xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) | Full duplex Yes | Product colour Black | Power source AC | Power supply included Yes | Power consumption (typical) 2.96 W | Power over Ethernet (PoE) Yes | 8xPower over Ethernet (PoE) ports quantity | 2xPower over Ethernet plus (PoE+) ports quantity | Power over Ethernet (PoE) power per port 65 W | Width 171 mm | Depth 98 mm | Height 27 mm
