1xNumber of displays supported, Maximum weight capacity 10 kg, Maximum screen size 109.2 cm (43"), Suitable for TV Yes, Mounting type Desk, Minimum VESA mount 75 x 75 mm, Maximum VESA mount 100 x 100 mm, Height adjustment Yes, Tilt adjustment Yes, Rotating Yes, Colour Black, Weight 3.5 kg
Range Extender, Data transmission speed 1200 Mbps, Number of antennas 2, Wireless Frequency Range 2.4, 5 GHz (11ac), Wireless Transmit Power 17 dBm, Dimensions 80 x 78 x 77 mm

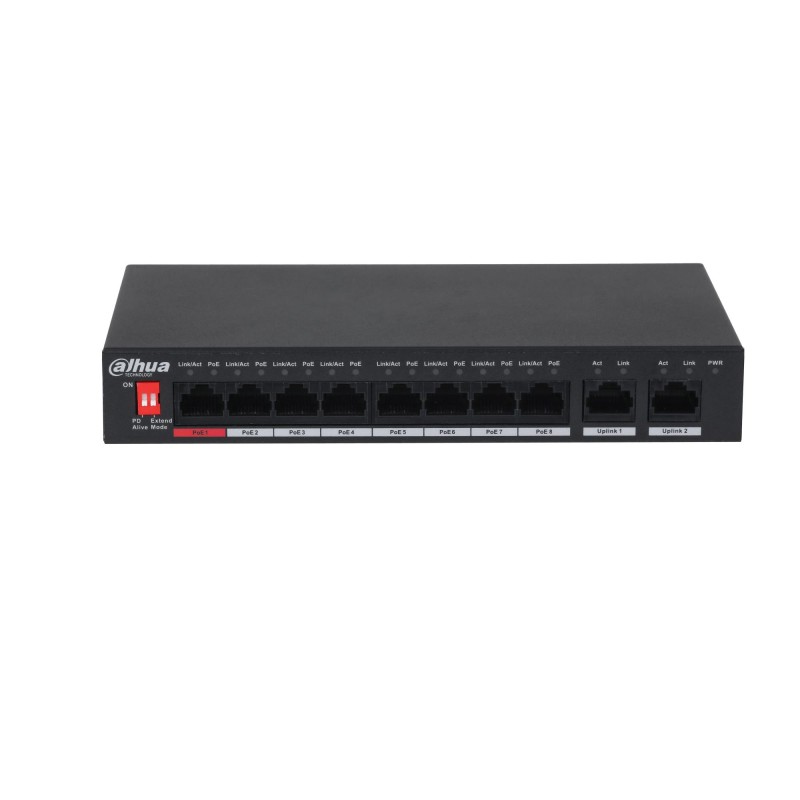

DH-PFS3010-8ET-96 is an unmanaged Desktop Switch with 8 × 10/100Mbps PoE Ports. It provides 8 × 10/100 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage. Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment.
BT 90W
The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90 W.
PoE Watchdog
Adopt the PoE watchdog function to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.
8-pin Assignment PoE Power Supply
The Eight-PIN Ethernet port supports power supply, to enhance frontend and rear-end compatibility. Reduce cable loss and promote loading capacity.
Scene
The device is applicable for use in different scenarios, including home, office, server farm, and small mall.
CRS310-1G-5S-4S+IN, Type Managed, Switch layer L3, 5xSFP module slots quantity, 4xSFP+ module slots quantity, Console port RJ-45, Yes, Rack mounting Yes, Form factor 1U, Power source DC, PoE, Power supply included Yes, Power over Ethernet (PoE) Yes, Width 200 mm, Depth 166 mm, Height 45 mm
