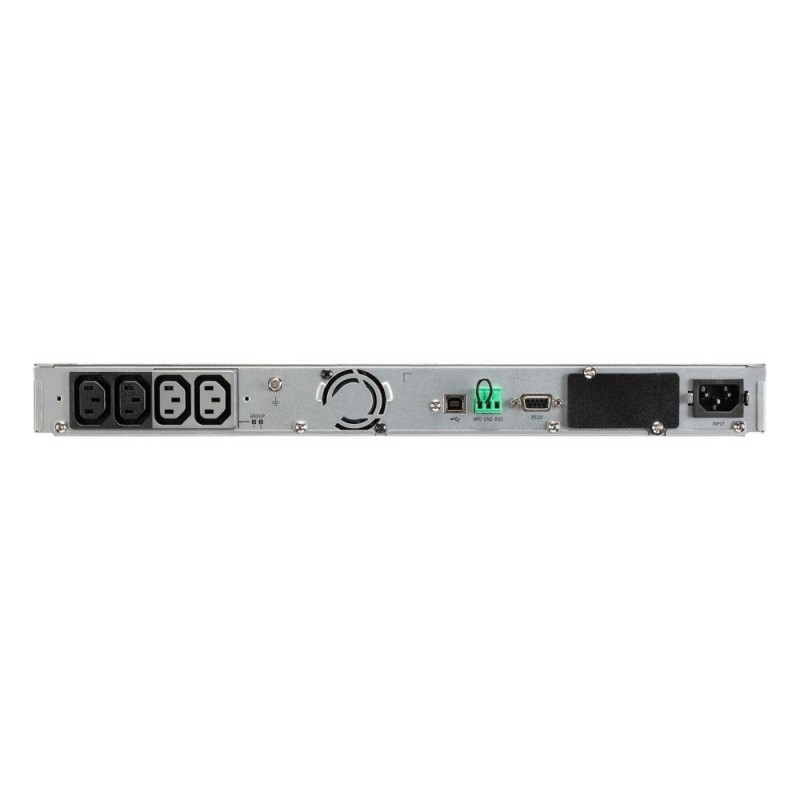

UPS|EATON|520 Watts|650 VA|LineInteractive|5P650IRG2
  • UPS|EATON|520 Watts|650 VA|LineInteractive|5P650IRG2

UPS|EATON|520 Watts|650 VA|LineInteractive|5P650IRG2

5P650IRG2
EATON
UPS topology Line-Interactive | Output power capacity 0.65 kVA | Output power 520 W | Waveform Pure sine | Input operation voltage (min) 160 V | Input operation voltage (max) 294 V | Input frequency 40/70 Hz | Output frequency 50/60 Hz | Number of input phases 1 | Number of output phases 1 | Efficiency 98 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Battery technology Sealed Lead Acid (VRLA) | Form factor Rackmount | Colour Black | Display type LCD | Operating temperature (T-T) 0 - 35 °C | Rack mount kit Yes | Weight 8.6 kg
502,34 €
С НДС
Доставка 1-5 раб.дня
Количество
Последний!
1 Шт.

Описание
UPS topology Line-Interactive | Output power capacity 0.65 kVA | Output power 520 W | Waveform Pure sine | Input operation voltage (min) 160 V | Input operation voltage (max) 294 V | Input frequency 40/70 Hz | Output frequency 50/60 Hz | Number of input phases 1 | Number of output phases 1 | Efficiency 98 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Battery technology Sealed Lead Acid (VRLA) | Form factor Rackmount | Colour Black | Display type LCD | Operating temperature (T-T) 0 - 35 °C | Rack mount kit Yes | Weight 8.6 kg
Спецификации
EATON
5P650IRG2
1 Шт.

Дополнительная информация

Сайт продавца
https://www.eaton.com/gb/en-gb/skuPage.5P650IRG2.html
Гарантия
24
Модель
5P Gen2
Код категории
UPW
Высота блока
0.175
Длина блока
0.59
Ширина блока
0.445
Units per Shipping Box
1
Unit Calculated Volume
0.04595 cubm
Unit Calculated Weight
11.2 kg
Summary
Eaton 5P650IRG2. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 520 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup
Battery (Battery technology)
Sealed Lead Acid (VRLA)
Weight & dimensions (Width)
438 mm
Weight & dimensions (Depth)
361 mm
Weight & dimensions (Height)
43.2 mm
Weight & dimensions (Weight)
8600 g
Operational conditions (Operating temperature (T-T))
0 - 35 C
Ports & interfaces (USB port)
Yes
Ports & interfaces (USB 2.0 ports quantity)
1
Design (Product colour)
Black
Certificates (Certification)
IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Design (Form factor)
Rackmount
Safety regulation & standards (Safety)
IEC/EN 62040-1, UL 1778
Packaging data (Bundled software)
Intelligent Power Software suite
Other features (Mac compatibility)
No
Design (Rack capacity)
1U
Design (Display type)
LCD
Features (Input frequency)
40/70 Hz
Features (Input operation voltage (max))
294 V
Features (Input operation voltage (min))
160 V
Features (Noise level)
40 dB
Features (Output operation voltage (max))
240 V
Features (Output operation voltage (min))
200 V
Features (Output power)
520 W
Features (Output power capacity)
0.65 kVA
Features (UPS topology)
Line-Interactive
Ports & interfaces (AC outlet types)
C13 coupler
Ports & interfaces (AC outlets quantity)
4 AC outlet(s)
Battery (Automatic battery test)
Yes
Features (Output frequency)
50/60 Hz
Battery (Hot-swap battery)
Yes
Other features (Nominal input voltage)
230 V
Features (ECO mode)
No
Features (Efficiency)
98 %
Features (Number of input phases)
1
Features (Number of output phases)
1
Features (Waveform)
Pure sine
Ports & interfaces (Power plug)
C14 coupler
Ports & interfaces (RS-232 ports)
1
Battery (Typical backup time at full load)
2 min
Battery (Typical backup time at half load)
9 min
Packaging content (Rack mount kit)
Yes
Packaging data (Management card included)
No
Other features (Input connection type)
IEC C14
Other features (Nominal output voltage)
230 V

Специальные референции

ean13
3553340710292
MPN
1425949
