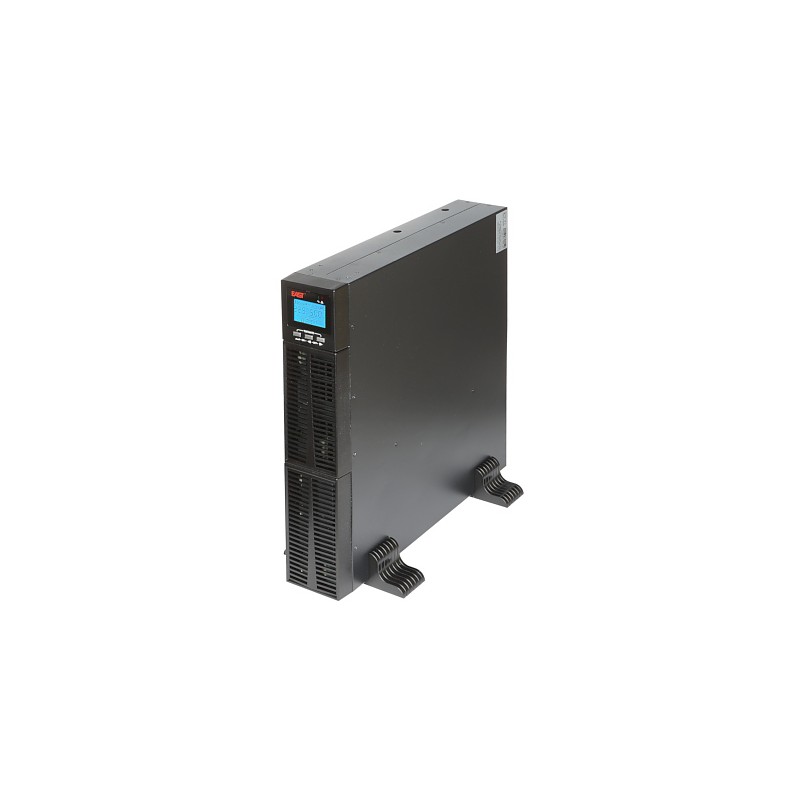

The AT-UPS1000BK-RACK UPS has been equipped with a number of advanced technologies ensuring active monitoring of the power supply network
The device is mounted to RACK 19" cabinet
The device is a power supply of the online type and provides advanced mode of operation in total separation from the external mains. Thanks to this, it completely isolates connected devices and performs in practice the function of preventive protection against phenomena accompanying dynamic changes in mains parameters. These power supplies generate current transferred from the battery, which is constantly charged.
The device works with power supply adapters having Active Power Factor Correction (APFC)
FuseShort-circuitOverload Overcharge protection discharge protection Output voltage filtering DC filter to eliminate interferences - EMI/RFI EPO (Emergency power off) switch
Operation state indication:
LCD display: operation mode, battery charging level, in/out voltage level, overload indicator, LED diodes, Sound signaling
Main features:

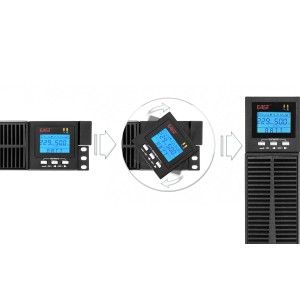

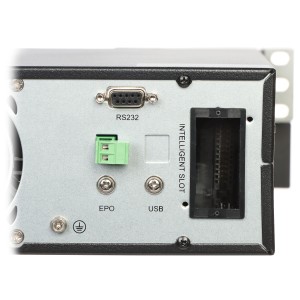

Auto restart while AC is recovering The device has a rotating display Excellent microprocessor control guarantees high reliability COLD START function for manual switch to the battery power supply Automatic Voltage Regulator (AVR) Battery charge and maintenance control RS-232 port - Access from PC Remote management - UPSmart application (included) Built-in EMI, RFI filter Battery replacement during operation (Hot-swap) Network card slot Can be mounted in a Rack 19" cabinet The device works with power supply adapters having Active Power Factor Correction (APFC)
Application:
Surveillance Systems data storage centers network, servers, workstations Industrial Equipment
UPS topology Line-Interactive | Output power capacity 0.85 kVA | Output power 510 W | Input operation voltage (min) 150 V | Input operation voltage (max) 285 V | Input frequency 50/60 Hz | Output frequency 50 Hz | Surge protection Yes | AC outlet types Type F | Power plug C14 coupler | 1xEthernet LAN (RJ-45) ports | Battery technology Sealed Lead Acid...
1050 Watts | 1500 VA | Wave form type Sinewave | Topology LineInteractive | Input ports Single, IEC320 C14 (10AMP) | Output power connector type IEC 320 C13 | Colour Black
The AT-UPS3000-LCD UPS has been equipped with a number of advanced technologies ensuring active monitoring of the power supply networkThe device is a power supply of the online type and provides advanced mode of operation in total separation from the external mains. Thanks to this, it completely isolates connected devices and performs in practice the...
The UPS is designed for most network devices such as: IP cameras, alarm control panels, smart home management systems and various types of network devicesThe device has a small casing, economical design and automatic start in the absence of mains power
Output power capacity 1.5 kVA | Output power 900 W | Input operation voltage (min) 220 V | Input operation voltage (max) 240 V | Input frequency 50 Hz | Surge protection Yes | AC outlet types Type L | USB port Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 9 V | Battery recharge time 8 h | Form factor Tower | Cable length 1.4 m |...
The AT-UPS1500-LED UPS has been equipped with a number of advanced technologies ensuring active monitoring of the power supply networkThe line-interactive power supplies analyse the voltage, frequency and phase shift angle on a current basis, and filter the voltage transmitted to the connected devices. When a mains failure is detected, the UPS immediately...
UPS topology Line-Interactive | Output power capacity 1 kVA | Output power 700 W | Waveform Pseudo sine | Input operation voltage (max) 230 V | Input frequency 50/60 Hz | Output frequency 50/60 Hz | Response time 2 ms | Number of output phases 1 | AC outlet types Type F | Battery technology Sealed Lead Acid (VRLA) | Form factor Compact | Cooling type...
UPS topology Line-Interactive | Output power 920 W | Waveform Sine | Input operation voltage (min) 160 V | Input operation voltage (max) 294 V | Input frequency 50/60 Hz | Output frequency 50/60 Hz | Number of input phases 1 | Number of output phases 1 | Efficiency 98.2 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial...
UPS topology Line-Interactive | Output power capacity 3 kVA | Output power 3000 W | Waveform Pure sine | Input operation voltage (min) 160 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | AC outlet types C13 coupler/C19 coupler | Power plug C20 coupler | USB port Yes | Serial interface Yes | Form factor Rackmount/Tower | Colour Black |...
UPS topology Line-Interactive | Output power capacity 0.7 kVA | Output power 360 W | Input operation voltage (min) 220 V | Input operation voltage (max) 240 V | Input frequency 50/60 Hz | Auto-restart Yes | AC outlet types Type F | USB port Yes | Form factor Tower | Colour Black | Control type Buttons | Operating temperature (T-T) 0 - 40 °C | Weight 4.4 kg
The AT-UPS650R-RACK UPS has been equipped with a number of advanced technologies ensuring active monitoring of the power supply networkThe device is mounted to RACK 19" cabinetThe line-interactive power supplies analyse the voltage, frequency and phase shift angle on a current basis, and filter the voltage transmitted to the connected devices. When a...
The VI-1500/LCD UPS is a professional device used to maintain the operation of the components connected to itAdditionally protects the connected equipment against overvoltages
1980 Watts | 2200 VA | Wave form type Sinewave | Input ports Single, IEC320 C20 (16AMP) | Output power connector type IEC 320 C13, IEC 320 C19 | Colour Black
UPS topology Line-Interactive | Output power capacity 1.6 kVA | Output power 900 W | Input operation voltage (min) 220 V | Input operation voltage (max) 240 V | Input frequency 50/60 Hz | Auto-restart Yes | AC outlet types Type F | USB port Yes | Form factor Tower | Colour Black | Control type Buttons | Operating temperature (T-T) 0 - 40 °C | Weight 9.3 kg
The AT-UPS1000BK-RACK UPS has been equipped with a number of advanced technologies ensuring active monitoring of the power supply network
The device is mounted to RACK 19" cabinet
The device is a power supply of the online type and provides advanced mode of operation in total separation from the external mains. Thanks to this, it completely isolates connected devices and performs in practice the function of preventive protection against phenomena accompanying dynamic changes in mains parameters. These power supplies generate current transferred from the battery, which is constantly charged.
The device works with power supply adapters having Active Power Factor Correction (APFC)
