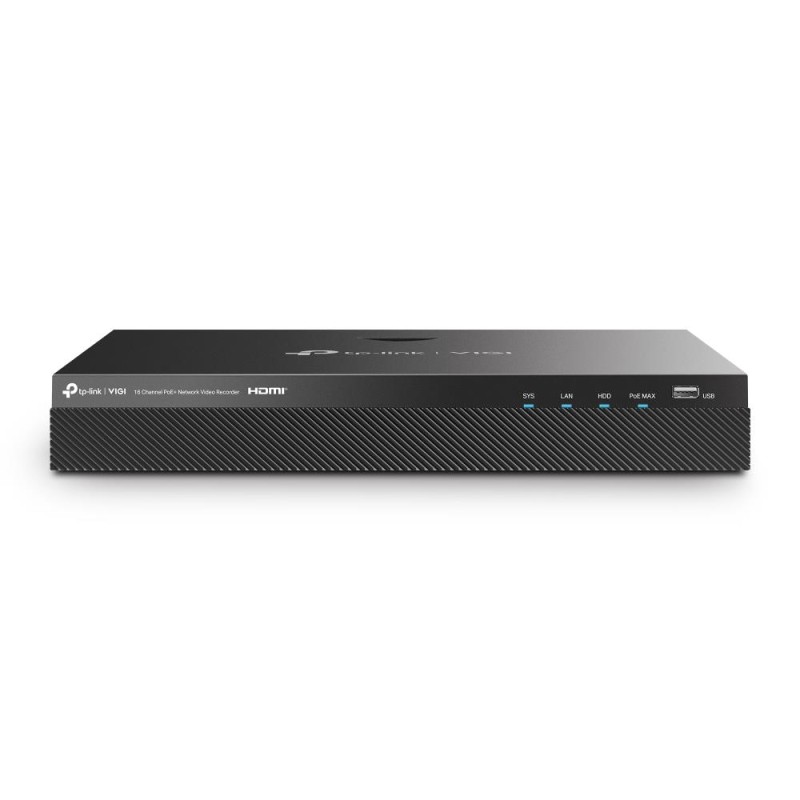

VIGI NVR2016H-16P
VIGI 16 Channel PoE+ Network Video Recorder
4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.‡
16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
Channels 4 | Drives/bays 1 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 204.6 mm × 206.4 mm × 45.6 mm | Temp. range –10 °C to +55 °C | Colour White
Drives/bays 1 | CPU Quad-core ARM® Cortex®-A55 at 1.7 GHz | Memory (RAM) 4GB | Power supply requirements AC/DC, Internal, 60W | Dim. 220 x 220 x 47 mm | Colour White
Channels 8 | CPU Industrial-grade | Power supply requirements 53 V DC, 1.81 A | Power consumption 10 Watts | Dim. 270.0 × 206.3 × 45.9 mm | Colour White
Channels 8 | Included Accessories Power Adapter; HDD Screws; Mouse; Quick Installation Guide | Power supply requirements 12V DC, <18 W | Power consumption 13.1 Watts | Dim. 246.2 x 148.2 x 42.6 mm | Temp. range -10–55 °C
Channels 16 | Drives/bays 1 | CPU Industrial-grade processor | Integrated LAN Gigabit | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C
Channels 8 | CPU Industrial-grade | Integrated LAN Gigabit | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C | Colour Black
Channels 4 | CPU Industrial-grade | Integrated LAN 10/100 | Power supply requirements 53 VDC, 1.22 A | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C | Colour Black
Channels 8 | CPU Industrial-grade | Integrated LAN Gigabit | Power supply requirements 53 VDC, 1.81 A | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C | Colour Black
Channels 16 | Drives/bays 1 | CPU Industrial-grade processor | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260 × 232.7 × 47.6mm | Temp. range –10 °C to +55 °C | Colour Black
Channels 8 | CPU Industrial-grade processor | Power supply requirements 12 VDC, 2A | Power consumption 7.8 Watts | Dim. 260 × 232.7 × 47.6mm | Temp. range –10 °C to +55 °C | Colour Black
Channels 4 | Included Accessories Power Adapter,HDD Screws,Mouse,Quick Installation Guide | Power supply requirements 53.5V DC/1.31A | Power consumption 4.82 Watts | Dim. 200.3 × 200.3 × 43 mm | Temp. range -10–55 °C | Colour White
Channels 8 | CPU Industrial-grade processor | Power supply requirements 12 VDC, 1.5 A | Power consumption 10 Watts | Dim. 260.0 × 232.5 × 47.6 mm | Colour Black
