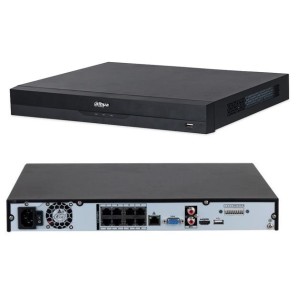

8-канальный NVR с двумя отсеками для дисков и двухъядерным процессором. Встроенный LAN 10/100, питание DC 12V/5A, энергопотребление 20Вт. Компактный корпус черного цвета, рабочая температура –10 °C до +55 °C.
32 IP channel max, up to 12MP resolution
Max 32MP, Record Rate 384 Mbps
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
2x HDMI/ 2x VGA
4 SATA interface up to 16TB
2 RJ-45 port (10/100/1000Mbps), 1x eSATA
16/6 alarm I/O, RS232, 4x USB, RS485
1.5U 19” chassis, no front panel control, mouse included
Other brands IP cameras supported: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc., ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
Free IP monitoring software available
Channels 4|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements DC12 V, 4 A|Dim. 375 mm × 282.4 mm × 53 mm|Temp. range –10 °C to +55 °C|Colour Black
Channels 4 | Drives/bays 1 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 1xRJ45 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 204.6 mm × 206.4 mm × 45.6 mm | Temp. range –10 °C to +55 °C | Colour White
Channels 4|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|5xRJ45|Power supply requirements 53 V DC, 1.22 A|Dim. 204.6 mm × 206.4 mm × 45.6 mm|Temp. range –10 °C to +55 °C
8-канальный NVR с двумя отсеками для дисков и двухъядерным процессором. Встроенный LAN 10/100, питание DC 12V/5A, энергопотребление 20Вт. Компактный корпус черного цвета, рабочая температура –10 °C до +55 °C.
Channels 4 | Drives/bays 1 | CPU Industrial-grade processor | Integrated LAN 10/100 | Power supply requirements 12 VDC, 1.5 A | Power consumption 10 Watts | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C
Channels 16 | CPU Industrial-grade processor | Power supply requirements 100–240 VAC, 50/60 Hz | Dim. 375.0 × 327.9 × 53.0 mm | Temp. range –10 °C to +55 °C
