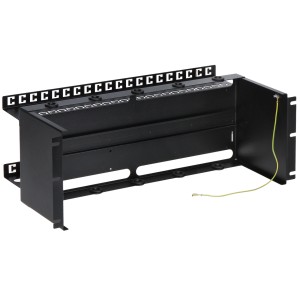

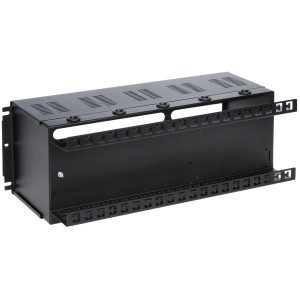

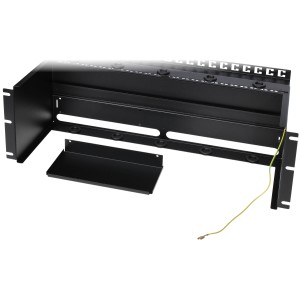

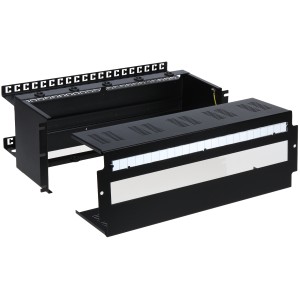

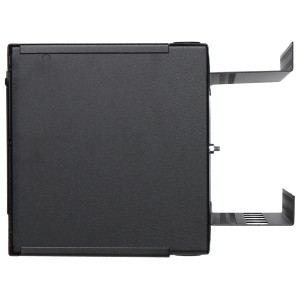

HOUSING A19-TS-35/OB-4U

A19-TS-35/OB-4U
PULSAR

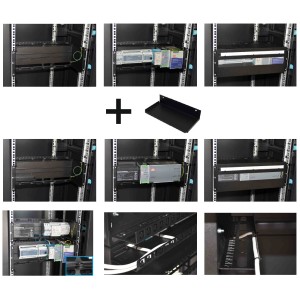

  • The enclosure with a DIN rail for RACK cabinets is intended for mounting equipment located inside DIN enclosures, for RACK 19" cabinets
  • The enclosure features a DIN rail, length: 24x1S
  • The height of the mounted module cannot exceed 160 mm
  • The enclosure can accommodate max. 24 fuses, 1 S wide.
150,04 €
С НДС
Доставка 1-5 раб.дня
Количество
Доставка 1-5 раб.дня
50 шт.

Описание
Width: 19 "
Height: 4 U
Material: Steel - powder painted
Color: Black (RAL 9005)
"Index of Protection": IP20
Application: RACK 19"

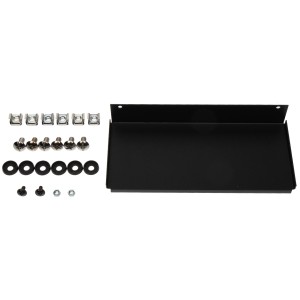

Main features: TH-35 rail Corrosion resistance Possibility to mount of 24 fuses, 1 S wide 6-point fixing to the front RACK rails 6 pcs. of M6 screws with cage nuts included The enclosure features labeling field 420x20 mm 10 rubber bushings in the top and bottom part of the enclosure Mounting plate for a 17Ah/12V battery included
Operation temp: -10 °C ... 40 °C
Weight: 3.73 kg

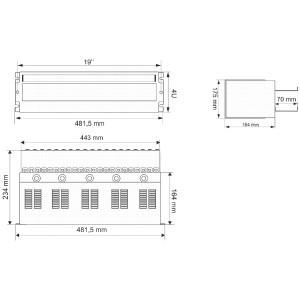

Dimensions: 445  x 170  x 155 mm Internal dimensions 481.5  x 175  x 234 mm External dimensions
Manufacturer / Brand: PULSAR
Guarantee: 2 years
Спецификации
PULSAR
A19-TS-35/OB-4U
50 шт.
