| Standard: |
TCP/IP |
| Sensor: |
1/2.8 " STARVIS™ CMOS |
| Matrix size: |
4 Mpx |
| Resolution: |
2560 x 1440 - 3.7 Mpx ,
2304 x 1296 - 3 Mpx ,
1920 x 1080 1080p ,
1280 x 960 1.3 Mpx ,
1280 x 720 - 720p |
| Lens: |
5 ... 125 mm |
| View angle: |
52 ° ... 3 ° (manufacturer data) 50 ° ... 3.5 ° (our tests result) |
| Optical zoom: |
25x |
| Digital zoom: |
16x |
| Range of IR illumination: |
100 m |
| White light LED illuminator range: |
 |
| Video output: |
|
| Rotation speed (manual control): |
0.1 °/s ... 240 °/s (horizontal)
0.1 °/s ... 160 °/s (vertical) |
| Preset rotation speed: |
max. 240 °/s (horizontal)
max. 160 °/s (vertical) |
| Horizontal rotation range: |
360 ° - continuous |
| Vertical rotation range: |
-5 ° ... 90 ° |
| RS-485 interface: |
|
| Number of presets: |
300 |
| Horizontal scan: |
|
| Route settings: |
|
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs: |
2 / 1 |
| Main stream frame rate: |
25 fps - 4 Mpx |
| Memory card slot: |
Micro SD memory cards up to 512GB support (possible local recording) |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
UDP, FTP, RTMP, IPv4/IPv6, Bonjour, DNS, RTCP, PPPoE, NTP, RTP, IEEE 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, QoS, RTSP, ARP, SAMBA, P2P, Multicast |
| WEB Server: |
Built-in, NVR compliance |
| Max. number of on-line users: |
20 |
| ONVIF: |
21.12 |
| Audio: |
External microphone input, Audio output Audio detection Bi-directional audio streaming support Compliance with the AAC standard |
| Mobile phones support: |
37777 port Android: DMSS free application iOS (iPhone): DMSS free application |
| Default admin user / password: |
admin / -
The administrator password should be set at the first start |
| Default IP address: |
192.168.1.108 |
| Web browser access ports: |
80, 37777 |
| PC client access ports: |
37777 |
| Mobile client access ports: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: |
WDR - 120 dB - Wide Dynamic Range 2-DNR, 3-DNR - Digital Noise Reduction Day/night mode BLC - Back Light Compensation HLC - High Light Compensation (spot) ICR - Movable InfraRed filter The camera is equipped with a built-in heater with a thermostat Motion Detection Configurable Privacy Zones Mirror - Mirror image Smart motion detection (with recognizing people and vehicles) IVS analysis : intrusion, crossing the line (tripwire), entering the marked area, abandoned/missing object, fast moving, parking detection, detection of people gathering, loitering detection |
| Power supply: |
PoE (802.3at), 12 V DC / 2 A (power adapter included) |
| Power consumption: |
≤ 21.5 W |
| Housing: |
Speed Dome, Plastic |
| Color: |
White + Black |
| "Index of Protection": |
IP66 |
| Operation temp: |
-40 °C ... 65 °C |
| Weight: |
2.4 kg |

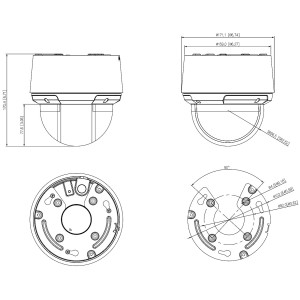

| Dimensions: |
Ø 171 x 170 mm |
| Supported languages: |
Polish, English, Czech, French, Spanish, Dutch, Indonesian (Bahasa), German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Vietnamese, Italian |
| Manufacturer / Brand: |
DAHUA |
| Guarantee: |
5 years |
