| Standard: | TCP/IP |
| Sensor: | 1/2.8 " Progressive Scan CMOS |
| Resolution: | 1920 x 1080 |
| Matrix size: | 2 Mpx |
| Resolution: | 1920 x 1080 - 1080p 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p |
| Scanning system: | Progressive |
| Lens: | 4.8 ... 120 mm |
| View angle: | 61 ° ... 2.8 ° (manufacturer data) 57 ° ... 3.1 ° (our tests result) |
| Optical zoom: | x 25 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 150 m |
| S/N ratio: | ≥ 55 dB (AGC off) |
| Video output: | ![]() |
| Preset rotation speed: | max. 160 °/s (horizontal) max. 110 °/s (vertical) |
| Rotation speed (manual control): | 0.1 °/s ... 120 °/s (horizontal) 0.1 °/s ... 75 °/s (vertical) |
| Horizontal rotation range: | 360 ° continuous |
| Vertical rotation range: | -90 ° ... 90 ° |
| RS-485 interface: | ![]() |
| Protocols: | DH-SD, PELCO-D/P |
| Number of presets: | 300 |
| Horizontal scan: | ![]() |
| Route settings: | 8 |
| Park action: | Call the set function (tour, scan, etc.) after specified dwell time |
| Image compression method: | H.265+ H.265 / H.264 / H.264+ / MJPEG |
| Alarm inputs / outputs: | 2 / 1 |
| Audio: | External microphone input Audio output Bi-directional audio streaming support Audio detection |
| Main stream frame rate: | 1 ... 50 fps - 1080p |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, IEEE 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, SNMPv1/v2c/v3(MIB-2), RTCP, RTMP |
| WEB Server: | Built-in, NVR compliance |
| Max. number of on-line users: | 20 |
| ONVIF: | 19.12 |
| Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) Android: DMSS free application iOS (iPhone): DMSS free application |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: | Intelligent 3D Positioning System WDR - 120 dB - Wide Dynamic Range ROI - improve the quality of selected parts of image EIS - Electronic Image Stabilization F-DNR (Defog) - Reduction of image noise caused by precipitation 2D-DNR, 3D-DNR - Digital Noise Reduction ICR - Movable InfraRed filter Configurable Privacy Zones - 24 BLC/HLC - Back Light / High Light Compensation Audio detection Auto White Balance Sharpness - sharper image outlines AGC - Automatic Gain Control Day/Night mode (color/b&w/auto) IVS analysis : objects tracking, crossing the line (tripwire), intrusion, abandoned/missing object, face detection, scene changing SMD PLUS - searching for an object classified as: human, motor vehicle, non-motor vehicle |
| Power supply: | PoE (802.3at), 12 V DC / 4 A (power adapter included) |
| Housing: | Metal |
| Color: | White |
| "Index of Protection": | IP67 |
| Vandal-proof: | ![]() |
| Operation temp: | -40 °C ... 70 °C |
| Weight: | 3.93 kg (without bracket) |

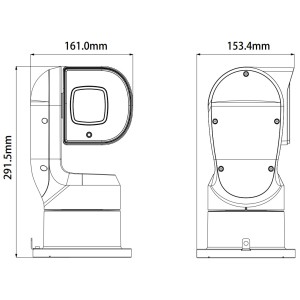

| Dimensions: | 153 x 161 mm x 292 mm (without bracket) |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
