Support passive PoE cascade power supply and Ethernet data exchange
Support IEEE 802.3af/at standard power supply IP Camera
Cooperating with High PoE Midspan (TAM01GT01GT-75W), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption <=8W), max transmission distance 300m
1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
Installation mode: junction box internal mounting, DIN rail mounting

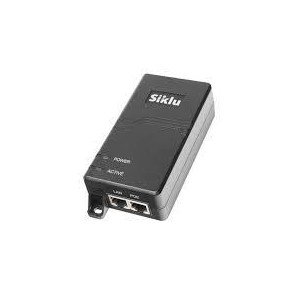

Product Type POE Injector | Power supply requirements 90-260VAC @ 47-63 Hz | Operating temperature range 0 — 40° C | Colour Black | Dimensions 88 x 57 x 33 mm
Power supply requirements 12 - 57 V, Passive or 802.3af/at | Power consumption 30 Watts | Operating temperature range -20°C to 70°C | Dimensions 92 x 104 x 24 mm
