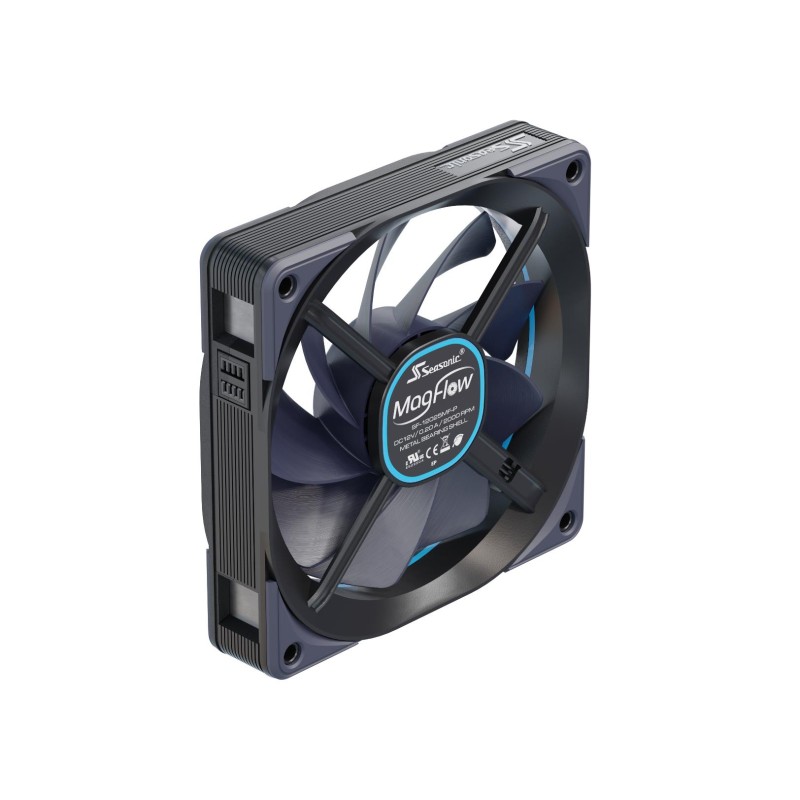

CASE FAN 120MM/MAGFLOW-1 SEASONIC

Name: CASE FAN 120MM/MAGFLOW-1 SEASONIC
Brand: SEASONIC
SKU: MAGFLOW-1
Price: 32.6 EUR
Availability: BackOrder

Код MAGFLOW-1

Марка SEASONIC

32,60 €

С НДС

Доставка до 30 дней

Количество

Tellimisel

Описание
Спецификации

Описание

Thanks to the very innovative magnetic connection system, the installation of new MagFlow fans will be fast and effortless. Customers will have the choice to purchase single fan kits or a 3-Fan kit, depending on their needs to create the most efficient cooling for the PC components or radiators.

DAISY CHAIN DESIGN
Individual fans are attached to each other by an interlocking mechanism supported by magnets. This system eliminates the use of wires to make the installation simpler and cleaner.

MODULARITY
Regardless of the number of fans to be installed, attaching the cables for power and signal becomes extremely easy and convenient with the magnets. The connectors snap quickly and precisely in place, which greatly simplifies the assembly process.

EASY INSTALLATION ON TOP OF THE RADIATOR
After the fans are connected, they can be installed on top of the water-cooling radiator with only four screws, which reduces the time spent on alignment and screw locking.

Simple and Neat Cable Management
Flexible Fan Installation Options
Daisy Chain Design
Fluid Dynamic Bearing (FDB)

Спецификации

Марка SEASONIC

Код MAGFLOW-1

Дополнительная информация

Сайт продавца: https://seasonic.com/magflow-120mm specification
Название модели: MagFlow 120 mm
Гарантия: 24
Модель: MAGFLOW-1
Код категории: COS
Unit Calculated Volume: 0.00025 cubm
Unit Calculated Weight: 0.35 kg
Summary: Seasonic MagFlow 1-Fan Kit. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 600 RPM, Rotational speed (max): 2000 RPM, Maximum air pressure: 2.61 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 124.2 mm, Depth: 26.6 mm, Hei
Weight & dimensions (Width): 124.2 mm
Weight & dimensions (Depth): 26.6 mm
Weight & dimensions (Height): 120.4 mm
Weight & dimensions (Weight): 212.7 g
Packaging content (Cables included): Fan
Design (Product colour): Black
Design (Number of fans): 1 fan(s)
Performance (Rotational speed (max)): 2000 RPM
Performance (Rotational speed (min)): 600 RPM
Packaging content (Manual): Yes
Packaging content (Screws included): Yes
Packaging content (Number of screws): 4
Performance (Mean time between failures (MTBF)): 100000 h
Performance (Type): Fan
Performance (Fan diameter): 120 mm
Performance (Maximum airflow): 63.33 cfm
Performance (Suitable location): Computer case
Performance (Bearing type): Fluid Dynamic Bearing (FDB)
Design (Number of fan blades): 9
Power (Rated current): 0.1 A
Power (Voltage): 12 V
Packaging content (Package type): Box
Performance (Maximum air pressure): 2.61 mmH2O
Performance (Quantity per pack): 1 pc(s)
Weight & dimensions (Fan dimensions (W x D x H)): 124.2 x 26.6 x 120.4 mm
Performance (Fan bearing technology): Fluid Dynamic Bearing (FDB)
Performance (Fan speed (max)): 2000 RPM
Performance (Fan speed (min)): 600 RPM
Power (Fan current): 0.1 A
Power (Fan voltage): 12 V
Weight & dimensions (Fan weight): 212.7 g
Power (Maximum current): 0.18 A
