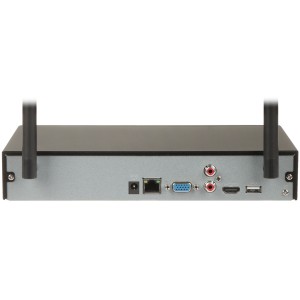

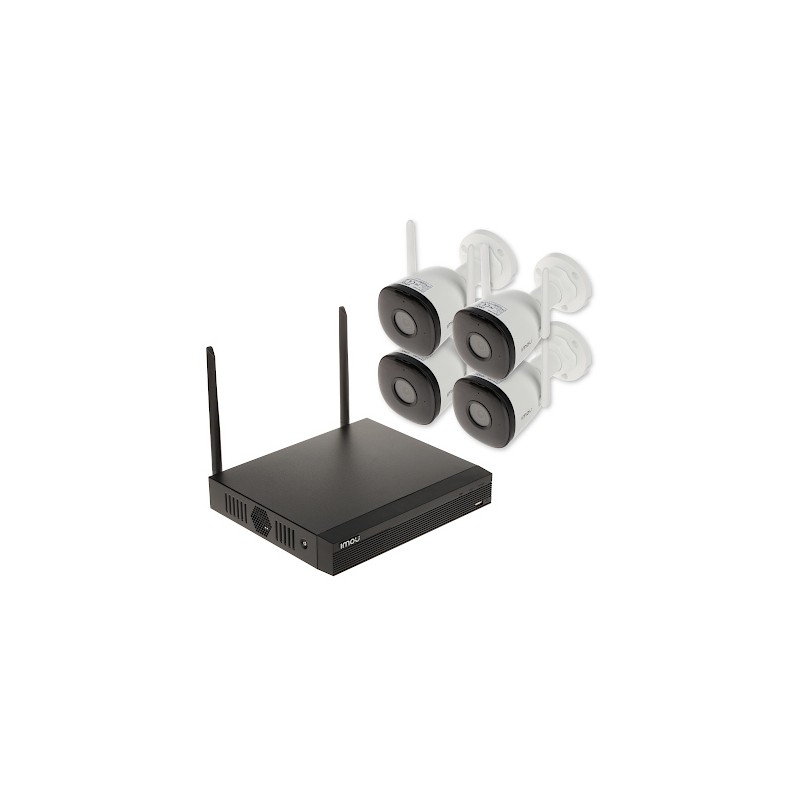

SURVEILLANCE KIT KIT/NVR1104HS-W-S2/4-F22 Wi-Fi, 4 CHANNELS HDD 1TB - 1080p 2.8 mm IMOU

Standard: TCP/IP Supported resolutions: max. 1080p - 1920 x 1080 px Video outputs: 1 pcs HDMI
1 pcs VGA Audio support: 4 Channels - Audio from cameras Audio inputs: 1 pcs CINCH Audio outputs: 1 pcs CINCH Image compression method: Smart H.265+ / H.265 / Smart H.264+ / H.264 Bitrate: max. 40 Mbps
max. 16 Mbps Wi-Fi Supported hard drives: 1  x 8 TB SATA, HDD : 1 TB (included) Recording modes: Manual, Motion Detection, Schedule External storage devices backup: Backup to USB drive (pendrive, external drive) Searching and playback the records: Records searching: by time and events type. Records playback: forward, backward, fast, slow
Advanced searching (to the one second accuracy)
1/4 channel synchronous playback Network interface: 1 x RJ-45 10/100 Base-TX 2.4 GHz Wi-Fi - IEEE 802.11 b/g/n Network functions: Built-in Wi-Fi module - Imou cameras support : Smart, auto-paring, Remote configuration, Remote management Full support via network, Remote records copying, Web-Server built-in Network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, Alarm Server, P2P ONVIF: Default IP address: 192.168.1.108  Default admin user / password: admin / -
The administrator password should be set at the first start Web browser access ports: 80, 37777  PC client access ports: 37777  Mobile client access ports: 37777  Mobile phones support: Port no.: 37777 or access by a cloud (P2P) Android: IMOU free application iOS (iPhone): IMOU free application RTSP URL: rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream USB: 2 pcs USB 2.0 Serial ports: Alarm inputs / outputs: PTZ control: Motion Detection: Intelligent Image Analysis: Main features: Smart, auto-paring < 120 s Alarm notifications 2x2 MIMO - MIMO technology - increases the throughput of wireless link (multiple antennas transmission) Operating range in open area : 100 m Mouse support: IR remote controller in the set: Power supply: 12 V DC / 1.5 A (power adapter included) Power consumption: ≤ 10 W (without HDD) Operation temp: -10 °C ... 45 °C Weight: 1.3 kg ( Recorder with HDD ) Dimensions: 260  x 248  x 48 mm Supported languages: Polish, English

Standard:	TCP/IP
Sensor:	1/2.8 " Progressive Scan CMOS
Matrix size:	2.1 Mpx
Resolution:	1920 x 1080  - 1080p
Lens:	2.8 mm
View angle:	102 °
Range of IR illumination:	30 m
Audio:	Microphone built-in, Audio transmission via network
Image compression method:	H.265 / H.264
Main stream frame rate:	25 fps @ 1080p
Network protocols:	TCP, DHCP
ONVIF:
Network interface:	Ethernet : 100 Mbps Wi-Fi IEEE 802.11 b/g/n - 2.4 GHz
WEB Server:
Mobile phones support:	Access by a cloud (P2P) Android: IMOU free application iOS (iPhone): IMOU free application
Default admin user / password:	admin / - The administrator password should be set at the first start
Default IP address:	DHCP
Web browser access ports:
PC client access ports:
Mobile client access ports:
ONVIF port:
RTSP URL:
Memory card slot:	Micro SD memory cards up to 256GB support (possible local recording)
Main features:	Wi-Fi Module - IEEE 802.11 b/g/n, Range : 50 m (open area) Motion Detection People detection D-ZOOM - Digital Zoom : 16x
Power supply:	12 V DC / 0.5 A (power adapter included)
Power consumption:	< 3.5 W
"Index of Protection":	IP67
Weight:	0.25 kg
Dimensions:	148  x 74  x 74 mm
Supported languages:

Connecting cable:
Manufacturer / Brand:	IMOU
Guarantee:	2 years
