Описание
1/2.8" 4Megapixel CMOS
5x optical zoom
Max. 25/30fps@4M
IR distance up to 50 m
Warm light illumination distance up to 30 m
SMD 3.0
Perimeter protection
Face detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out
Built-in Mic and Speaker for Two-way Talk
12 VDC/PoE power supply
IP66
Sound and light alarm (red and blue lights)
Спецификации
Код
SD3E405DB-GNY-A-PV1
Срок доставки 2-5 рабочих дней.
4 шт.
Дополнительная информация
Сайт продавца
https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD3/SD3E405DB-GNY-A-PV1
Гарантия
36
Код категории
FNC
Высота блока
0.29
Длина блока
0.25
Ширина блока
0.19
Units per Shipping Box
1
Unit Calculated Volume
0.01378 cubm
Unit Calculated Weight
2.05 kg
Summary

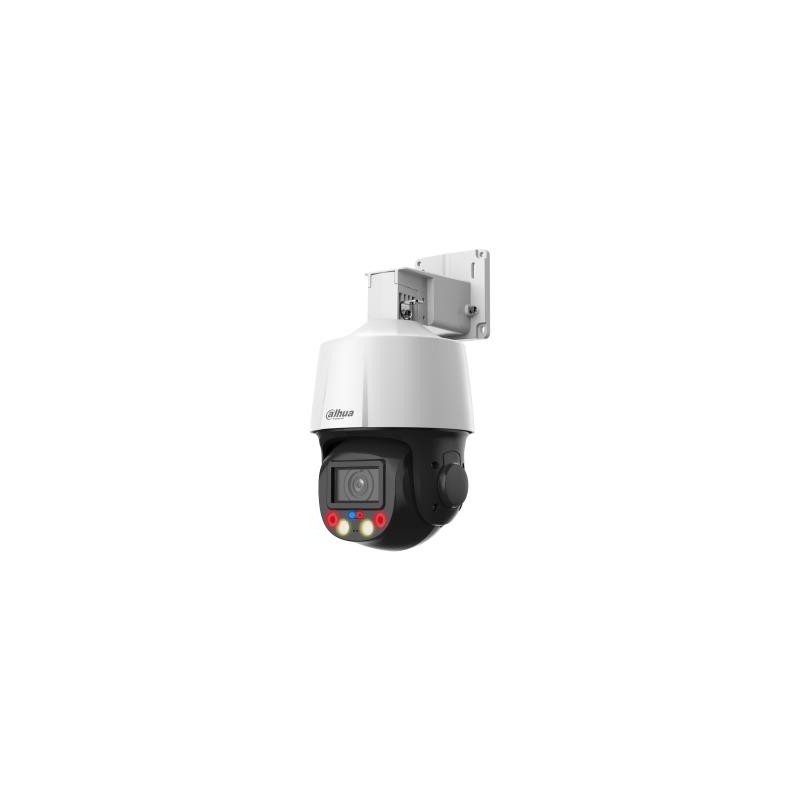

Dahua Technology WizSense SD3E405DB-GNY-A-PV1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Ti
Weight & dimensions (Width)
140 mm
Weight & dimensions (Depth)
142.6 mm
Weight & dimensions (Height)
236.1 mm
Weight & dimensions (Weight)
1500 g
Packaging data (Package weight)
2100 g
Performance (Certification)
CE: EN55032/EN55024/EN50130-4 FCC: Part15 B, ANSI C63.4-2014
Operational conditions (Operating temperature (T-T))
-30 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
15 W
Power (Power consumption (typical))
4.5 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Turret
Camera (Camera shutter speed)
1/1 - 1/30000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
512 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Storage (RAM capacity)
512 MB
Design (International Protection (IP) code)
IP66
Design (Mounting type)
Ceiling/wall
Performance (Connectivity technology)
Wired
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Image sensor (Optical sensor size)
1/2.8 "
Lens system (Number of lenses)
1
Lens system (Zoom capability)
Yes
Night vision (Night vision)
Yes
Night vision (Night vision distance)
50 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2560 x 1440 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
2D noise reduction,3D noise reduction
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Abandoned object/Face detection/Human detection/Intrusion/Missing object/Tripwire/Vehicle detection
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Focal length range)
2.7 - 13.5 mm
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Audio (Audio input channels)
1.0 channels
Camera (Minimum illumination)
0.0005 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
3
Video (Gain control type)
Auto/Manual
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Image stabilizer)
Yes
Video (Video compression formats)
H.264/H.264+/H.264B/H.265/H.265+/M-JPEG
Camera (Pan range)
0 - 355
Camera (Tilt angle range)
-15 - 90
Camera (White balance)
Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 288/640 x 480 (VGA)/704 x 576
Video (Video streaming)
Yes
Audio (Signal-to-Noise Ratio (SNR))
55 dB
Network (Streaming method)
Multicast/Unicast
Network (Supported network protocols)
FTP RTMP IPv6 Bonjour IPv4 DNS RTCP PPPoE NTP RTP 802.1x HTTPS SNMP TCP/IP DDNS UPnP NFS ICMP UDP IGMP SMB HTTP SSL DHCP SMTP Qos RTSP ARP
Storage (ROM capacity)
128 MB
Security (Active tampering alarm)
Yes
Management features (Management software)
DMSS DSS Pro
Lens system (Closest focusing distance)
1.5 m
Night vision (Number of illumination LEDs)
6
Network (Number of users)
20 user(s)
Lens system (Detect distance)
270 m
Lens system (Identify distance)
27 m
Lens system (Observe distance)
106.6 m
Lens system (Recognize distance)
54 m
Audio (Voice codecs)
G.711a/G.711Mu/G.722.1/G.726/MP2L2/PCM
Performance (PTZ control)
Yes
Camera (Pan preset speed)
35.7 /sec
Camera (Tilt preset speed)
27.1 /sec
Lens system (Auto focus)
Yes
Lens system (Minimum aperture number)
1.6
Performance (Preset points)
Yes
Camera (Tilt speed)
25.8 /sec
Lens system (Focus)
Motorized/Manual
Lens system (Digital zoom)
16 x
Lens system (Optical zoom)
5 x
Camera (Pan speed)
36 /sec
Performance (Auto-tracking)
Yes
Специальные референции
ean13
6923172548184
MPN
1454096
