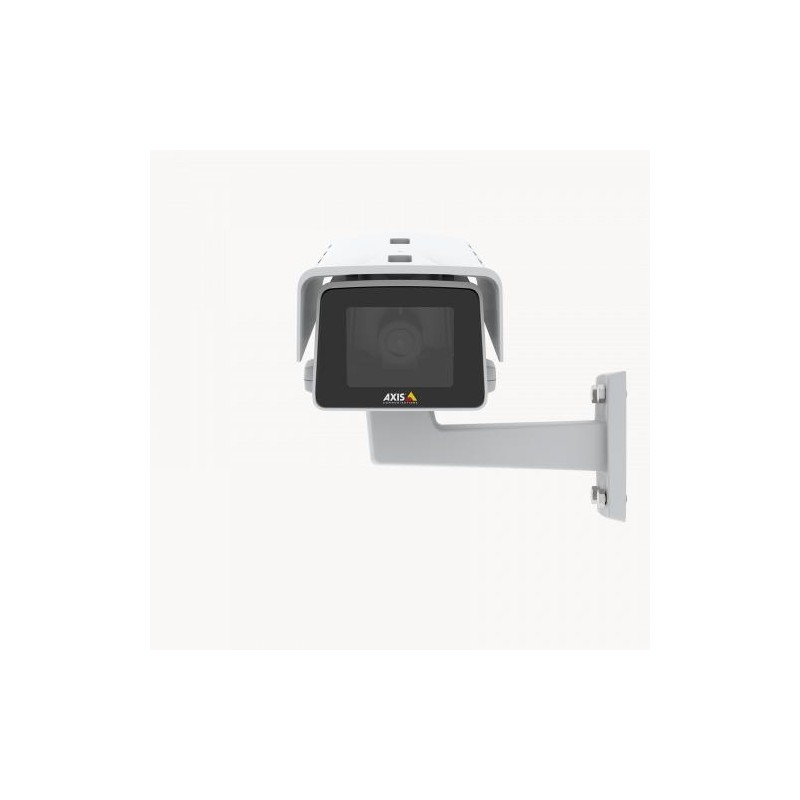

NET CAMERA M1135-E 2MP BULLET/02485-001 AXIS

Дополнительная информация

Сайт продавца

https://www.axis.com/products/axis-m1135-e-mk-ii support-and-resources

Гарантия

60

Модель

02485-001

Код категории

FNC

Высота блока

0.12

Длина блока

0.35

Ширина блока

0.25

Units per Shipping Box

1

Unit Calculated Volume

0.0105 cubm

Unit Calculated Weight

2 kg

Summary

Axis 02485-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 90 , Lens viewing

Weight & dimensions (Width)

143 mm

Weight & dimensions (Depth)

317 mm

Weight & dimensions (Height)

108 mm

Logistics data (Harmonized System (HS) code)

85258900

Operational conditions (Operating temperature (T-T))

-20 - 50 C

Operational conditions (Storage relative humidity (H-H))

5 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 65 C

Network (Ethernet LAN)

Yes

Design (Product colour)

White

Power (Power consumption (max))

6.6 W

Power (Power consumption (typical))

4.4 W

Weight & dimensions (Depth (with stand))

372 mm

Weight & dimensions (Height (with stand))

240 mm

Weight & dimensions (Weight (with stand))

1800 g

Weight & dimensions (Width (with stand))

143 mm

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Operational conditions (Operating relative humidity (H-H))

10 - 100 %

Design (Form factor)

Box

Audio (Audio system)

2-way

Power (Power source type)

DC,PoE

Performance (Wide Dynamic Range (WDR))

Yes

Design (IK code)

IK10

Design (International Protection (IP) code)

IP66

Design (Mounting type)

Wall

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, horizontal)

90

Camera (Lens viewing angle, vertical)

49

Image sensor (Optical sensor size)

1/2.9 "

Night vision (Night vision)

Yes

Video (Frame rate)

30 fps

Video (Maximum resolution)

1920 x 1080 pixels

Video (Total megapixels)

2 MP

Power (DC output voltage)

10,12,15,16,24,28

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

3 - 10.5 mm

Camera (Minimum illumination)

0.1 lx

Video (Video compression formats)

H.264/H.265/MPEG4

Video (Supported graphics resolutions)

160 x 90

Video (Video formats supported)

H.264/H.265

Power (Power consumption (Power over Ethernet (PoE)))

4.5 W

Storage (Flash memory)

512 MB

Network (Networking standards)

IEEE 802.3af/IEEE 802.3at

Performance (PTZ control)

Yes

Performance (PTZ modes)

Digital PTZ

Специальные референции

ean13

7331021078253

MPN

1373882
