Описание
Outputs 180° wide angle splicing image Outputs max. 8 MP (4096 × 1800)@25 fps H.265 codec, high compression rate, ultra-low bit rate Built-in warm light, and the max. illumination distance is 40 m ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk 12 VDC/PoE power supply, easy for installation IP67 protection EPTZ: Enlarge and track the targets of intelligent alarms SMD
Спецификации
Код
PDW5849A180E2ASTE0360B
Дополнительная информация
Сайт продавца
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/5-Series/Full-color/IPC-PDW5849-A180-E2-ASTE
Гарантия
36
Модель
PDW5849-A180-E2-ASTE-0360B
Код категории
FNC
Высота блока
0.17
Длина блока
0.17
Ширина блока
0.17
Units per Shipping Box
1
Unit Calculated Volume
0.004913 cubm
Unit Calculated Weight
1.2 kg
Summary

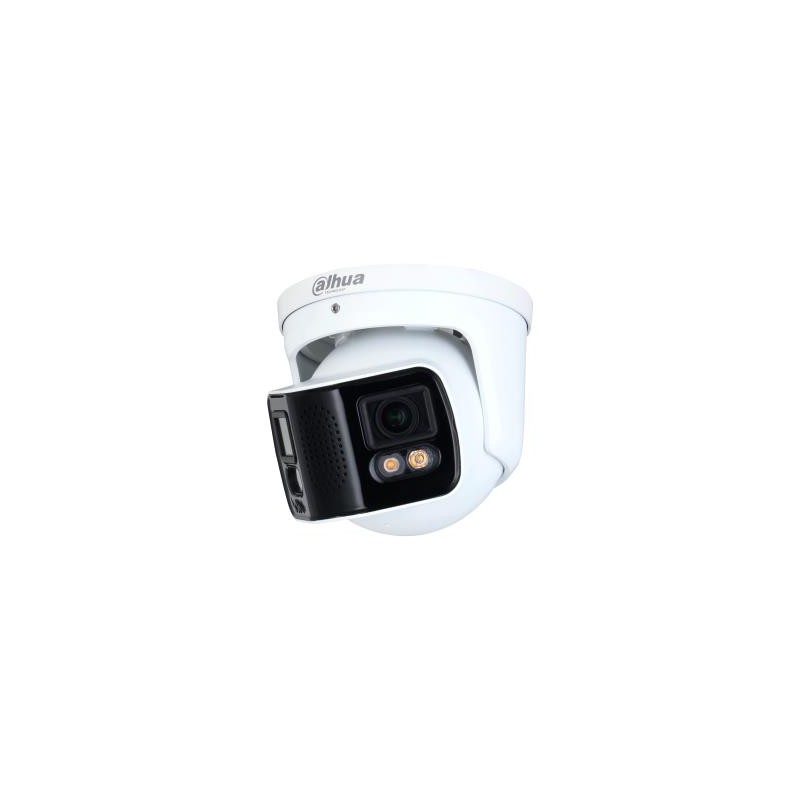

Dahua Technology WizMind DH-IPC-PDW5849-A180-E2-ASTE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 360 , Lens viewing
Weight & dimensions (Height)
131.9 mm
Weight & dimensions (Weight)
990 g
Packaging data (Package weight)
1150 g
Performance (Certification)
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
122 mm
Audio (Audio output channels)
1.0 channels
Network (Ethernet LAN)
Yes
Design (Product colour)
White
Power (Power consumption (max))
10.5 W
Power (Power consumption (typical))
4.8 W
Design (Housing material)
Metal
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 -1/100,000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
512 GB
Power (Power source type)
DC,PoE
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, horizontal)
180
Camera (Lens viewing angle, vertical)
48
Image sensor (Optical sensor size)
1/1.8 "
Lens system (Number of lenses)
1
Night vision (Night vision)
Yes
Night vision (Night vision distance)
40 m
Video (Frame rate)
25 fps
Video (Maximum resolution)
4096 x 1800 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Number of effective pixels (H x V))
4096 x 1800 pixels
Image sensor (Sensor type)
CMOS
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Lens system (Fixed focal length)
3.6 mm
Audio (Audio input channels)
1.0 channels
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1
Video (Gain control type)
Auto
Camera (Camera shutter type)
Electronic
Security (Video motion detection)
Yes
Performance (Built-in light)
Yes
Video (Video compression formats)
H.264/H.264+/H.264B/H.264H/H.265/H.265+
Image sensor (Number of sensors)
2
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
4 - 90
Camera (White balance)
Auto/Manual/Natural/Outdoor/Street lamp
Video (Supported graphics resolutions)
1920 x 832/2880 x 1264/3840 x 1080/3840 x 1680/4096 x 1800
Video (Video formats supported)
H.264/H.264+/H.264B/H.265/H.265+
Video (Video streaming)
Yes
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Supported network protocols)
IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP Bonjour
Storage (Internal memory)
1000 MB
Storage (ROM capacity)
128 MB
Management features (Management software)
Smart PSS DSS DMSS
Management features (Web browser)
Yes
Lens system (Closest focusing distance)
3.6 m
Network (Number of users)
20 user(s)
Power (Power consumption (Power over Ethernet (PoE)))
5.5 W
Performance (Dynamic range)
140 dB
Lens system (Detect distance)
70.3 m
Lens system (Identify distance)
7 m
Lens system (Observe distance)
281 m
Lens system (Recognize distance)
14.1 m
Audio (Voice codecs)
G.711a/G.711Mu/G.723/G.726/PCM
Video (Video recording)
Yes
Camera (Number of Privacy masking areas)
4
Video (Video intelligence analytic)
Yes
Network (Client interoperability)
ONVIF (Profile S/Profile G/Profile T) CGI Milestone
Panoramic camera (Bit rate control (panoramic camera))
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Panoramic camera (Bit rate (panoramic camera))
H.264: 9 kbps-8192 kbps H.265: 9 kbps-8192 kbps
Специальные референции
ean13
6923172585554
MPN
1421224
