Описание

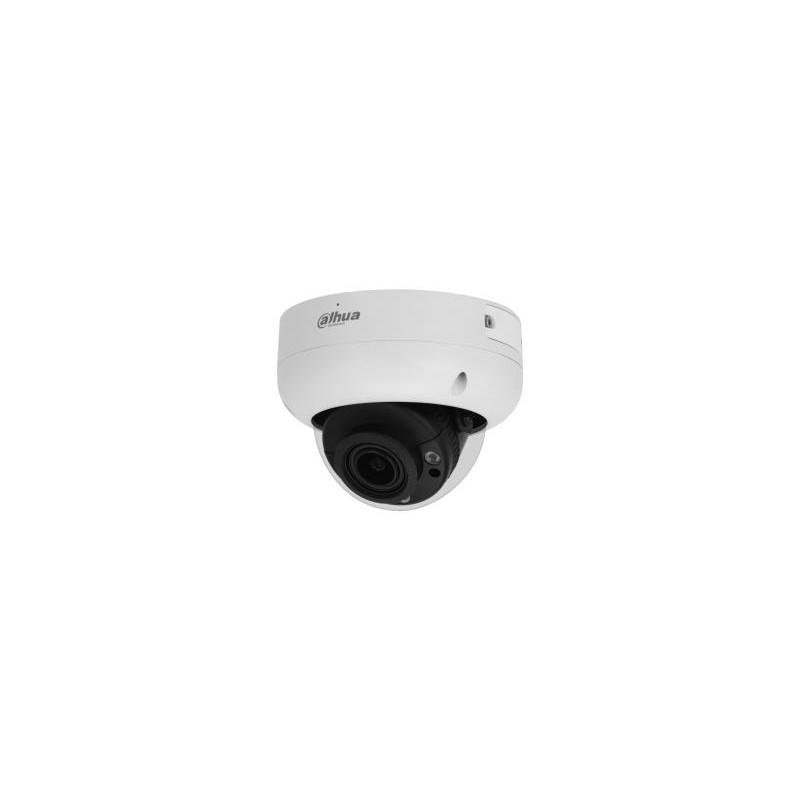

5MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 40 m ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic 12 VDC/PoE power supply, easy for installation IP67, IK10 protection SMD 4.0, AI SSA
Спецификации
Код
HDBW3541R-ZAS-27135-S2
Срок доставки 2-5 рабочих дней.
30 шт.
Дополнительная информация
Сайт продавца
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDBW3541R-ZAS-S2 S2
Гарантия
36
Модель
IPC-HDBW3541R-ZAS-27135-S2
Код категории
FNC
Высота блока
0.165
Длина блока
0.19
Ширина блока
0.19
Units per Shipping Box
1
Unit Calculated Volume
0.005956 cubm
Unit Calculated Weight
0.8 kg
Summary
Dahua Technology WizSense HDBW3541R-ZAS-27135-S2. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Angle of rotation: 355 , Lens viewing a
Weight & dimensions (Height)
122 mm
Weight & dimensions (Weight)
713 g
Packaging data (Package weight)
986 g
Operational conditions (Operating temperature (T-T))
-30 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
94 mm
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
Black/White
Power (Power consumption (max))
9.2 W
Power (Power consumption (typical))
4 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Audio (Built-in microphone)
Yes
Network (Ethernet interface type)
Fast Ethernet
Design (IK code)
IK10
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/wall
Performance (Connectivity technology)
Wired
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, diagonal)
138 - 36
Camera (Lens viewing angle, horizontal)
114 - 32
Camera (Lens viewing angle, vertical)
58 - 17
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
40 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2960 x 1668 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
5 MP
Storage (Built-in HDD)
No
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Focal length range)
2.7 - 13.5 mm
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Audio (Audio input channels)
1.0 channels
Camera (Minimum illumination)
0 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Video (Gain control type)
Auto
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Video (Image stabilizer)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
355
Camera (Pan range)
0 - 355
Camera (Tilt angle range)
0 - 80
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP
Storage (Internal memory)
512 MB
Storage (ROM capacity)
128 MB
Management features (Web browser)
Yes
Video (Smart IR)
Yes
Lens system (Closest focusing distance)
0.8 m
Night vision (Number of illumination LEDs)
3
Network (Number of users)
20 user(s)
Security (Mirror)
Yes
Management features (Web-based management)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
4.9 W
Performance (Dynamic range)
120 dB
Lens system (Detect distance (tele))
210 m
Lens system (Detect distance (wide))
64 m
Lens system (Identify distance (tele))
21 m
Lens system (Identify distance (wide))
6.4 m
Lens system (Observe distance (tele))
84 m
Lens system (Observe distance (wide))
25.6 m
Lens system (Recognize distance (tele))
42 m
Lens system (Recognize distance (wide))
12.8 m
Video (Bit rate)
H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
Audio (Voice codecs)
G.711a/G.711Mu/G.723/G.726/PCM
Network (Networking standards)
IEEE 802.3af
Camera (Number of Privacy masking areas)
4
Management features (Behavior analysis)
Intrusion detection
Lens system (Minimum aperture number)
1.5
Lens system (Focus)
motorized
Design (Fog proof)
Yes
Специальные референции
ean13
6923172542267
MPN
1387135
