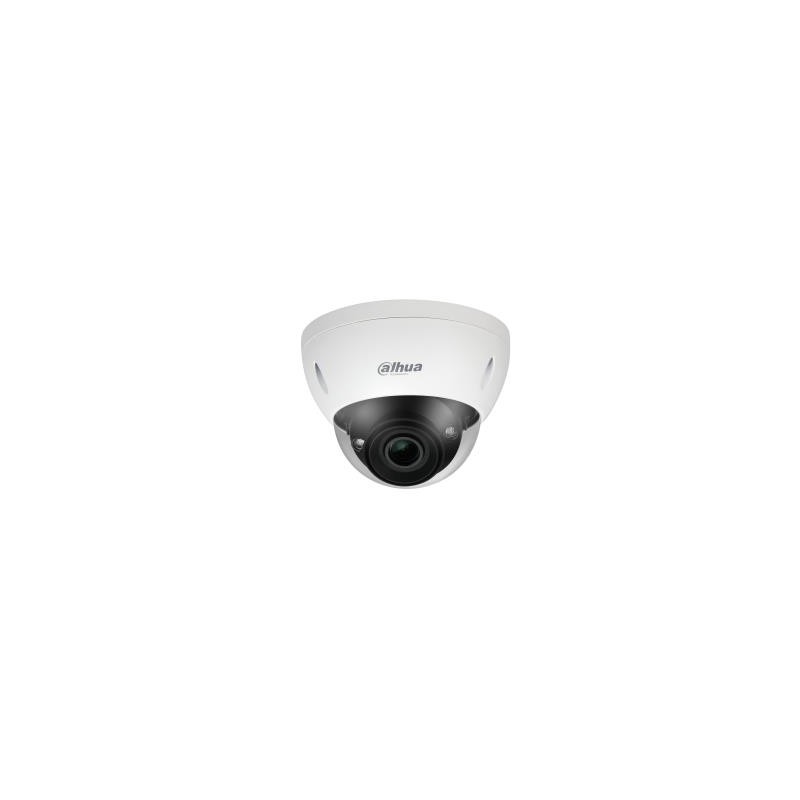

NET CAMERA 5MP IR DOME/HDBW5541E-ZE-27135-S3 DAHUA

Дополнительная информация

Сайт продавца

https://www.dahuasecurity.com/products/productDetail/33047

Гарантия

36

Модель

IPC-HDBW5541E-ZE-27135-S3

Код категории

FNC

Units per Shipping Box

1

Unit Calculated Volume

0.007447 cubm

Unit Calculated Weight

1.22 kg

Summary

Dahua Technology Pro IPC-HDBW5541E-ZE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Cube. Minimum illumination: 0.002 lx, Angle of rotatio

Weight & dimensions (Depth)

159 mm

Weight & dimensions (Height)

117.9 mm

Weight & dimensions (Weight)

950 g

System requirements (Windows operating systems supported)

Yes

Performance (Plug and Play)

Yes

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage temperature (T-T))

-30 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (AC input voltage)

24 V

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Cube

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

AC,DC,PoE

Storage (Card reader integrated)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/wall

Performance (Connectivity technology)

Wired

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, horizontal)

43

Camera (Lens viewing angle, vertical)

23

Image sensor (Optical sensor size)

1/1.8 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

80 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Number of effective pixels (H x V))

2688 x 1520 pixels

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

8 - 32 mm

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.002 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Fixed focus)

Yes

Lens system (Maximum aperture number)

1.6

Video (Flip & mirror)

Yes

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264+/H.265/H.265 Pro/H.265 Pro+/H.265+

Image sensor (Number of sensors)

1

Video (Digital Wide Dynamic Range (DWDR))

Yes

Camera (Angle of rotation)

355

Camera (Pan range)

0 - 355

Camera (Tilt angle range)

0 - 65

Camera (White balance)

Auto/Lamp/Manual/Natural/Outdoor

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 576

Video (Video streaming)

Yes

Audio (Audio formats supported)

AAC

Network (Quality of Service (QoS) support)

Yes

Network (Streaming method)

Multicast/Unicast

Network (Supported network protocols)

IPv4 IPv6 HTTP HTTPS TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE SNMP

Security (Active tampering alarm)

Yes

Management features (Management software)

Smart PSS, DSS, DMSS

Management features (Web browser)

Yes

Video (Smart IR)

Yes

Night vision (Number of illumination LEDs)

3

Network (Number of users)

20 user(s)

Security (Mirror)

Yes

Security (Privacy protection)

Yes

Management features (Web-based management)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

12.4 W

Lens system (Normal focusing range)

2.5 - 6 m

Video (Bit rate)

H.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps- 8192 Kbps

Video (Supported video modes)

1080p/720p

Audio (Voice codecs)

G.711a/G.711alaw/G.723/G.723.1/G.726/G.726-32

Security (Motion sensor)

Yes

Network (Networking standards)

IEEE 802.1x

Lens system (Auto focus)

Yes

Video (Video intelligence analytic)

Yes

Design (Fog proof)

Yes

Performance (People counting function)

Yes

Camera (Auto flip)

Yes

Специальные референции

ean13

6923172588012

MPN

1430663
