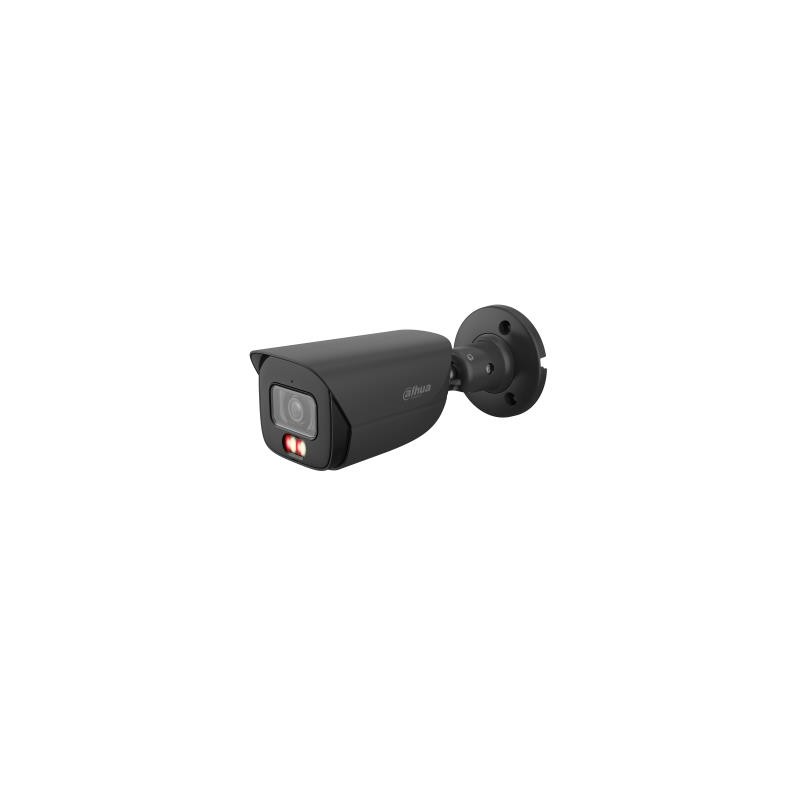

Type HDTV/Megapixel/Outdoor | Resolution 6 Mega Pixel | Focal Length 2.8 mm | Sensor size 1/2.7" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0005 Lux | Effective pixels 3288 (H) × 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 512GB | Power options PoE/12V | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 192.7 mm 70.5 mm 66.4 mm
> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm. Field of View 110°
Resolution 3 Mega Pixel | Focal Length 4mm | IR Illumination | Sensor size 1/2.8” Progressive Scan CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.005 Lux | Power options PoE/12V | Power supply requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0) | Operating temperature range -30–60 °C | Included Accessories...
Type Fixed | Resolution 5 Mega Pixel | Focal Length 2.8mm | Microphone Built-in | Power options PoE/12V | Power supply requirements 12V 1A, PoE Standard 802.3at | Operating temperature range −25 °C to +40 °C | Included Accessories Installation template;Installation kit;Quick start guide | Colour White | Dimensions 103 × 98 × 98 mm
Type Fixed | Resolution 8 Mega Pixel | Focal Length 2.8mm | Microphone Built-in | Power options PoE/12V | Power supply requirements 12V 1A, PoE Standard 802.3at | Operating temperature range −25 °C to +40 °C | Included Accessories Installation template;Installation kit;Quick start guide | Colour White | Dimensions 103 × 98 × 98 mm
Sensor size 1/3" CMOS | Resolution 5 Mega Pixel | Microphone Built-in | Supports card capacities up to 256GB | Power options 5V | Power supply requirements 5 VDC, 1 A | Colour White | Included Accessories power supply | Dimensions φ84 mm × 123.8 mm | box quantity 1
Sensor size 1/3" CMOS | Resolution 4 Mega Pixel | Microphone Built-in | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements Basic: 2.04 W (12 VDC); 4.7 W (PoE)/ Max.: 2.89 W (12 VDC); 5.85 W (PoE) | Colour White | Included Accessories power supply | Dimensions 64 mm × 100 mm × 34 mm | box quantity 20
Type Fixed Dome/Outdoor | Resolution 4 Mega Pixel | Focal Length 2.1 mm | IR Illumination | Sensor size 1/2.7" CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.001 Lux | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements PoE / 12VDC power | Environment Outdoor | Operating temperature range -40°C~+60°C...
Type Fixed/Outdoor | Resolution 4 Mega Pixel | Focal Length 2.8mm | Sensor size 1/1.79” Progressive Scan CMOS | Lens Mount M12 | Min. Illumination 0.0005 Lux | Electronic Shutter Speed 1/3 to 1/10000 s | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements • 12V DC ± 5%, Max. 15.6 W, 5.5 mm Coaxial Power Plug • PoE:...
Type HDTV/Megapixel/Outdoor | Resolution 6 Mega Pixel | Focal Length 2.8 mm | Sensor size 1/2.7" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0005 Lux | Effective pixels 3288 (H) × 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 512GB | Power options PoE/12V | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 192.7 mm 70.5 mm 66.4 mm
