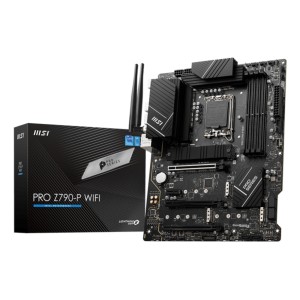

Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4x

Дополнительная информация

Сайт продавца

https://www.msi.com/Motherboard/PRO-Z790-P-WIFI/Overview

Гарантия

36

Модель

PRO Z790-P WIFI

Код категории

MBI

Высота блока

0.068

Длина блока

0.347

Ширина блока

0.27

Units per Shipping Box

1

Unit Calculated Volume

0.006371 cubm

Unit Calculated Weight

1.56 kg

CnCode

84733020

Summary

MSI PRO Z790-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, ECC сompatibility: Non-ECC. Supported sto

Weight & dimensions (Width)

304.8 mm

Weight & dimensions (Depth)

243.84 mm

Packaging content (Cables included)

SATA

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)

Features (Product colour)

Black

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 6 (802.11ax)

Features (Component for)

PC

Packaging content (Bundled software)

Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition

Memory (Maximum internal memory)

128 GB

Graphics (On-board graphics card)

No

Processor (Compatible processor series)

Intel Celeron /Intel Pentium Gold

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

7000 MHz

Memory (Supported memory clock speeds)

4800/5000/5200/5400/5800/6000/6400/6600/6800/7000 MHz

Memory (Supported memory types)

DDR5-SDRAM

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

6

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

4

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

4

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel Z790

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

4

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Features (Audio chip)

Realtek ALC897

BIOS (System Management BIOS (SMBIOS) version)

3.5

Memory (ECC сompatibility)

Non-ECC

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Storage controllers (Internal storage capacity)

10 GB

Специальные референции

ean13

4711377015738

MPN

1391417
