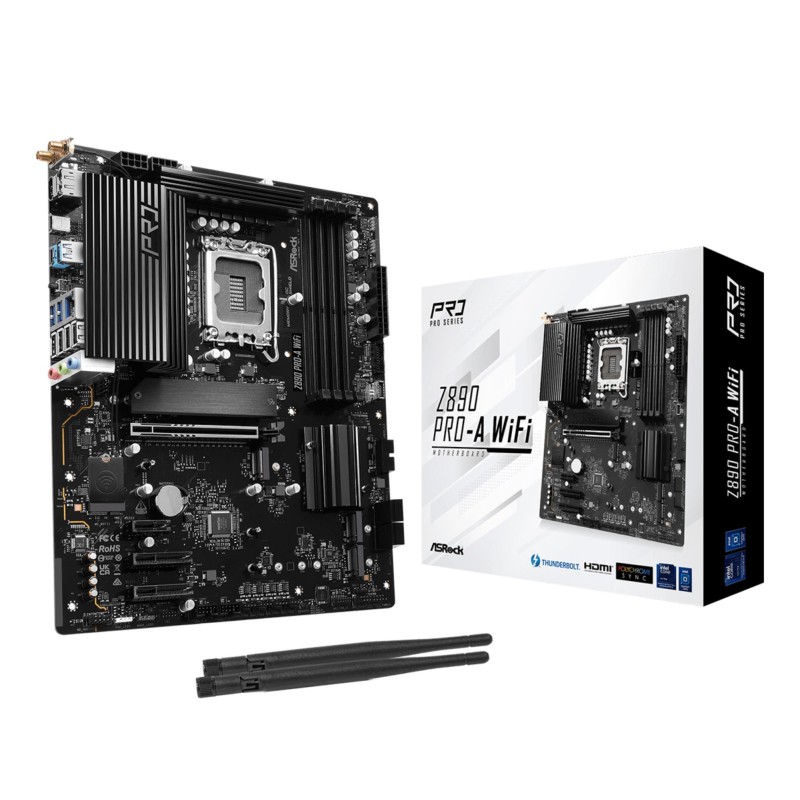

Mainboard|ASROCK|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|Z890PRO-AWIFI

Дополнительная информация

Сайт продавца

https://www.asrock.com/MB/Intel/Z890%20Pro-A%20WiFi/index.asp Overview

Гарантия

36

Модель

Z890 Pro-A WiFi

Код категории

MBI

Высота блока

0.075

Длина блока

0.35

Ширина блока

0.28

Units per Shipping Box

5

Unit Calculated Volume

0.00888 cubm

Unit Calculated Weight

1.9 kg

Summary

Asrock Z890 Pro-A WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supporte

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Packaging content (Cables included)

SATA

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Technical details (Compliance certificates)

CE/Federal Communications Commission (FCC)

Packaging content (Screws included)

Yes

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Features (Component for)

PC

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Network (LAN controller)

Dragon RTL8125BG

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Expansion slots (PCI Express x4 (Gen 4.x) slots)

2

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Supported processor sockets)

LGA 1851

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

9066 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

8

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of chassis fan connectors)

5

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel Z890

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 11 x64

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (Thunderbolt ports quantity)

1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Features (Audio chip)

Realtek ALC897

Memory (ECC сompatibility)

Non-ECC

Internal I/O (Number of CPU fan connectors)

2

Expansion slots (PCI Express x1 (Gen 4.x) slots)

1

Internal I/O (Audio connector)

Yes

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Internal I/O (USB 3.2 Gen 2x2 connectors)

1

Специальные референции

ean13

4710483947544

MPN

1446598
