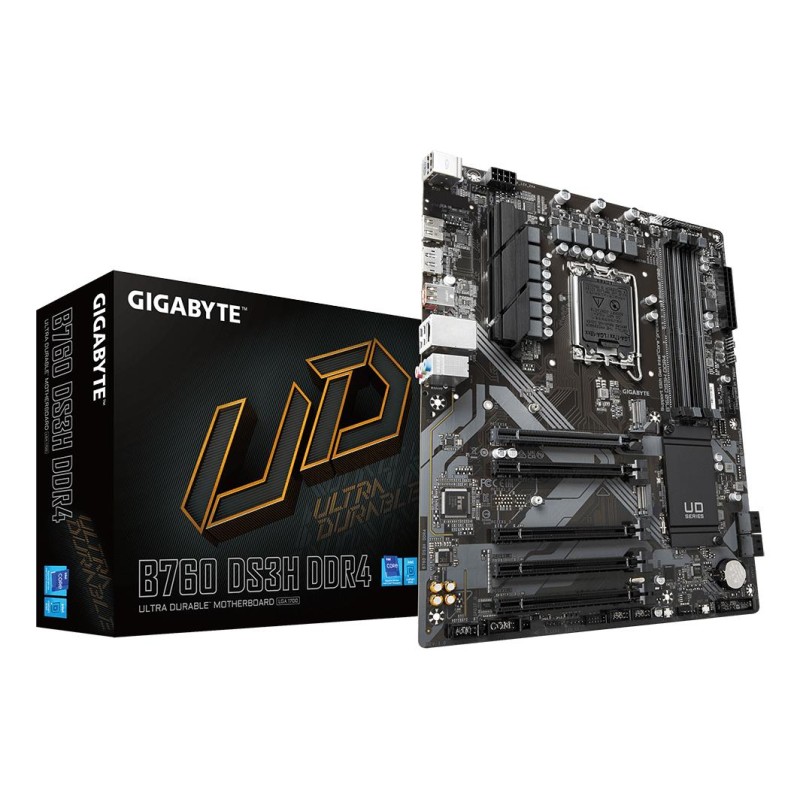

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|ATX|Memory DDR4|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x

Дополнительная информация

Сайт продавца

https://www.gigabyte.com

Гарантия

36

Модель

B760 DS3H DDR4

Код категории

MBI

Высота блока

0.085

Длина блока

0.34

Ширина блока

0.275

Units per Shipping Box

1

Unit Calculated Volume

0.007947 cubm

Unit Calculated Weight

1.2 kg

CnCode

84733020

Summary

GIGABYTE B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

335 mm

Packaging data (Package depth)

270 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

1311 g

Packaging content (Cables included)

SATA

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

Intel

Features (Component for)

PC

Packaging content (Bundled software)

Norton Internet Security

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Battery (Battery weight)

3 g

Processor (Compatible processor series)

Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

5333 MHz

Memory (Supported memory clock speeds)

2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz

Memory (Supported memory types)

DDR4-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (S/PDIF out connector)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

3

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Network (Ethernet interface type)

Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B760 Express

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

2

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Rear panel I/O ports (DisplayPort version)

1.2

Rear panel I/O ports (HDMI version)

2.0

Processor (Maximum internal memory supported by processor)

128 GB

Memory (Supported memory module capacities)

12GB/16GB/1GB/2GB/32GB/4GB/8GB

Graphics (DirectX version)

12.0

Internal I/O (Total number of SATA connectors)

4

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

ECC & Non-ECC

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2304 pixels

Internal I/O (Serial port headers)

1

Rear panel I/O ports (USB connector type)

USB Type-A/USB Type-C

Expansion slots (PCI Express x16 slots)

5

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Специальные референции

ean13

4719331850746

MPN

1390857
