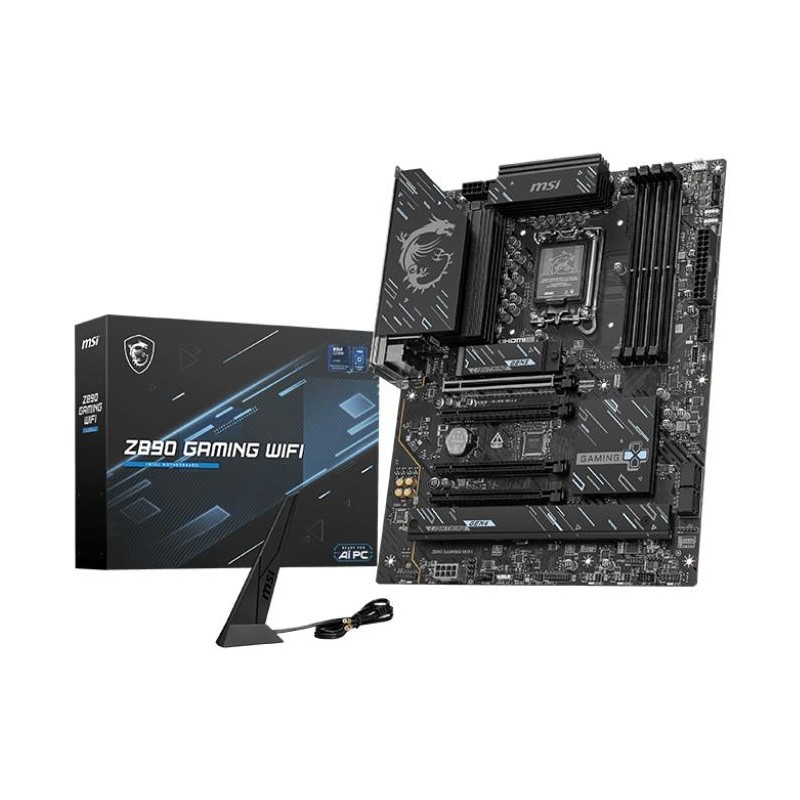

Mainboard|MSI|Intel Z890|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|Z890G

Дополнительная информация

Сайт продавца

https://www.msi.com/Motherboard/Z890-GAMING-WIFI

Гарантия

36

Код категории

MBI

Высота блока

0.07

Длина блока

0.34

Ширина блока

0.27

Units per Shipping Box

5

Unit Calculated Volume

0.008014 cubm

Unit Calculated Weight

1.9 kg

Summary

MSI Z890 GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported

Weight & dimensions (Width)

243.84 mm

Weight & dimensions (Depth)

304.8 mm

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.4

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Features (Product colour)

Black

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Features (Component for)

PC

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Graphics (On-board graphics card)

No

Network (WLAN controller model)

Killer Wi-Fi 7 BE1750

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Expansion slots (PCI Express x4 (Gen 4.x) slots)

2

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Supported processor sockets)

Intel LGA1851

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

8800 MHz

Memory (Supported memory clock speeds)

4800/5600/6400/7200/8800 MHz

Memory (Supported memory types)

DDR5-SDRAM

Storage controllers (Number of HDDs supported)

7

Storage controllers (Number of storage drives supported)

4

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (USB 2.0 connectors)

4

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Network (Ethernet interface type)

5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel Z890

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 11

Expansion slots (Number of M.2 (M) slots)

3

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Thunderbolt ports quantity)

1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

6

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Features (Audio chip)

Realtek ALC897

Internal I/O (Total number of SATA connectors)

4

BIOS (ACPI version)

6.5

BIOS (System Management BIOS (SMBIOS) version)

3.7

Memory (ECC сompatibility)

Non-ECC

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

2280

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Expansion slots (3rd M.2 largest key size)

2280

Internal I/O (Number of EPS power connectors (8-pin))

1

Expansion slots (PCI Express x1 (Gen 4.x) slots)

1

Специальные референции

MPN

1455048
