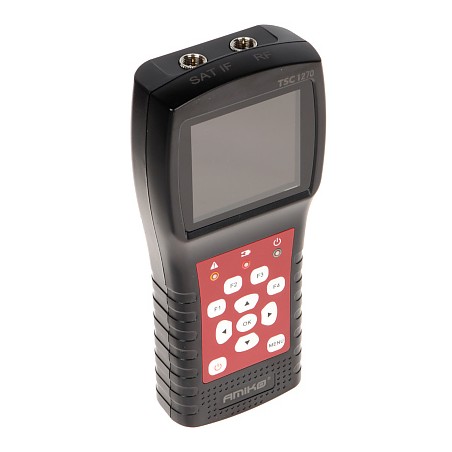

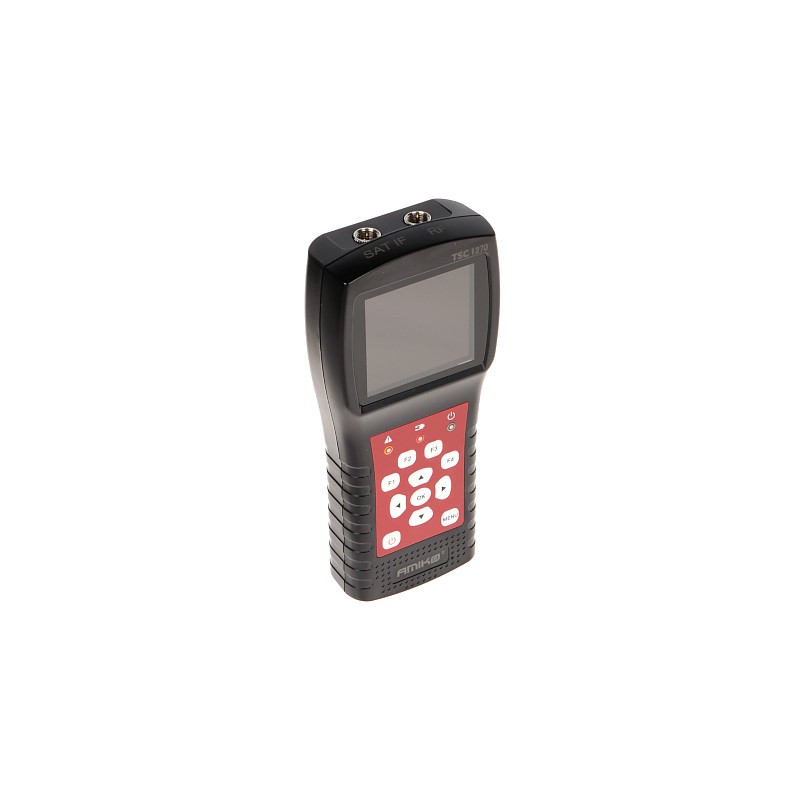

UNIVERSAL METER TSC-1270 DVB-T/T2 DVB-S/S2 DVB-C/C2
196,33 €
С НДС
Доставка 1-5 раб.дня
- The TSC-1270 allows to measure the TV signals at DVB-T/T2, DVB-S/S2, DVB-C/C2 installations
- Readable menu will help the operation for any installer
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
| Output and input: | 1 pcs F socket, 1 pcs IEC socket, 1 pcs mini USB |
| Display: | 400 x 360 px TFT LCD |
| Frequency range: | 42 MHz ... 1005 MHz - DVB-T / DVB-T2 / DVB-C / DVB-C2, 950 MHz ... 2150 MHz - DVB-S / DVB-S2 |
| Signal level: | 35 ... 100 dBµV - DVB-S / DVB-S2 / DVB-C, 30 ... 100 dBµV - DVB-T / DVB-T2 / DVB-C2 |
| LNB power supply: | 13 / 18 V, max. 400 mA |
| Switching between bandwidths: | 0 / 22 kHz |
| DiSEqC: | DiSEqC 1.0, 1.2, USALS, SCD, SCD2 systems support |
| Antenna powering: | 5 / 12 / 18 / 24 V |
| Modulation: | QPSK, 8PSK, 16APSK, 32APSK - DVB-S / DVB-S2 QPSK, 16-QAM, 64-QAM, 256-QAM - DVB-T / DVB-T2 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM, 4096-QAM - DVB-C / DVB-C2 |
| Video signal test: |  |
| Programming and firmware upgrade: | via mini USB port |
| Battery power supply: | Li-Ion battery 7.4 V / 1400 mAh 12 V / 1 A (power adapter included) |
| Main features: | DVB-S/S2 : Power measurement, Measurement of CNR, CBER, VBER (DVBS), LBER (DVBS2), Real-time spectrum analyzer, Possibility of displaying signal parameters for 4 transponders on one screen - Easy identification for Quattro LNB, Satellite identification function, Satellite location function, Calculation of the azimuth and elevation angles, Measurement of azimuth and elevation, DisEqC automatic identification, DVB-T/T2 : Power measurement, Measurement of VBER (DVBT), LBER (DVBT2), SNR i CBER, Signal parameters (strength and quality) for 4 channels can be displayed on one screen, Spectrum analysis, Automatic channel scan DVB-C/C2 : Power measurement, Measurement of BER, PER(DVBC/MCNS), LBER(DVBC2), SNR, Spectrum analysis, Automatic channel scan Analog signal measurement possible Speaker built-in High measurement accuracy The set includes a practical case Estimated battery operation time ~ 3 h |
| Weight: | 0.23 kg |
| Dimensions: | 178 x 81 x 36 mm |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | Amiko |
| Guarantee: | 2 years |
