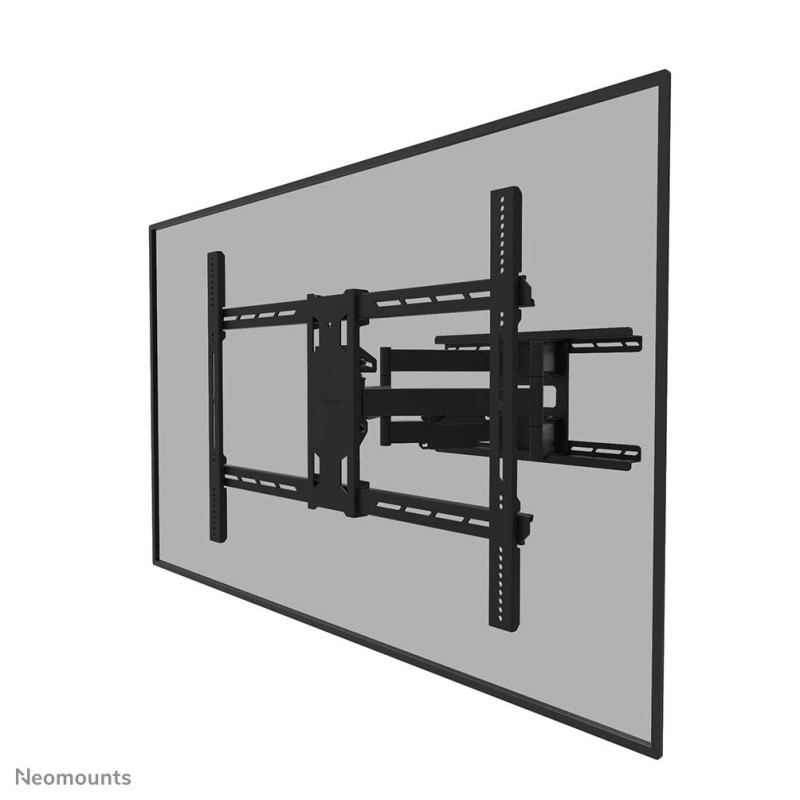

The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
Neomounts WL40S-950BL18 Heavy duty wall mount 55-110" - full motion. Maximum weight capacity: 125 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.79 m (110"), Minimum VESA mount: 300 x 200 mm, Maximum VESA mount: 800 x 600 mm. Height adjus
Weight & dimensions (Width)
880 mm
Weight & dimensions (Depth)
82 mm
Weight & dimensions (Height)
630 mm
Weight & dimensions (Weight)
20400 g
Packaging data (Package width)
450 mm
Packaging data (Package depth)
100 mm
Packaging data (Package height)
950 mm
Packaging data (Package weight)
22000 g
Logistics data (Harmonized System (HS) code)
7326909890
Logistics data (Master (outer) case gross weight)
22000 g
Logistics data (Master (outer) case height)
950 mm
Logistics data (Master (outer) case length)
100 mm
Logistics data (Master (outer) case width)
450 mm
Logistics data (Products per master (outer) case)
1 pc(s)
Technical details (Warranty period)
5 year(s)
Design (Product colour)
Black
Design (Housing material)
Steel
Ergonomics (Height adjustment)
Yes
Ergonomics (Tilt adjustment)
Yes
Ergonomics (Tilt angle range)
-5 - 15
Ergonomics (Pivot angle)
-3 - 3
Ergonomics (Swivel angle range)
-45 - 45
Ergonomics (Swivelling)
Yes
Packaging content (Mounting kit)
Yes
Ergonomics (Cable management)
Yes
Logistics data (Products per pallet (EU))
20 pc(s)
Logistics data (Master (outer) case net weight)
20400 g
Mounting (Maximum screen size)
110 "
Mounting (Maximum VESA mount)
800 x 600 mm
Mounting (Maximum weight capacity)
125 kg
Mounting (Maximum weight capacity (per display))
125 kg
Mounting (Minimum screen size)
55 "
Mounting (Minimum VESA mount)
300 x 200 mm
Mounting (Mounting type)
Wall
Mounting (Number of displays supported)
1
Mounting (Panel mounting interface)
300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/600 x 200/600 x 300/600 x 400/600 x 500/600 x 600/680 x 300/800 x 200/800 x 400/800 x 500/800 x 600 mm
