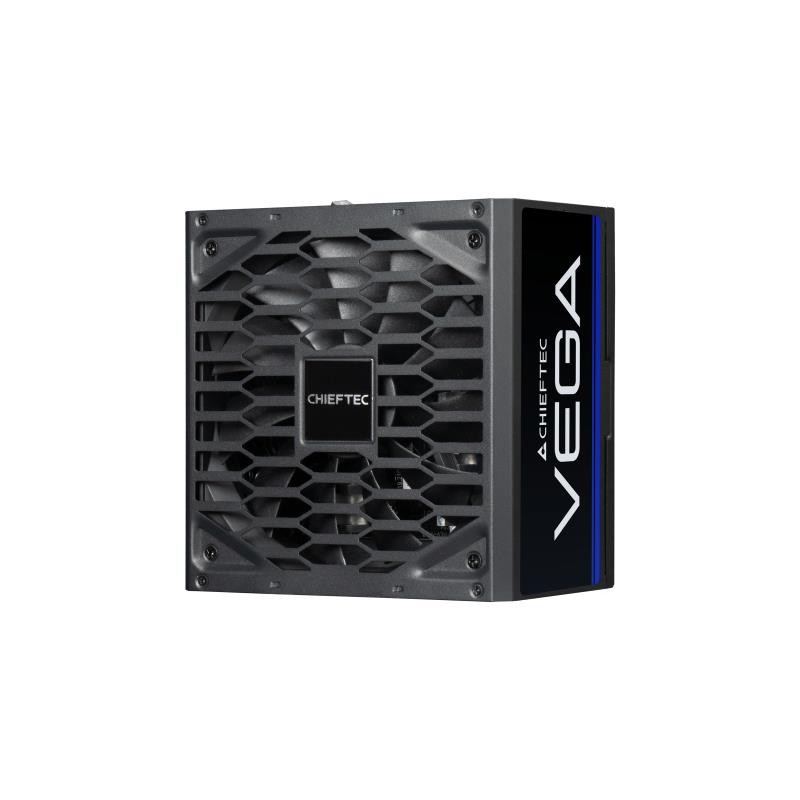

The CHIEFTEC VEGA Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality. The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases. Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.
Compliant with ATX 12V 3.1
Support PCIe GEN5
80PLUS Gold certified efficiency
LLC Half-Bridge converter with DC to DC technology
Chieftec Vega PPG-850-S Watt. Total power: 850 W, AC input voltage: 100 - 240 V, Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection.... Motherboard power connector: 20+4 pin ATX, Mother
Weight & dimensions (Weight)
2070 g
Packaging data (Package weight)
2540 g
Design (Product colour)
Black
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Certificates (Certification)
80PLUS Gold
Design (Fan diameter)
135 mm
Design (Illumination)
No
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Surge and inrush/Under voltage
Power (Total power)
850 W
Ports & interfaces (ATX Power connector (24-pin))
Yes
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
600 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power cable length)
400 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Ports & interfaces (SATA power cable length)
400 mm
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Performance (ATX version)
3.1
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
4
Performance (Bearing technology)
FDB
Ports & interfaces (CPU power cable length)
650 mm
Ports & interfaces (EPS power connector (8-pin))
Yes
Ports & interfaces (PCI Express power cable length)
600 mm
Ports & interfaces (PCI Express power connectors (12+4 pin))
500 W | 200 - 240 V | Efficiency 85 % | 80 PLUS certification 80 PLUS Bronze | Supported motherboard form factors ATX | PC | PS/2 | Fan diameter 120 mm | Weight 1.44 kg | Package type Box
