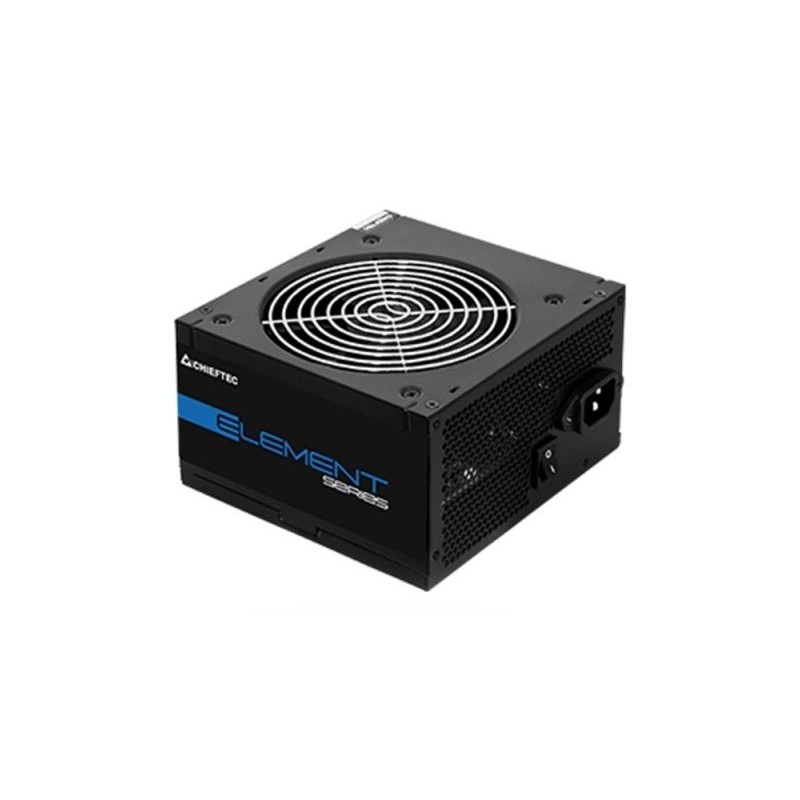

The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
Chieftec ELP-700S. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PS
Weight & dimensions (Width)
140 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
1650 g
Packaging data (Package weight)
1900 g
Packaging data (Package type)
Box
Certificates (Compliance certificates)
CB/CE/EAC/RoHS
Design (Product colour)
Black
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
200 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
5 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
648 W
Power (Combined power (+3.3V))
130 W
Power (Combined power (+5V))
130 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
54 A
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
22 A
Power (Max output current (+5Vsb))
2.5 A
Power (Power protection features)
Over power/Over voltage/Short circuit/Under voltage
Power (Total power)
700 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
650 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (SATA power cable length)
150/500 mm
Performance (80 PLUS certification)
80 PLUS Bronze
Performance (Power supply unit (PSU) form factor)
PS/2
Performance (Purpose)
PC
Performance (Supported motherboard form factors)
ATX
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Power (Efficiency)
85 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
1
Power (Power factor)
0.9
Ports & interfaces (PCI Express connector)
Yes
Ports & interfaces (EPS power connector (4+4 pin))
