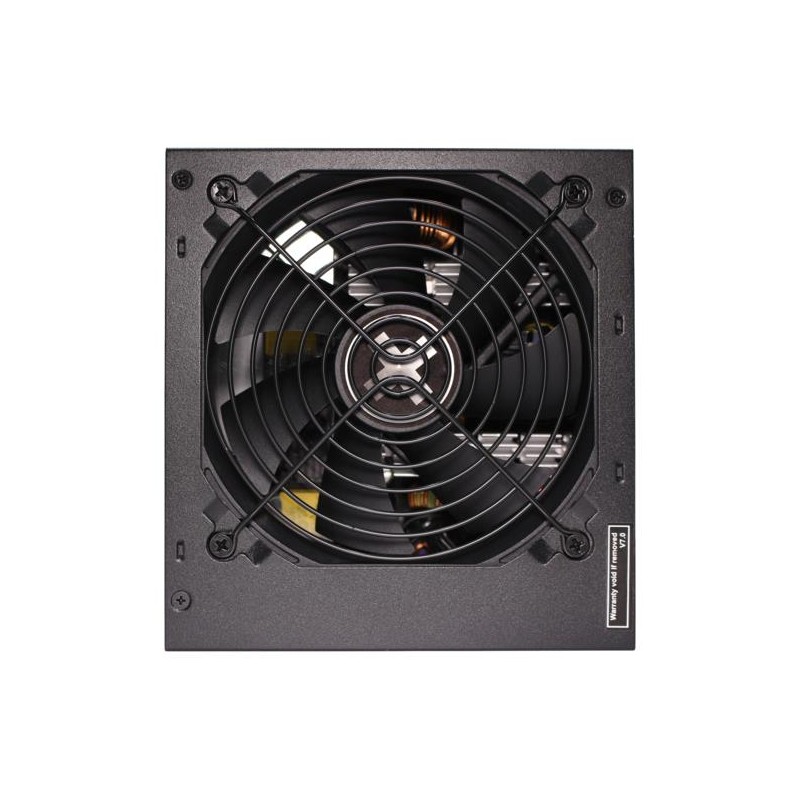

The C+Series is a power supply series with the ATX standard 2.52 and black ribbon cables. The power supplies are designed for office and home computers, but can also be installed in PCs that are occasionally used for gaming. The black design of the power supplies and the elegant flat ribbon cables blend visually into any PC build. The power supplies deliver stable voltages with high efficiency (80+ Standard) to meet the ErP2014 standard. The integrated black 120mm fan provides silent cooling. Four integrated safety circuits ensure safe operation at all times.
Xilence Performance C XP650R6.2. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU
Design (Product colour)
Black
Power (AC input frequency)
50 Hz
Power (AC input voltage)
200 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
10 A
Design (Fan diameter)
120 mm
Power (Max output current (+3.3V))
23 A
Power (Max output current (+5V))
17 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.5 A
Power (Power protection features)
Over voltage/Overload/Short circuit/Under voltage
Power (Total power)
650 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
500 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
5
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Power (Efficiency)
82 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Performance (Bearing technology)
Hypro Bearing
Power (Max output current (+12V1))
48 A
Ports & interfaces (Number of PATA power connectors)
