Описание

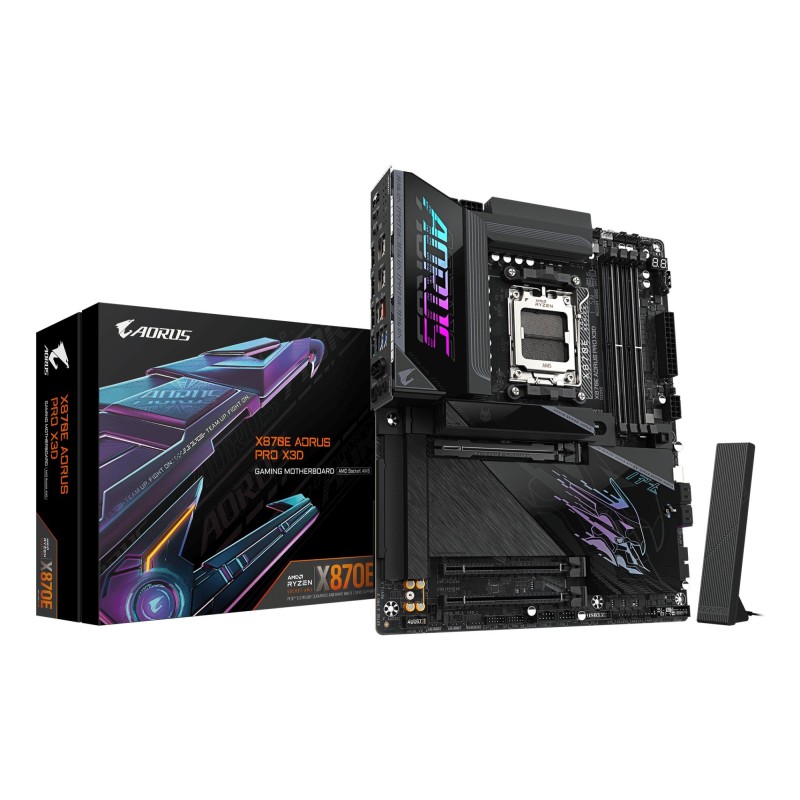

GIGABYTE X870E AORUS PRO X3D
X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 18+2+2 phases VRM solution
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
Спецификации
Код
X870E A PRO X
Срок доставки 2-5 рабочих дней.
5 шт.
Дополнительная информация
Сайт продавца
https://www.gigabyte.com/Motherboard/X870E-AORUS-PRO-X3D
Гарантия
36
Модель
GIGABYTE X870E AORUS PRO X3D
Код категории
MBA
Высота блока
0.09
Длина блока
0.31
Ширина блока
0.34
Units per Shipping Box
3
Unit Calculated Volume
0.0147 cubm
Unit Calculated Weight
4.27 kg
CnCode
84733020
Summary
GIGABYTE X870E AORUS PRO X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
305 mm
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
345 mm
Packaging data (Package depth)
294 mm
Packaging data (Package height)
80 mm
Packaging data (Package weight)
4250 g
Battery (Battery capacity)
220 mAh
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Other features (Weight)
3730 g
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.4
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour)
Black
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Packaging content (Screws included)
Yes
Logistics data (Country of origin)
Taiwan
Processor (Processor manufacturer)
AMD
Network (Top Wi-Fi standard)
Wi-Fi 7 (802.11be)
Features (Component for)
PC
Memory (Maximum internal memory)
256 GB
Memory (Memory channels)
Dual-channel
Network (WLAN controller model)
Qualcomm QCNCM865
Network (LAN controller)
Realtek RTL8126
Expansion slots (PCI Express x16 (Gen 5.x) slots)
1
Features (Cooling type)
Passive
Battery (Battery weight)
3 g
Processor (Compatible processor series)
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket)
Socket AM5
Processor (Supported processor sockets)
Socket AM5
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speed (max))
9000 MHz
Memory (Supported memory clock speeds)
4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
8
Storage controllers (Supported storage drive interfaces)
M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
6
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Line-in)
Yes
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
5
Rear panel I/O ports (WiFi-AP antenna jack)
2
Network (Ethernet interface type)
2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
AMD X870E
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
ATX
Features (Windows operating systems supported)
Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
4
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
512 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (Clear CMOS button)
Yes
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Rear panel I/O ports (DisplayPort version)
1.4
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (S/PDIF out port)
Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
2
Features (Audio chip)
Realtek ALC1220-VB
Features (Power source type)
ATX
Graphics (DirectX version)
12.0
Features (PC health monitoring)
CPU/Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
Non-ECC
Memory (Maximum internal memory per slot)
64 GB
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2304 pixels
Internal I/O (Number of CPU fan connectors)
2
Internal I/O (Number of RGB LED pin headers)
4
Internal I/O (Number of water pump connectors)
3
Expansion slots (1st M.2 highest PCI Express generation)
5.0
Expansion slots (1st M.2 largest key size)
25110
Expansion slots (2nd M.2 highest PCI Express generation)
5.0
Expansion slots (2nd M.2 largest key size)
22110
Expansion slots (3rd M.2 highest PCI Express generation)
4.0
Expansion slots (3rd M.2 largest key size)
22110
Expansion slots (PCI Express x16 (Gen 3.x) slots)
1
Internal I/O (Number of EPS power connectors (8-pin))
2
Packaging content (Antenna included)
Yes
Internal I/O (USB 3.2 Gen 2x2 connectors)
1
Internal I/O (Number of noise detection headers)
1
Internal I/O (Number of temperature sensor headers)
2
Rear panel I/O ports (Digital audio optical out)
1
Rear panel I/O ports (USB4 Gen 2x2 ports quantity)
2
Expansion slots (4th M.2 highest PCI Express generation)
4.0
Expansion slots (4th M.2 largest key size)
22110
Graphics (HDCP version)
2.3
Специальные референции
ean13
4719331878603
MPN
1453821
