Описание

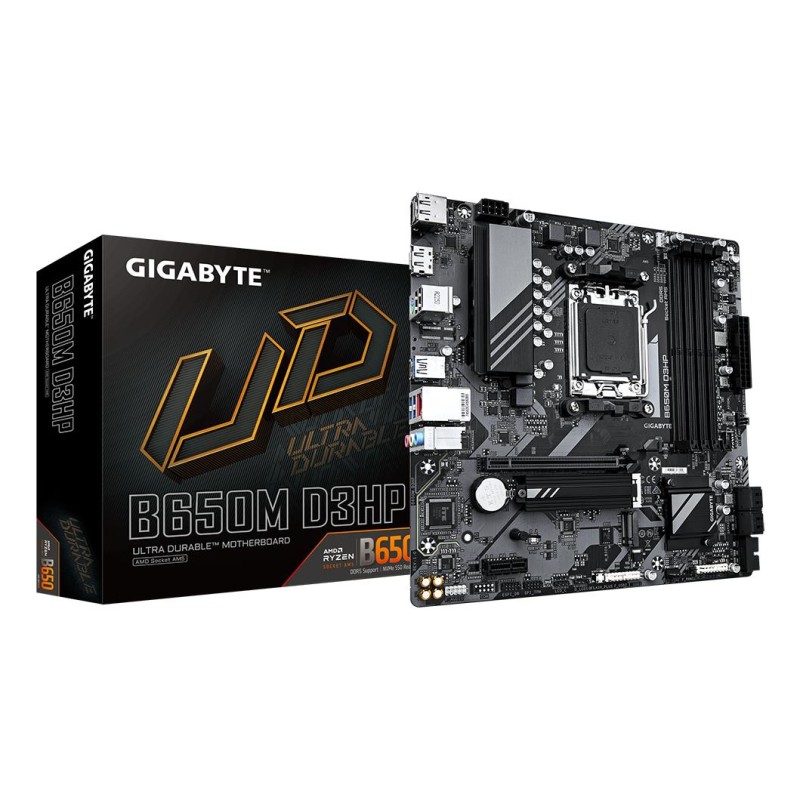

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors Unparalleled Performance：5+2+2 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector EZ-Latch：PCIe x16 Slot with Quick Release Design Fast Networks：2.5GbE LAN Extended Connectivity：2*DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Спецификации
Код
B650M D3HP 1.3
Срок доставки 2-5 рабочих дней.
13 шт.
Дополнительная информация
Сайт продавца
https://www.gigabyte.com/
Гарантия
36
Модель
B650M D3HP (rev. 1.3)
Код категории
MBA
Высота блока
0.05
Длина блока
0.27
Ширина блока
0.265
Units per Shipping Box
10
Unit Calculated Volume
0.004669 cubm
Unit Calculated Weight
1.06 kg
CnCode
84733020
Summary
GIGABYTE B650M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Seri
Mainboards for AMD CPUs | Processor (Compatible processor series)
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Mainboards for AMD CPUs | Processor (Processor manufacturer)
AMD
Mainboards for AMD CPUs | Processor (Processor socket)
Socket AM5
Mainboards for AMD CPUs | Memory (Maximum internal memory)
256 GB
Mainboards for AMD CPUs | Memory (Memory slots type)
DIMM
Mainboards for AMD CPUs | Memory (Number of memory slots)
4
Mainboards for AMD CPUs | Memory (Supported memory clock speeds)
4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz
Mainboards for AMD CPUs | Memory (Supported memory types)
DDR5-SDRAM
Mainboards for AMD CPUs | Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Mainboards for AMD CPUs | Internal I/O (USB 2.0 connectors)
2
Mainboards for AMD CPUs | Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Mainboards for AMD CPUs | Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Mainboards for AMD CPUs | Rear panel I/O ports (HDMI ports quantity)
1
Mainboards for AMD CPUs | Rear panel I/O ports (PS/2 ports quantity)
1
Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Mainboards for AMD CPUs | Network (Ethernet LAN)
Y
Mainboards for AMD CPUs | Network (LAN controller)
Realtek RTL8125
Mainboards for AMD CPUs | Features (Motherboard chipset)
AMD B650
Mainboards for AMD CPUs | Features (Motherboard chipset family)
AMD
Mainboards for AMD CPUs | Features (Motherboard form factor)
Micro ATX
Mainboards for AMD CPUs | BIOS (BIOS memory size)
256 Mbit
Mainboards for AMD CPUs | BIOS (BIOS type)
UEFI AMI
Mainboards for AMD CPUs | Processor (Supported processor sockets)
Socket AM5
Mainboards for AMD CPUs | Memory (ECC ?ompatibility)
non-ECC
Mainboards for AMD CPUs | Memory (Memory channels)
Dual-channel
Mainboards for AMD CPUs | Memory (Unbuffered memory)
Y
Mainboards for AMD CPUs | Storage controllers (Number of storage drives supported)
6
Mainboards for AMD CPUs | Storage controllers (RAID levels)
0/1/10
Mainboards for AMD CPUs | Storage controllers (RAID support)
Y
Mainboards for AMD CPUs | Storage controllers (Supported storage drive types)
HDD & SSD
Mainboards for AMD CPUs | Graphics (Parallel processing technology support)
Not supported
Mainboards for AMD CPUs | Internal I/O (12V power connector)
Y
Mainboards for AMD CPUs | Internal I/O (ATX Power connector (24-pin))
Y
Mainboards for AMD CPUs | Internal I/O (CPU fan connector)
Y
Mainboards for AMD CPUs | Internal I/O (EPS power connector (8-pin))
Y
Mainboards for AMD CPUs | Internal I/O (Front panel audio connector)
Y
Mainboards for AMD CPUs | Internal I/O (Number of chassis fan connectors)
2
Mainboards for AMD CPUs | Internal I/O (Number of SATA III connectors)
4
Mainboards for AMD CPUs | Internal I/O (RGB LED pin header)
Y
Mainboards for AMD CPUs | Internal I/O (TPM connector)
Y
Mainboards for AMD CPUs | Rear panel I/O ports (HDMI version)
2.1
Mainboards for AMD CPUs | Rear panel I/O ports (Headphone outputs)
1
Mainboards for AMD CPUs | Rear panel I/O ports (Microphone in)
Y
Mainboards for AMD CPUs | Network (Ethernet interface type)
2.5 Gigabit Ethernet
Mainboards for AMD CPUs | Network (Wi-Fi)
N
Mainboards for AMD CPUs | Features (Audio output channels)
7.1 channels
Mainboards for AMD CPUs | Features (Component for)
PC
Mainboards for AMD CPUs | Features (Product colour)
Brown
Mainboards for AMD CPUs | Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Mainboards for AMD CPUs | Expansion slots (Number of M.2 (M) slots)
2
Mainboards for AMD CPUs | Expansion slots (PCI Express x1 (Gen 3.x) slots)
1
Mainboards for AMD CPUs | Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
Mainboards for AMD CPUs | BIOS (Clear CMOS jumper)
Y
Mainboards for AMD CPUs | Weight & dimensions (Depth)
244 mm
Mainboards for AMD CPUs | Weight & dimensions (Height)
35 mm
Mainboards for AMD CPUs | Weight & dimensions (Width)
244 mm
Mainboards for AMD CPUs | Memory (Supported memory clock speed (max))
7600 MHz
Mainboards for AMD CPUs | Storage controllers (Number of HDDs supported)
4
Mainboards for AMD CPUs | Rear panel I/O ports (Line-in)
Y
Mainboards for AMD CPUs | Rear panel I/O ports (USB 2.0 ports quantity)
2
Mainboards for AMD CPUs | Features (Power source type)
ATX
Mainboards for AMD CPUs | Packaging data (Package depth)
265 mm
Mainboards for AMD CPUs | Packaging data (Package height)
54 mm
Mainboards for AMD CPUs | Packaging data (Package weight)
1020 g
Mainboards for AMD CPUs | Packaging data (Package width)
265 mm
Mainboards for AMD CPUs | Internal I/O (Front panel connector)
Y
Mainboards for AMD CPUs | Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
1
Mainboards for AMD CPUs | Rear panel I/O ports (DisplayPorts quantity)
2
Mainboards for AMD CPUs | Features (Audio chip)
Realtek ALC897
Mainboards for AMD CPUs | Expansion slots (1st M.2 highest PCI Express generation)
4.0
Mainboards for AMD CPUs | Expansion slots (1st M.2 largest key size)
2580
Mainboards for AMD CPUs | Expansion slots (2nd M.2 highest PCI Express generation)
4.0
Mainboards for AMD CPUs | Expansion slots (2nd M.2 largest key size)
22110
Mainboards for AMD CPUs | Packaging content (Screws included)
Y
Mainboards for AMD CPUs | Memory (Maximum internal memory per slot)
64 GB
Mainboards for AMD CPUs | Graphics (DirectX version)
12.0
Mainboards for AMD CPUs | Graphics (HDCP)
Y
Mainboards for AMD CPUs | Graphics (Maximum resolution)
4096 x 2160 pixels
Mainboards for AMD CPUs | Internal I/O (Number of CPU fan connectors)
1
Mainboards for AMD CPUs | Internal I/O (Number of EPS power connectors (8-pin))
1
Mainboards for AMD CPUs | Internal I/O (Number of RGB LED pin headers)
3
Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)
1
Mainboards for AMD CPUs | Features (PC health monitoring)
FAN/Temperature/Voltage
Mainboards for AMD CPUs | BIOS (ACPI version)
5.0
Mainboards for AMD CPUs | BIOS (Desktop Management Interface (DMI) version)
2.7
Mainboards for AMD CPUs | BIOS (System Management BIOS (SMBIOS) version)
2.7
Mainboards for AMD CPUs | Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Mainboards for AMD CPUs | Battery (Battery type)
CR2032
Mainboards for AMD CPUs | Battery (Battery weight)
3 g
Mainboards for AMD CPUs | Battery (Lithium weight per battery)
0.07 g
Mainboards for AMD CPUs | Battery (Number of battery cells)
1
Mainboards for AMD CPUs | Logistics data (Products per shipping (inner) case)
1 pc(s)
Mainboards for AMD CPUs | Packaging content (Batteries included)
Y
Mainboards for AMD CPUs | Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Mainboards for AMD CPUs | Technical details (Warranty period)
3 year(s)
Mainboards for AMD CPUs | Graphics (Discrete graphics support)
Y
Mainboards for AMD CPUs | Rear panel I/O ports (DisplayPort version)
1.4
Mainboards for AMD CPUs | Logistics data (Country of origin)
China
Специальные референции
ean13
4719331857851
MPN
1448860
