Mainboard|GIGABYTE|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|X870AELITEXICE

Дополнительная информация

Сайт продавца

https://www.gigabyte.com/

Гарантия

36

Модель

X870 AORUS ELITE X3D ICE

Код категории

MBA

Высота блока

0.27

Summary

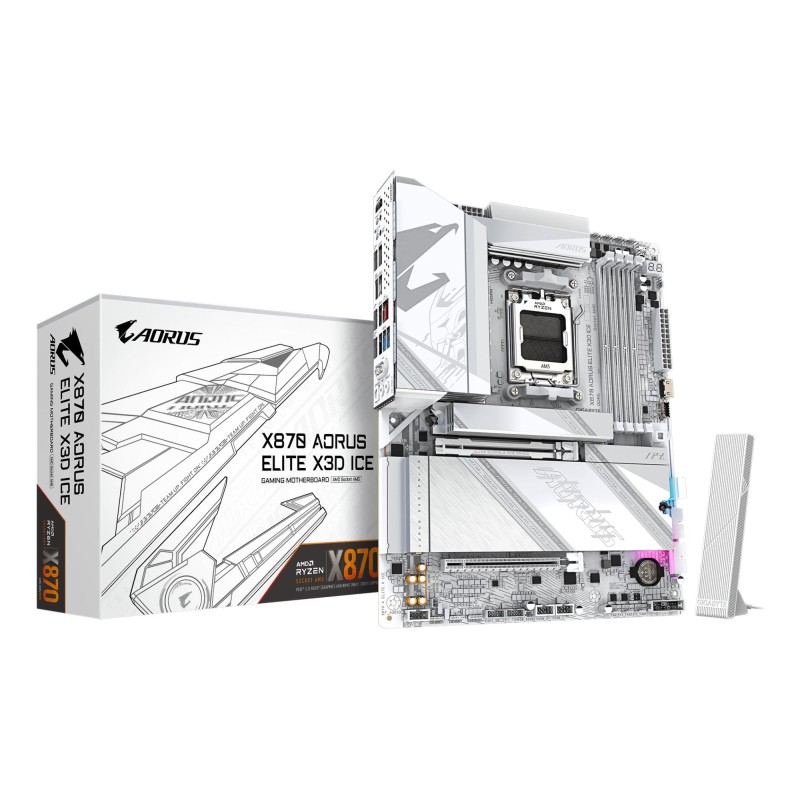

GIGABYTE X870 AORUS ELITE X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible pro

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

335 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

2708 g

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Network (Bluetooth version)

5.4

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Features (Product colour)

White

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Logistics data (Country of origin)

China

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Features (Component for)

PC

Network (WLAN controller model)

Qualcomm QCNCM865

Network (LAN controller)

Realtek RTL8126

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Cooling type)

Passive

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Supported memory clock speeds)

5600/6000/6800/7000/7600/7800/8000/8200/8400/8800/9000 MHz

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,PCI Express 5.0,SATA III

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

6

Internal I/O (RGB LED pin header)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

1

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

5 Gigabit Ethernet/Fast Ethernet

Features (Motherboard chipset)

AMD X870

Features (Motherboard chipset family)

AMD

Features (Windows operating systems supported)

Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

4

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

512 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS button)

Yes

Storage controllers (RAID levels)

0/1/5

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Features (Power source type)

ATX

Graphics (DirectX version)

12.0

Features (PC health monitoring)

CPU/Fan/Temperature/Voltage

BIOS (Clear CMOS jumper)

Yes

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2304 pixels

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of water pump connectors)

3

Expansion slots (1st M.2 largest key size)

25110

Expansion slots (2nd M.2 highest PCI Express generation)

5.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Packaging content (Antenna included)

Yes

Internal I/O (USB 3.2 Gen 2x2 connectors)

1

Internal I/O (Number of noise detection headers)

1

Internal I/O (Number of temperature sensor headers)

2

Expansion slots (4th M.2 highest PCI Express generation)

4.0

Expansion slots (4th M.2 largest key size)

22110

Специальные референции

ean13

4719331876678

MPN

1449519
