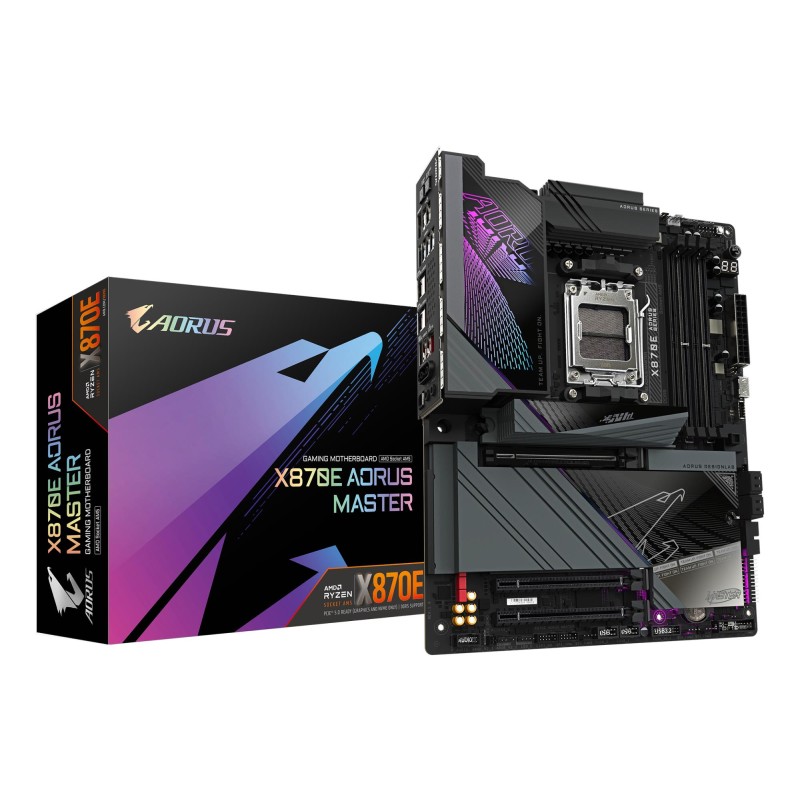

Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16

Дополнительная информация

Сайт продавца

https://www.gigabyte.com/

Гарантия

36

Модель

X870E AORUS MASTER

Код категории

MBA

Высота блока

0.08

Длина блока

0.35

Ширина блока

0.295

Units per Shipping Box

4

Unit Calculated Volume

0.01203 cubm

Unit Calculated Weight

3 kg

CnCode

84733020

Summary

GIGABYTE X870E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8600MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

345 mm

Packaging data (Package depth)

294 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

2970 g

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Other features (Weight)

2540 g

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

Wi-Fi 7 (802.11be)

Features (Product colour)

Black

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

AMD

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Features (Component for)

PC

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Graphics (On-board graphics card)

No

Network (WLAN controller model)

Qualcomm QCNCM865

Network (LAN controller)

Realtek RTL8126

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Battery (Battery weight)

3 g

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

8600 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8200/8400/8600 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

8

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

6

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

2

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

4

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD X870

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

4

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS button)

Yes

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Features (Audio chip)

Realtek ALC1220

Processor (Maximum internal memory supported by processor)

256 GB

Memory (Supported memory module capacities)

12GB/1GB/24GB/2GB/32GB/4GB/8GB

Graphics (DirectX version)

12.0

Features (PC health monitoring)

Fan/Temperature/Voltage

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of RGB LED pin headers)

5

Internal I/O (Number of water pump connectors)

2

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

25110

Expansion slots (2nd M.2 highest PCI Express generation)

5.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (3rd M.2 highest PCI Express generation)

5.0

Expansion slots (3rd M.2 largest key size)

22110

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Internal I/O (Number of EPS power connectors (8-pin))

2

Packaging content (Antenna included)

Yes

Internal I/O (USB 3.2 Gen 2x2 connectors)

1

Rear panel I/O ports (USB4 Gen 2x2 ports quantity)

2

Expansion slots (4th M.2 highest PCI Express generation)

4.0

Expansion slots (4th M.2 largest key size)

22110

Expansion slots (PCI Express x4 slots)

2

Специальные референции

ean13

4719331864354

MPN

1424631
