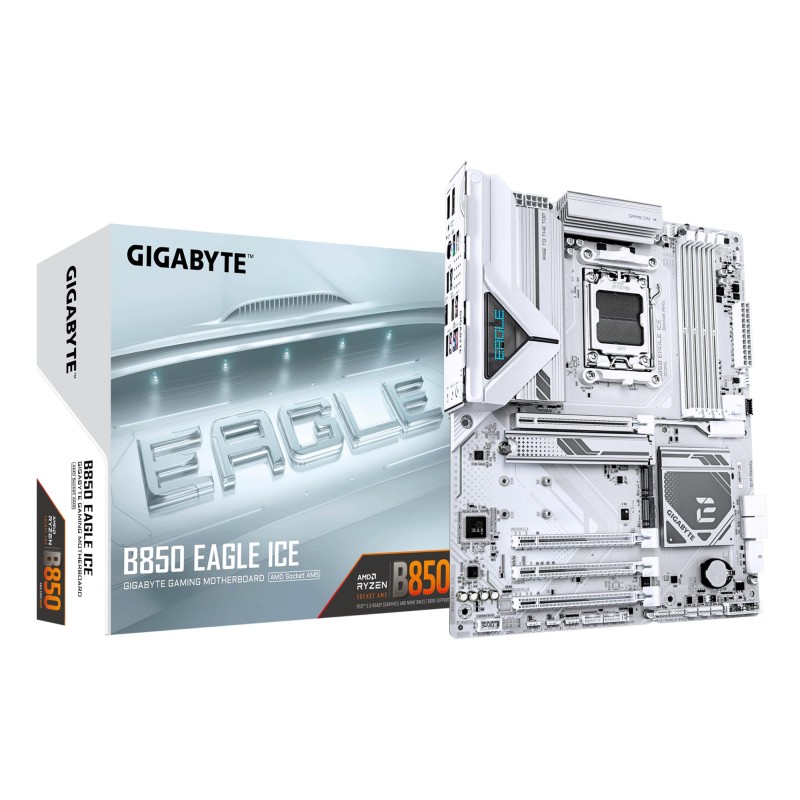

Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x

Дополнительная информация

Сайт продавца

https://www.gigabyte.com/

Гарантия

36

Модель

B850 EAGLE ICE

Код категории

MBA

Высота блока

0.081

Длина блока

0.337

Ширина блока

0.27

Units per Shipping Box

8

Unit Calculated Volume

0.01007 cubm

Unit Calculated Weight

1.87 kg

CnCode

84733020

Summary

GIGABYTE B850 EAGLE ICE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (O.C), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

335 mm

Packaging data (Package depth)

270 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

1882 g

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Other features (Weight)

1650 g

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Features (Product colour)

White

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

AMD

Features (Component for)

PC

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Network (LAN controller)

Realtek RTL8125

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

8200 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

7

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,PCI Express 5.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD B850

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

3

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Features (Audio chip)

Realtek ALC897

Features (Power source type)

ATX

Graphics (DirectX version)

12.0

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of water pump connectors)

2

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)

1

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

22110

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Expansion slots (3rd M.2 largest key size)

22110

Expansion slots (PCI Express x16 (Gen 3.x) slots)

2

Internal I/O (Number of EPS power connectors (8-pin))

1

Internal I/O (Peripheral (Molex) power connectors (4-pin))

1

Специальные референции

ean13

4719331871680

MPN

1439962
