Описание
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Digital twin 10+3+1 phases VRM solution Dual Channel DDR44*DIMMs with AMD EXPO Memory Module Support EZ-Latch: PCIe slots with Quick Release Design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal: VRM Thermal Armor Advanced Fast Networking: GbE LAN Extended Connectivity: HDMI, Displayport PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Спецификации
Код
B550 EAGLE 1.0
Срок доставки 2-5 рабочих дней.
1 Шт.
Дополнительная информация
Сайт продавца
https://www.gigabyte.com/
Гарантия
36
Модель
B550 EAGLE
Код категории
MBA
Высота блока
0.08
Длина блока
0.335
Ширина блока
0.275
Units per Shipping Box
8
Unit Calculated Volume
0.01011 cubm
Unit Calculated Weight
1.47 kg
Summary

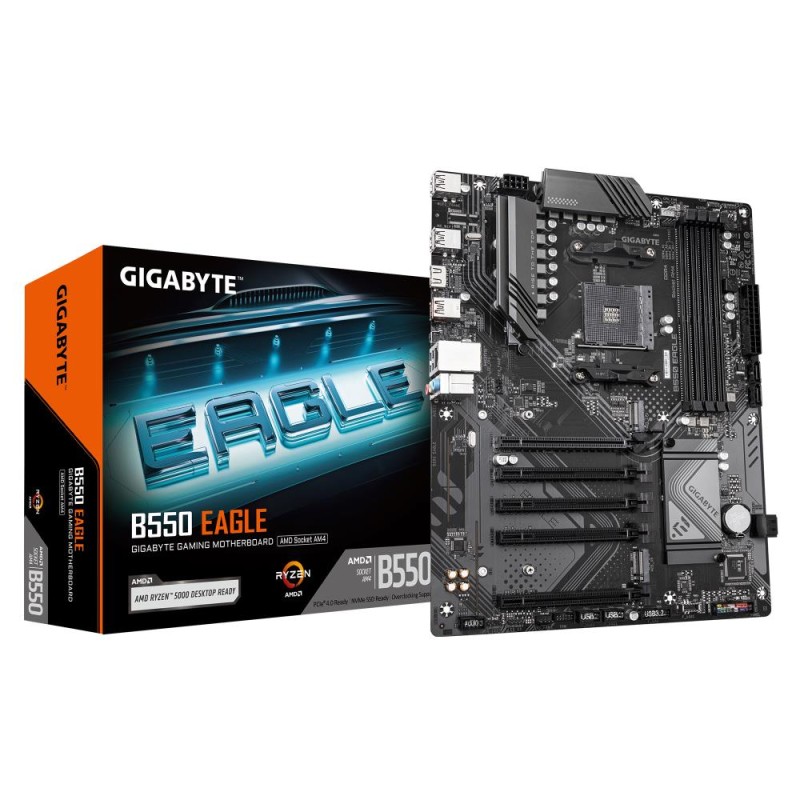

GIGABYTE B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen
Mainboards for AMD CPUs | Processor (Compatible processor series)
AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Mainboards for AMD CPUs | Processor (Processor manufacturer)
AMD
Mainboards for AMD CPUs | Processor (Processor socket)
Socket AM4
Mainboards for AMD CPUs | Memory (Maximum internal memory)
128 GB
Mainboards for AMD CPUs | Memory (Memory slots type)
DIMM
Mainboards for AMD CPUs | Memory (Number of memory slots)
4
Mainboards for AMD CPUs | Memory (Supported memory clock speeds)
2133/2400/2667/2933/3200 MHz
Mainboards for AMD CPUs | Memory (Supported memory types)
DDR4-SDRAM
Mainboards for AMD CPUs | Storage controllers (Supported storage drive interfaces)
M.2,PCI Express 4.0,SATA III
Mainboards for AMD CPUs | Internal I/O (USB 2.0 connectors)
2
Mainboards for AMD CPUs | Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Mainboards for AMD CPUs | Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Mainboards for AMD CPUs | Rear panel I/O ports (HDMI ports quantity)
1
Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
2
Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
1
Mainboards for AMD CPUs | Network (Ethernet LAN)
Y
Mainboards for AMD CPUs | Network (LAN controller)
Realtek RTL8111H
Mainboards for AMD CPUs | Features (Motherboard chipset)
AMD B550
Mainboards for AMD CPUs | Features (Motherboard chipset family)
AMD
Mainboards for AMD CPUs | Features (Motherboard form factor)
ATX
Mainboards for AMD CPUs | BIOS (BIOS memory size)
128 Mbit
Mainboards for AMD CPUs | BIOS (BIOS type)
UEFI AMI
Mainboards for AMD CPUs | Processor (Supported processor sockets)
Socket AM4
Mainboards for AMD CPUs | Memory (ECC ?ompatibility)
ECC & non-ECC
Mainboards for AMD CPUs | Memory (Memory channels)
Dual-channel
Mainboards for AMD CPUs | Memory (Unbuffered memory)
Y
Mainboards for AMD CPUs | Storage controllers (Number of storage drives supported)
6
Mainboards for AMD CPUs | Storage controllers (RAID levels)
0/1/10
Mainboards for AMD CPUs | Storage controllers (RAID support)
Y
Mainboards for AMD CPUs | Storage controllers (Supported storage drive types)
HDD & SSD
Mainboards for AMD CPUs | Graphics (Parallel processing technology support)
Not supported
Mainboards for AMD CPUs | Internal I/O (ATX Power connector (24-pin))
Y
Mainboards for AMD CPUs | Internal I/O (CPU fan connector)
Y
Mainboards for AMD CPUs | Internal I/O (EPS power connector (8-pin))
Y
Mainboards for AMD CPUs | Internal I/O (Front panel audio connector)
Y
Mainboards for AMD CPUs | Internal I/O (Number of chassis fan connectors)
3
Mainboards for AMD CPUs | Internal I/O (Number of SATA III connectors)
4
Mainboards for AMD CPUs | Internal I/O (RGB LED pin header)
Y
Mainboards for AMD CPUs | Internal I/O (TPM connector)
Y
Mainboards for AMD CPUs | Rear panel I/O ports (HDMI version)
2.1
Mainboards for AMD CPUs | Rear panel I/O ports (Headphone outputs)
1
Mainboards for AMD CPUs | Rear panel I/O ports (Microphone in)
Y
Mainboards for AMD CPUs | Network (Ethernet interface type)
Gigabit Ethernet
Mainboards for AMD CPUs | Network (Wi-Fi)
N
Mainboards for AMD CPUs | Features (Audio output channels)
7.1 channels
Mainboards for AMD CPUs | Features (Component for)
PC
Mainboards for AMD CPUs | Features (Product colour)
Dark brown
Mainboards for AMD CPUs | Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Mainboards for AMD CPUs | Expansion slots (Number of M.2 (M) slots)
2
Mainboards for AMD CPUs | Expansion slots (PCI Express x1 (Gen 3.x) slots)
4
Mainboards for AMD CPUs | Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
Mainboards for AMD CPUs | BIOS (Clear CMOS jumper)
Y
Mainboards for AMD CPUs | Weight & dimensions (Depth)
244 mm
Mainboards for AMD CPUs | Weight & dimensions (Height)
35 mm
Mainboards for AMD CPUs | Weight & dimensions (Width)
305 mm
Mainboards for AMD CPUs | Other features (Weight)
1250 g
Mainboards for AMD CPUs | Memory (Supported memory clock speed (max))
3200 MHz
Mainboards for AMD CPUs | Storage controllers (Number of HDDs supported)
4
Mainboards for AMD CPUs | Rear panel I/O ports (Line-in)
Y
Mainboards for AMD CPUs | Rear panel I/O ports (USB 2.0 ports quantity)
4
Mainboards for AMD CPUs | Features (Cooling type)
Passive
Mainboards for AMD CPUs | Features (Power source type)
ATX
Mainboards for AMD CPUs | Packaging data (Package depth)
270 mm
Mainboards for AMD CPUs | Packaging data (Package height)
80 mm
Mainboards for AMD CPUs | Packaging data (Package weight)
1482.5 g
Mainboards for AMD CPUs | Packaging data (Package width)
335 mm
Mainboards for AMD CPUs | Internal I/O (Front panel connector)
Y
Mainboards for AMD CPUs | Features (Audio chip)
Realtek ALC897
Mainboards for AMD CPUs | Expansion slots (1st M.2 highest PCI Express generation)
4.0
Mainboards for AMD CPUs | Expansion slots (1st M.2 largest key size)
22110
Mainboards for AMD CPUs | Expansion slots (2nd M.2 highest PCI Express generation)
3.0
Mainboards for AMD CPUs | Expansion slots (2nd M.2 largest key size)
22110
Mainboards for AMD CPUs | Packaging content (Screws included)
Y
Mainboards for AMD CPUs | Memory (Maximum internal memory per slot)
32 GB
Mainboards for AMD CPUs | Graphics (DirectX version)
12.0
Mainboards for AMD CPUs | Graphics (HDCP)
Y
Mainboards for AMD CPUs | Graphics (Maximum resolution)
4096 x 2160 pixels
Mainboards for AMD CPUs | Internal I/O (Number of CPU fan connectors)
2
Mainboards for AMD CPUs | Internal I/O (Number of EPS power connectors (8-pin))
1
Mainboards for AMD CPUs | Internal I/O (Number of RGB LED pin headers)
5
Mainboards for AMD CPUs | Internal I/O (Number of water pump connectors)
1
Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)
1
Mainboards for AMD CPUs | Features (PC health monitoring)
FAN/Temperature/Voltage/Water cooling
Mainboards for AMD CPUs | BIOS (ACPI version)
5.0
Mainboards for AMD CPUs | BIOS (Desktop Management Interface (DMI) version)
2.7
Mainboards for AMD CPUs | BIOS (System Management BIOS (SMBIOS) version)
2.7
Mainboards for AMD CPUs | Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Mainboards for AMD CPUs | Battery (Battery type)
CR2032
Mainboards for AMD CPUs | Battery (Battery weight)
3 g
Mainboards for AMD CPUs | Battery (Lithium weight per battery)
0.07 g
Mainboards for AMD CPUs | Battery (Number of battery cells)
1
Mainboards for AMD CPUs | Logistics data (Products per shipping (inner) case)
1 pc(s)
Mainboards for AMD CPUs | Packaging content (Batteries included)
Y
Mainboards for AMD CPUs | Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Mainboards for AMD CPUs | Technical details (Warranty period)
3 year(s)
Специальные референции
ean13
4719331868208
MPN
1435976
